Komatsu PC1250-8 Excavator Flywheel Housing, (#512351-) Parts
Komatsu PC1250-8 flywheel housing, (#512351-) parts for machine serial 30158-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D170E-5C SN 511700-UP (For PC1250-8/PC1250LC-8/PC1250SP-8) / Engine Cylinder Block And Its Related Parts / Flywheel Housing / Flywheel Housing, (#512351-).
Checking current purchase options...

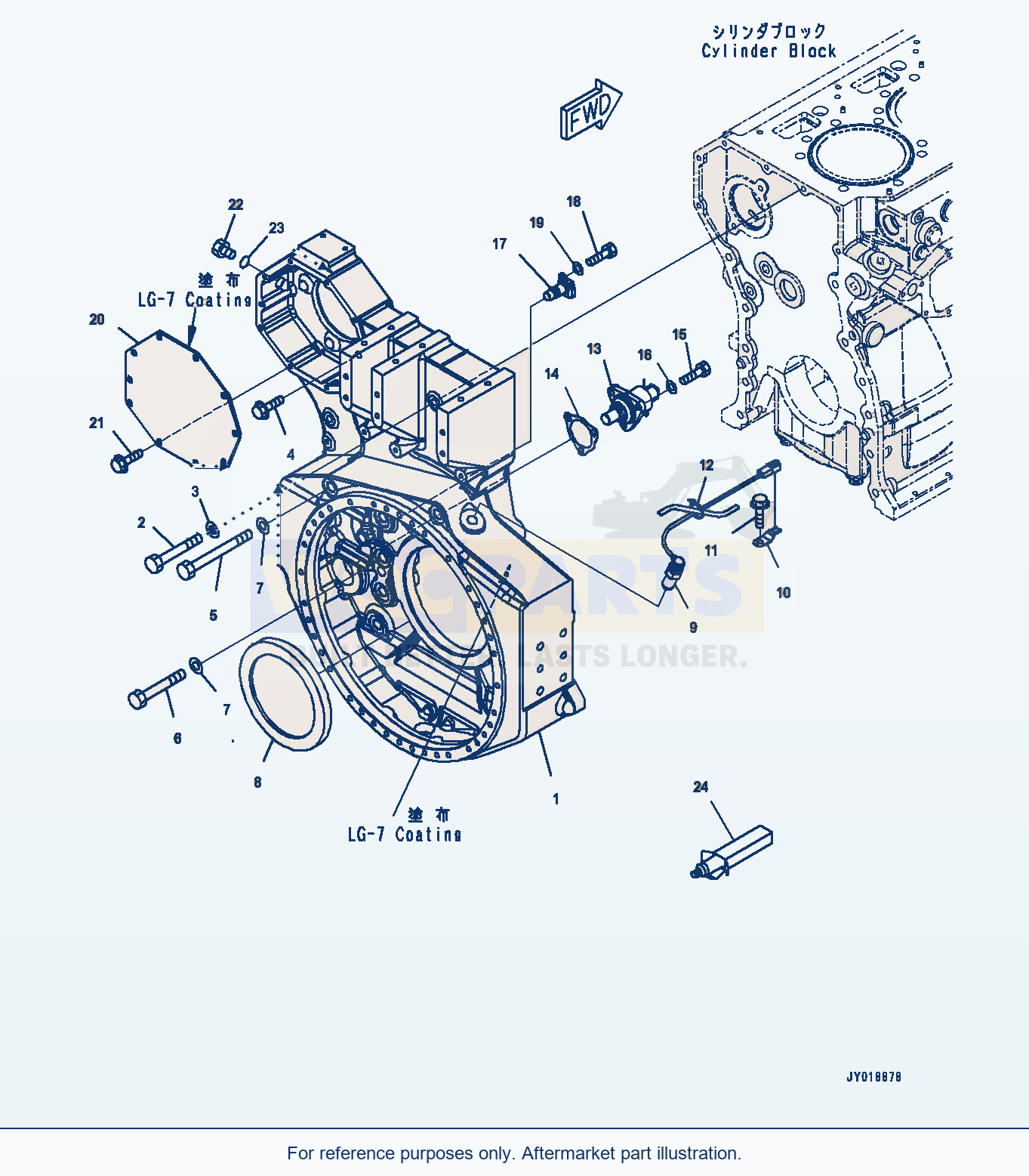

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | Housing, FlywheelSN: 511700-UP | 1 | Request quote | |||
| 2 | BoltSN: 511700-UP | 5 | Request quote | |||
| 3 | WasherSN: 511700-UP | 5 | View product ↗ | |||
| 4 | BoltSN: 511700-UP | 2 | Request quote | |||
| 5 | BoltSN: 511700-UP | 2 | Request quote | |||
| 6 | BoltSN: 511700-UP | 9 | Request quote | |||
| 7 | WasherSN: 511700-UP | 11 | View product ↗ | |||
| 8 | Seal,RearSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 9 | Sensor, Magnetic Pick-UpSN: 511700-UP | 1 | View product ↗ | |||
| 10 | ClipSN: 511700-UP | 1 | Request quote | |||
| 11 | BoltSN: 511700-UP | 1 | Request quote | |||
| 12 | BandSN: 511700-UP | 1 | Request quote | |||
| 13 | Gear AssemblySN: 511700-UP | 1 | Request quote | |||
| 14 | GasketSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 15 | BoltSN: 511700-UP | 3 | Request quote | |||
| 16 | WasherSN: 511700-UP | 3 | View product ↗ | |||
| 17 | Sensor AssemblySN: 511710-UP | 1 | View product ↗ | |||
| 17 | O-ringSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 18 | BoltSN: 512351-UP | 1 | Request quote | |||
| 19 | WasherSN: 512351-UP | 1 | View product ↗ | |||
| 20 | PlateSN: 511700-UP | 1 | Request quote | |||
| 21 | BoltSN: 511700-UP | 10 | View product ↗ | |||
| 22 | PlugSN: 511700-UP | 1 | View product ↗ | |||
| 23 | O-ringSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 24 | Liquid gasket, LG-7, 150GSN: 511700-UP, KIT-FLAG: S | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Case
Shaft
Gear
Spring
Pin, Snap
Seal, Dust
Sensor
Using Komatsu PC1250-8 Excavator Flywheel Housing, (#512351-) Parts
Use the Komatsu PC1250-8 Excavator Flywheel Housing, (#512351-) Parts listing to identify aftermarket replacement parts within the engine cylinder block and its related parts section. This excavator application is listed for machine serial 30158-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including housing, flywheel (reference 6245-21-4140), sensor, magnetic pick-up (reference 7861-93-2330) and clip (reference 08193-20010). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D170E-5C (engine serial 511700-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
