Komatsu PC1250-8 Excavator Fuel Filter, Priming Pump (#512373-) Parts
Komatsu PC1250-8 fuel filter, priming pump (#512373-) parts for machine serial 30158-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D170E-5C SN 511700-UP (For PC1250-8/PC1250LC-8/PC1250SP-8) / Engine Fuel System / Fuel Filter / Fuel Filter, Priming Pump (#512373-).
Checking current purchase options...

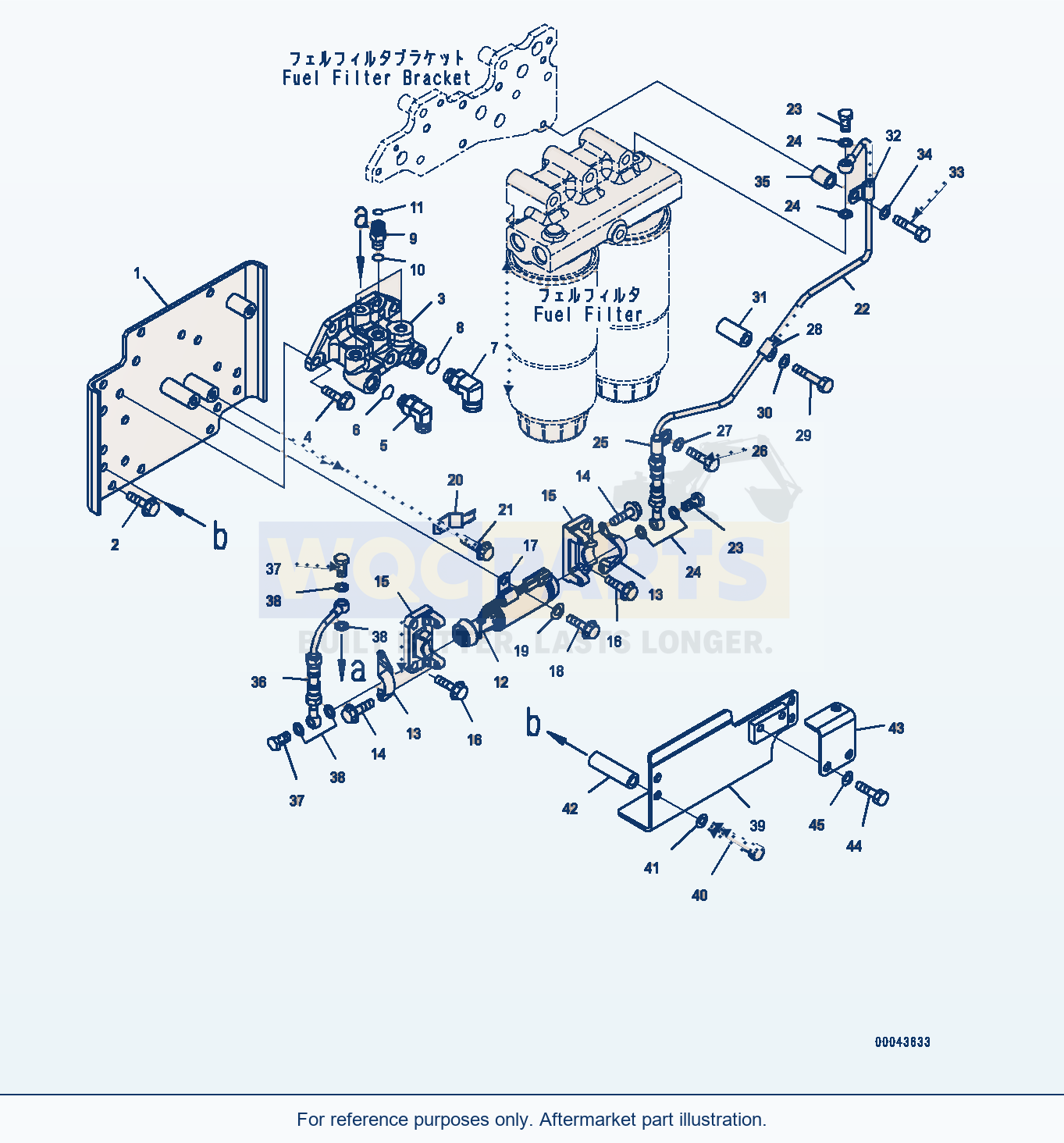

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 45 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BracketSN: 512373-UP | 1 | Request quote | |||
| 2 | BoltSN: 512373-UP | 5 | View product ↗ | |||
| 3 | BlockSN: 512373-UP | 1 | Request quote | |||
| 4 | BoltSN: 512373-UP | 4 | View product ↗ | |||
| 5 | ElbowSN: 512373-UP | 1 | Request quote | |||
| 6 | O-ringSN: 512373-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 7 | ElbowSN: 512373-UP | 1 | Request quote | |||
| 8 | O-ringSN: 512373-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 9 | NippleSN: 512373-UP | 3 | Request quote | |||
| 10 | O-ringSN: 512373-UP, KIT-FLAG: S | 3 | Request quote | |||
| 11 | O-ringSN: 512373-UP, KIT-FLAG: S | 3 | View product ↗ | |||
| 12 | Pump Assembly, PrimingSN: 512373-UP | 1 | Request quote | |||
| 13 | BracketSN: 512373-UP | 2 | Request quote | |||
| 14 | BoltSN: 512373-UP | 4 | Request quote | |||
| 15 | BlockSN: 512373-UP | 2 | Request quote | |||
| 16 | BoltSN: 512373-UP | 4 | View product ↗ | |||
| 17 | ClipSN: 512373-UP | 1 | Request quote | |||
| 18 | BoltSN: 512373-UP | 1 | Request quote | |||
| 19 | WasherSN: 512373-UP | 1 | View product ↗ | |||
| 20 | ClipSN: 512373-UP | 1 | Request quote | |||
| 21 | BoltSN: 512373-UP | 1 | Request quote | |||
| 22 | HoseSN: 512373-UP | 1 | Request quote | |||
| 23 | Bolt, JointSN: 512373-UP | 2 | View product ↗ | |||
| 24 | Seal, WasherSN: 512373-UP, KIT-FLAG: S | 4 | View product ↗ | |||
| 25 | ClipSN: 512373-UP | 1 | Request quote | |||
| 26 | BoltSN: 512373-UP | 1 | Request quote | |||
| 27 | WasherSN: 512373-UP | 1 | View product ↗ | |||
| 28 | ClipSN: 512373-UP | 1 | Request quote | |||
| 29 | BoltSN: 512373-UP | 1 | Request quote | |||
| 30 | WasherSN: 512373-UP | 1 | View product ↗ | |||
| 31 | SpacerSN: 512373-UP | 1 | Request quote | |||
| 32 | ClipSN: 512373-UP | 1 | Request quote | |||
| 33 | BoltSN: 512373-UP | 1 | Request quote | |||
| 34 | WasherSN: 512373-UP | 1 | View product ↗ | |||
| 35 | SpacerSN: 512373-UP | 1 | View product ↗ | |||
| 36 | HoseSN: 512373-UP | 1 | Request quote | |||
| 37 | Bolt, JointSN: 512373-UP | 2 | View product ↗ | |||
| 38 | Seal, WasherSN: 512373-UP, KIT-FLAG: S | 4 | View product ↗ | |||
| 39 | CoverSN: 512373-UP | 1 | Request quote | |||
| 40 | BoltSN: 512373-UP | 4 | Request quote | |||
| 41 | WasherSN: 512373-UP | 4 | View product ↗ | |||
| 42 | SpacerSN: 512373-UP | 4 | Request quote | |||
| 43 | BracketSN: 512373-UP | 1 | Request quote | |||
| 44 | BoltSN: 512373-UP | 2 | Request quote | |||
| 45 | WasherSN: 512373-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC1250-8 Excavator Fuel Filter, Priming Pump (#512373-) Parts
Use the Komatsu PC1250-8 Excavator Fuel Filter, Priming Pump (#512373-) Parts listing to identify aftermarket replacement parts within the engine fuel system section. This excavator application is listed for machine serial 30158-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 45 listed part occurrences, including bracket (reference 6245-71-5510), block (reference 6245-71-5650) and elbow (reference 02782-10420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D170E-5C (engine serial 511700-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
