Komatsu PC1250-8 Engine Oil Filter, Inner Parts (#511700-) Parts
Komatsu PC1250-8 engine oil filter, inner parts (#511700-) parts for machine serial 30158-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D170E-5C SN 511700-UP (For PC1250-8/PC1250LC-8/PC1250SP-8) / Engine Lubrication System / Engine Oil Filter / Engine Oil Filter, Inner Parts (#511700-).
Checking current purchase options...

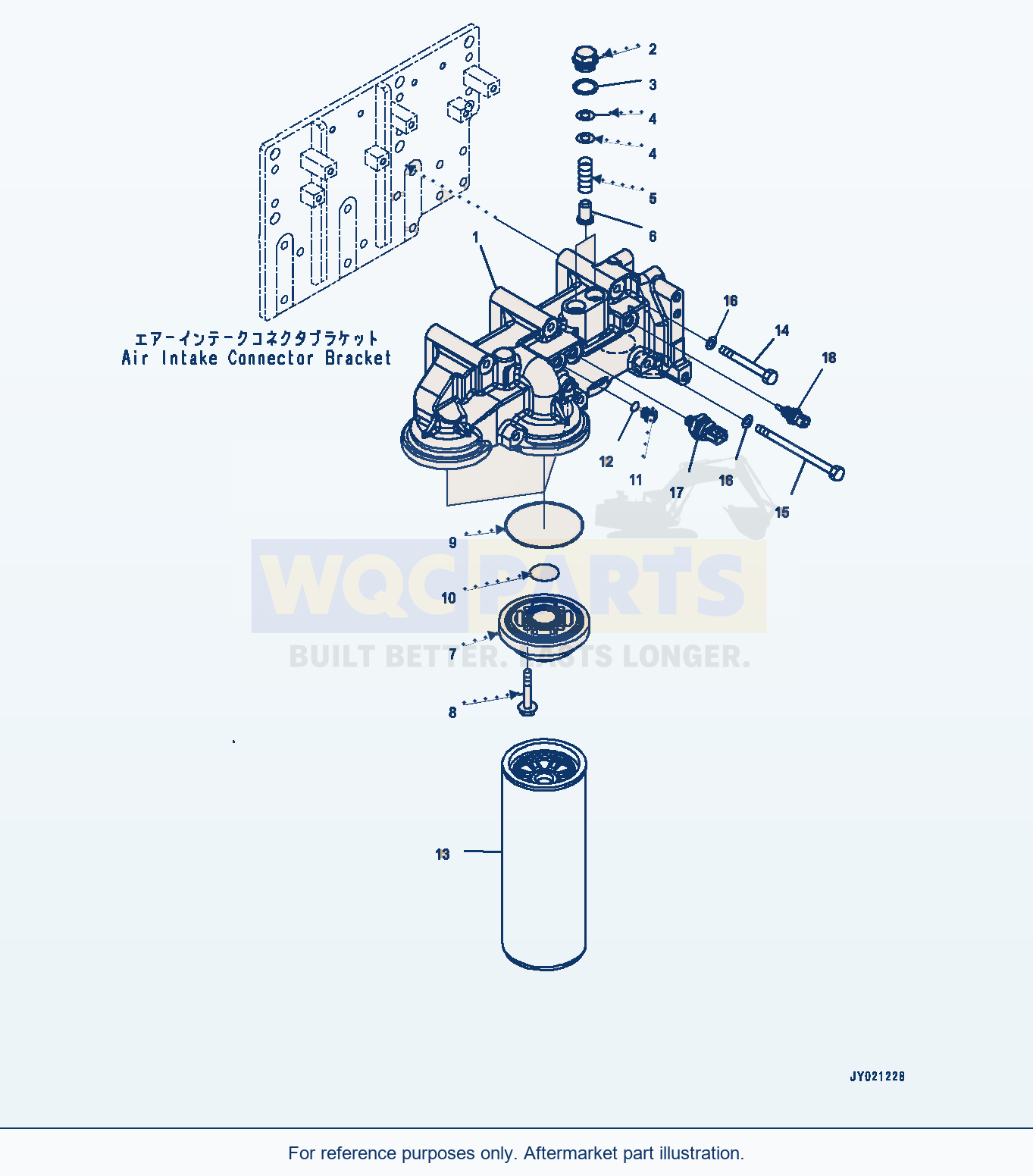

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | Head AssemblySN: 511700-UP | 1 | Request quote | |||
| 1 | Head, Oil FilterSN: 511700-UP | 1 | Request quote | |||
| 2 | CapSN: 511700-UP | 2 | Request quote | |||
| 3 | PackingSN: 511700-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 4 | WasherSN: 511700-UP | 4 | Request quote | |||
| 5 | SpringSN: 511700-UP | 2 | Request quote | |||
| 6 | ValveSN: 511700-UP | 2 | Request quote | |||
| 7 | AdapterSN: 511700-UP | 3 | Request quote | |||
| 8 | BoltSN: 511700-UP | 12 | Request quote | |||
| 9 | O-ringSN: 511700-UP, KIT-FLAG: S | 3 | View product ↗ | |||
| 10 | O-ringSN: 511700-UP, KIT-FLAG: S | 3 | Request quote | |||
| 11 | PlugSN: 511700-UP | 1 | Request quote | |||
| 12 | O-ringSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 13 | Cartridge, OilSN: 511700-UP | 3 | View product ↗ | |||
| 14 | BoltSN: 511700-UP | 3 | Request quote | |||
| 15 | BoltSN: 511700-UP | 3 | Request quote | |||
| 16 | WasherSN: 511700-UP | 6 | View product ↗ | |||
| 17 | Sensor Assembly, Oil PressureSN: 511700-UP | 1 | View product ↗ | |||
| 17 | O-ringSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 18 | Sensor AssemblySN: 511700-UP | 1 | View product ↗ | |||
| 18 | SealSN: 511700-UP, KIT-FLAG: S | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC1250-8 Engine Oil Filter, Inner Parts (#511700-) Parts
Use the Komatsu PC1250-8 Engine Oil Filter, Inner Parts (#511700-) Parts listing to identify aftermarket replacement parts within the engine lubrication system section. This excavator application is listed for machine serial 30158-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including head assembly (reference 6245-51-5101), head, oil filter (reference 6245-51-5110) and cap (reference 6162-55-5210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D170E-5C (engine serial 511700-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For lubrication-system components, match the engine application and the notes attached to the part number. This catalog identifies parts; it does not replace the service manual for lubricant selection or maintenance procedures.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
