Komatsu PC1250LC-8 Piston And Connecting Rod (#511700-) Parts
Komatsu PC1250LC-8 piston and connecting rod (#511700-) parts for machine serial 30158-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D170E-5C SN 511700-UP (For PC1250-8/PC1250LC-8/PC1250SP-8) / Engine Cylinder Block And Its Related Parts / Piston And Connecting Rod / Piston And Connecting Rod (#511700-).
Checking current purchase options...

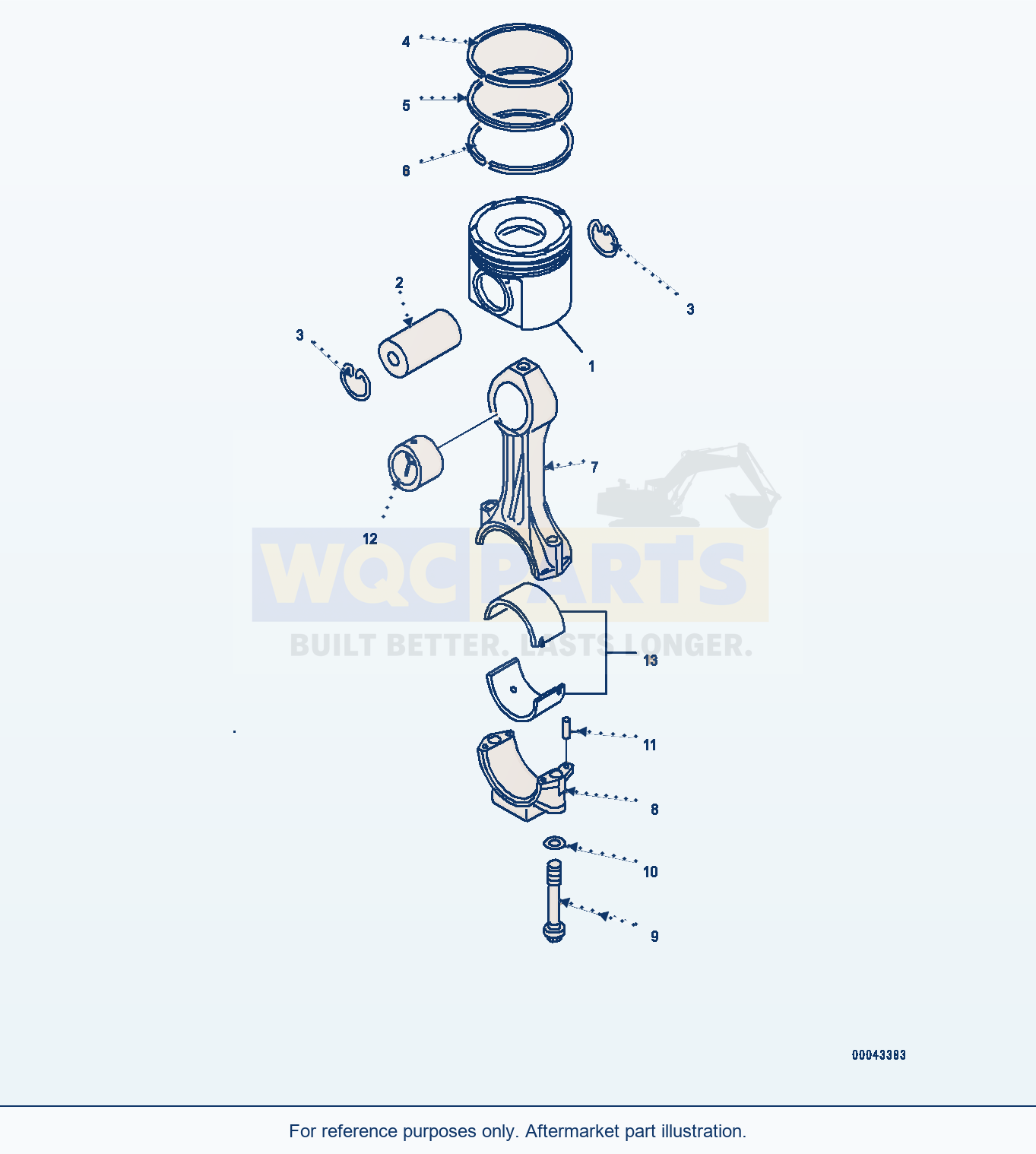

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 14 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PistonSN: 511700-UP | 6 | View product ↗ | |||
| 2 | Pin, PistonSN: 511700-UP | 6 | View product ↗ | |||
| 3 | Ring, SnapSN: 511700-UP | 12 | View product ↗ | |||
| 3 | Ring Assembly, Piston, (Per Cylinder)SN: 511700-UP | 6 | View product ↗ | |||
| 7 | Connecting Rod AssemblySN: 511700-UP | 6 | Request quote | |||
| 9 | BoltSN: 511700-UP | 2 | View product ↗ | |||
| 10 | WasherSN: 511700-UP | 2 | Request quote | |||
| 11 | Pin, DowelSN: 511700-UP | 4 | Request quote | |||
| 12 | BushingSN: 511700-UP | 1 | View product ↗ | |||
| 13 | Metal Assembly, StandardSN: 511700-UP | 6 | View product ↗ | |||
| 13 | Metal Assembly, Undersize 0.25mmSN: 511700-UP | 6 | View product ↗ | |||
| 13 | Metal Assembly, Undersize 0.50mmSN: 511700-UP | 6 | View product ↗ | |||
| 13 | Metal Assembly, Undersize 0.75mmSN: 511700-UP | 6 | View product ↗ | |||
| 13 | Metal Assembly, Undersize 1.00mmSN: 511700-UP | 6 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Ring,Top
Ring, Second
Ring, Oil
Rod, Connecting
Cap, Connecting Rod
Metal, Standard
Metal, Undersize 0.25mm
Metal, Undersize 0.50mm
Metal, Undersize 0.75mm
Metal, Undersize 1.00mm
Using Komatsu PC1250LC-8 Piston And Connecting Rod (#511700-) Parts
Use the Komatsu PC1250LC-8 Piston And Connecting Rod (#511700-) Parts listing to identify aftermarket replacement parts within the engine cylinder block and its related parts section. This excavator application is listed for machine serial 30158-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 14 listed part occurrences, including piston (reference 6245-31-2110), pin, piston (reference 6248-31-2410) and ring, snap (reference 6162-33-2420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D170E-5C (engine serial 511700-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
