Komatsu PC1250LC-8 Excavator Handrail, Step (#30158-30245) Parts
Komatsu PC1250LC-8 handrail, step (#30158-30245) parts for machine serial 30158-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Guards And Covers / Handrail / Handrail, Step (#30158-30245).
Checking current purchase options...

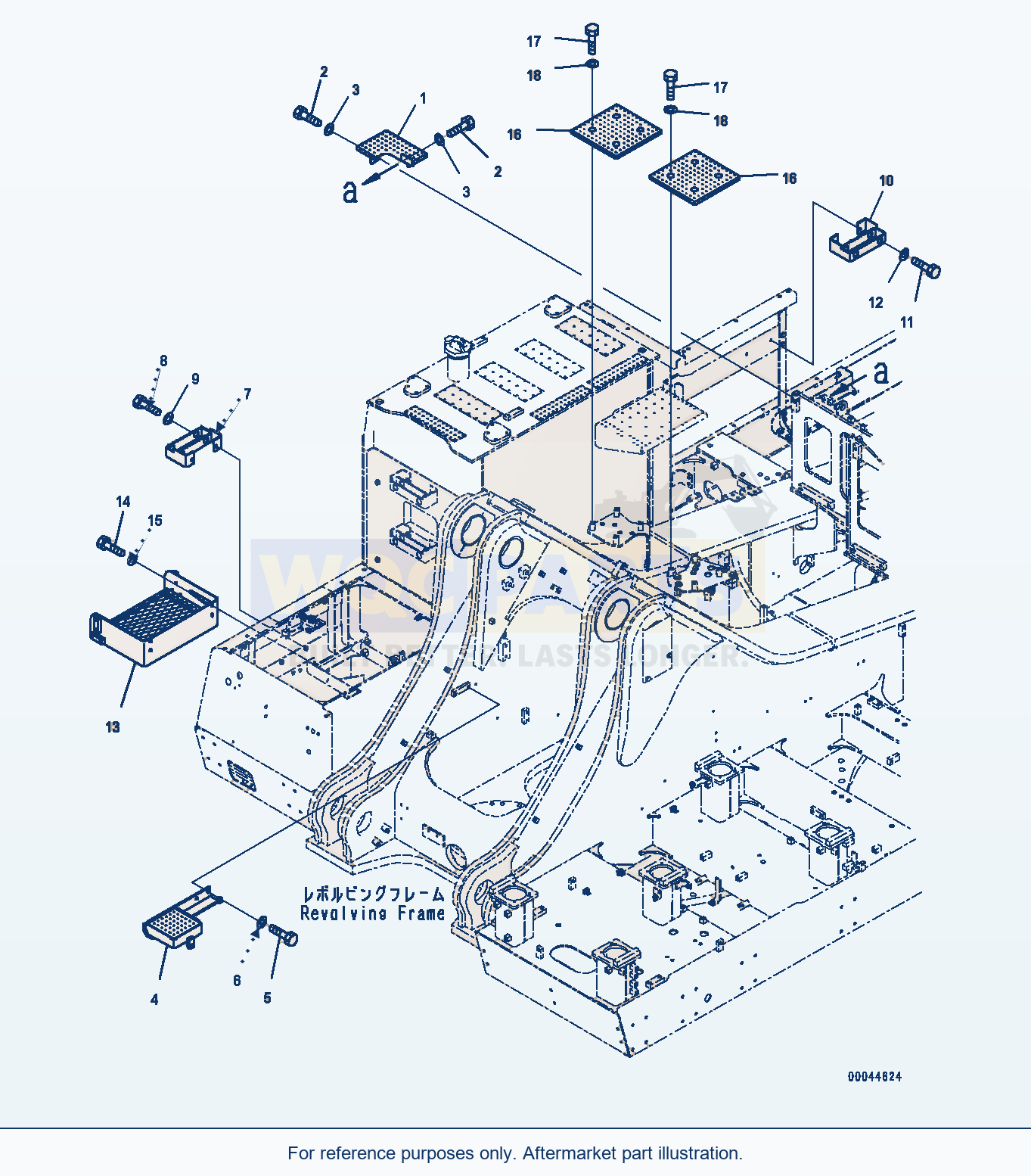

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BracketSN: 30158-@ | 1 | Request quote | |||
| 2 | BoltSN: 30158-@ | 4 | Request quote | |||
| 3 | WasherSN: 30158-@ | 4 | View product ↗ | |||
| 4 | BracketSN: 30158-@ | 1 | Request quote | |||
| 5 | BoltSN: 30158-@ | 2 | Request quote | |||
| 6 | WasherSN: 30158-@ | 2 | View product ↗ | |||
| 7 | StepSN: 30158-@ | 1 | Request quote | |||
| 8 | BoltSN: 30158-@ | 2 | Request quote | |||
| 9 | WasherSN: 30158-@ | 2 | View product ↗ | |||
| 10 | StepSN: 30158-@ | 1 | Request quote | |||
| 11 | BoltSN: 30158-@ | 2 | Request quote | |||
| 12 | WasherSN: 30158-@ | 2 | View product ↗ | |||
| 13 | StepSN: 30158-@ | 1 | Request quote | |||
| 14 | BoltSN: 30158-@ | 4 | Request quote | |||
| 15 | WasherSN: 30158-@ | 4 | View product ↗ | |||
| 16 | BracketSN: 30158-@ | 2 | Request quote | |||
| 17 | BoltSN: 30158-@ | 8 | Request quote | |||
| 18 | WasherSN: 30158-@ | 8 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC1250LC-8 Excavator Handrail, Step (#30158-30245) Parts
Use the Komatsu PC1250LC-8 Excavator Handrail, Step (#30158-30245) Parts listing to identify aftermarket replacement parts within the guards and covers section. This excavator application is listed for machine serial 30158-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including bracket (reference 21N-54-41731), bracket (reference 21N-54-42540) and step (reference 21N-54-42430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
