Komatsu PC1250LC-8 Operator'S Seat, Inner Parts (#30158-) Parts
Komatsu PC1250LC-8 operator's seat, inner parts (#30158-) parts for machine serial 30158-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator's Compartment And Control System / Operator'S Seat / Operator'S Seat, Inner Parts (#30158-).
Checking current purchase options...

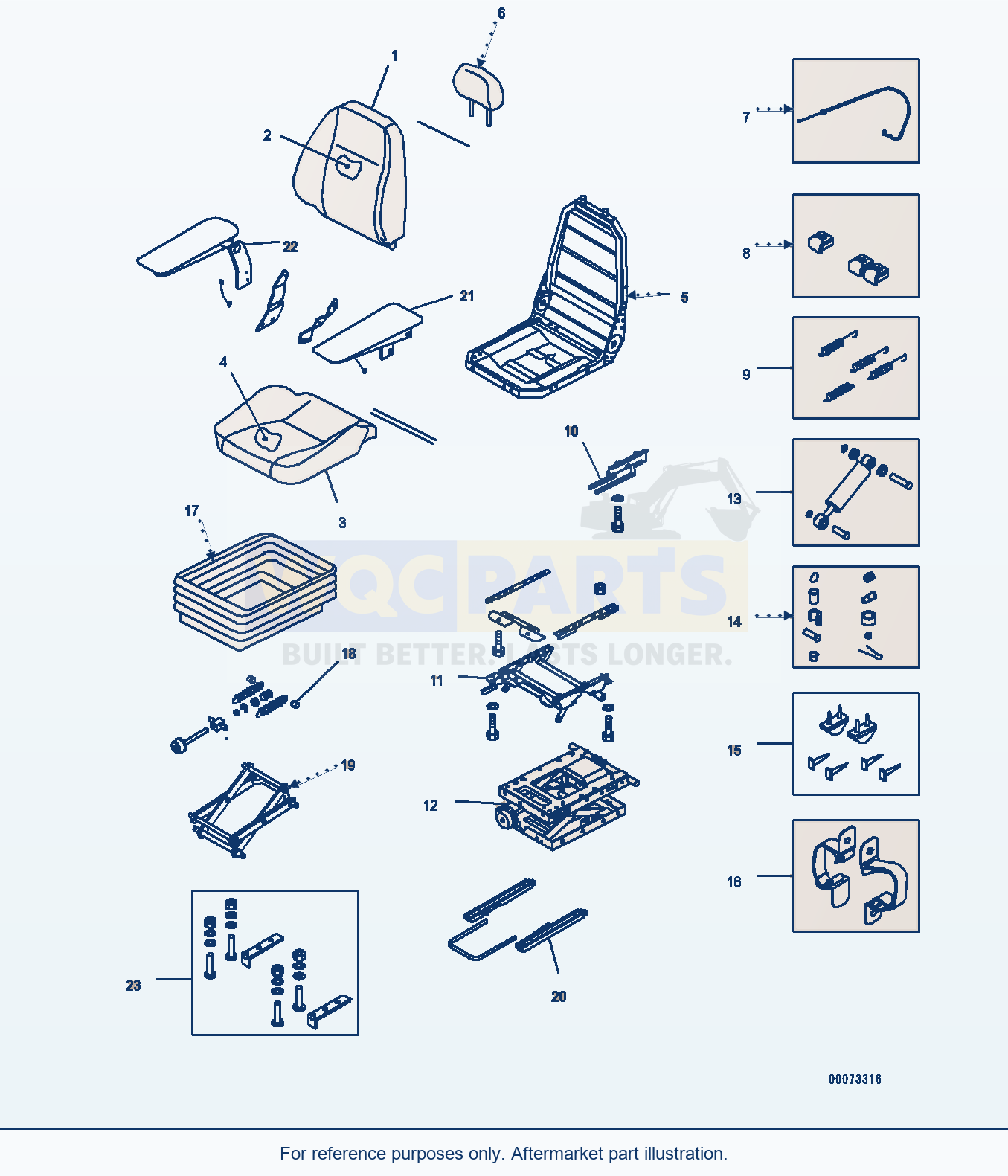

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | Seat AssemblySN: 30254-UP | 1 | Request quote | |||
| 1 | Seat AssemblySN: 30165-30253, SCC: A2 | 1 | Request quote | |||
| 2 | Seat AssemblySN: 30158-30164 | 1 | Request quote | |||
| 3 | Seat AssemblySN: 30158-UP | 1 | Request quote | |||
| 1 | Back Seat Cover KitSN: 30158-UP | 1 | Request quote | |||
| 2 | Back Seat Foam KitSN: 30158-UP | 1 | Request quote | |||
| 3 | Seat Cover KitSN: 30158-UP | 1 | Request quote | |||
| 4 | Seat Foam KitSN: 30158-UP | 1 | Request quote | |||
| 5 | Frame KitSN: 30158-UP | 1 | Request quote | |||
| 6 | Headrest KitSN: 30158-UP | 1 | Request quote | |||
| 7 | Cable KitSN: 30158-UP | 1 | Request quote | |||
| 8 | Handle KitSN: 30158-UP | 1 | Request quote | |||
| 9 | Spring KitSN: 30158-UP | 1 | Request quote | |||
| 10 | Latch KitSN: 30158-UP | 1 | Request quote | |||
| 11 | Riser KitSN: 30254-UP | 1 | Request quote | |||
| 11 | Riser KitSN: 30158-30253 | 1 | Request quote | |||
| 12 | Suspension KitSN: 30158-UP | 1 | Request quote | |||
| 13 | Damper KitSN: 30158-UP | 1 | Request quote | |||
| 14 | Bearing KitSN: 30158-UP | 1 | Request quote | |||
| 15 | Up Stop and Bump Stop KitSN: 30158-UP | 1 | Request quote | |||
| 16 | Tether Belt KitSN: 30158-UP | 1 | Request quote | |||
| 17 | Suspension Cover KitSN: 30158-UP | 1 | Request quote | |||
| 18 | Adjuster Kit, WeightSN: 30158-UP | 1 | Request quote | |||
| 19 | Lever, Center Pivot KitSN: 30158-UP | 1 | Request quote | |||
| 20 | Adjuster KitSN: 30158-UP | 1 | Request quote | |||
| 21 | Armrest KitSN: 30158-UP | 1 | Request quote | |||
| 22 | Armrest KitSN: 30158-UP | 1 | Request quote | |||
| 23 | Sliderail KitSN: 30158-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC1250LC-8 Operator'S Seat, Inner Parts (#30158-) Parts
Use the Komatsu PC1250LC-8 Operator'S Seat, Inner Parts (#30158-) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This excavator application is listed for machine serial 30158-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including seat assembly (reference 208-57-71102), seat assembly (reference 208-57-71101) and seat assembly (reference 208-57-71100). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
