Komatsu PC200-8 Heater Switch (#26541137-) Serial 350001-UP Parts
Komatsu PC200-8 heater switch (#26541137-) serial 350001-up parts for machine serial 350001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-1B SN 541137-UP (For PC200-8/PC200-JK-8N1/PC200F-8/PC200LC-8) / Engine Lubrication System / Heater Switch / Heater Switch (#26541137-).
Checking current purchase options...

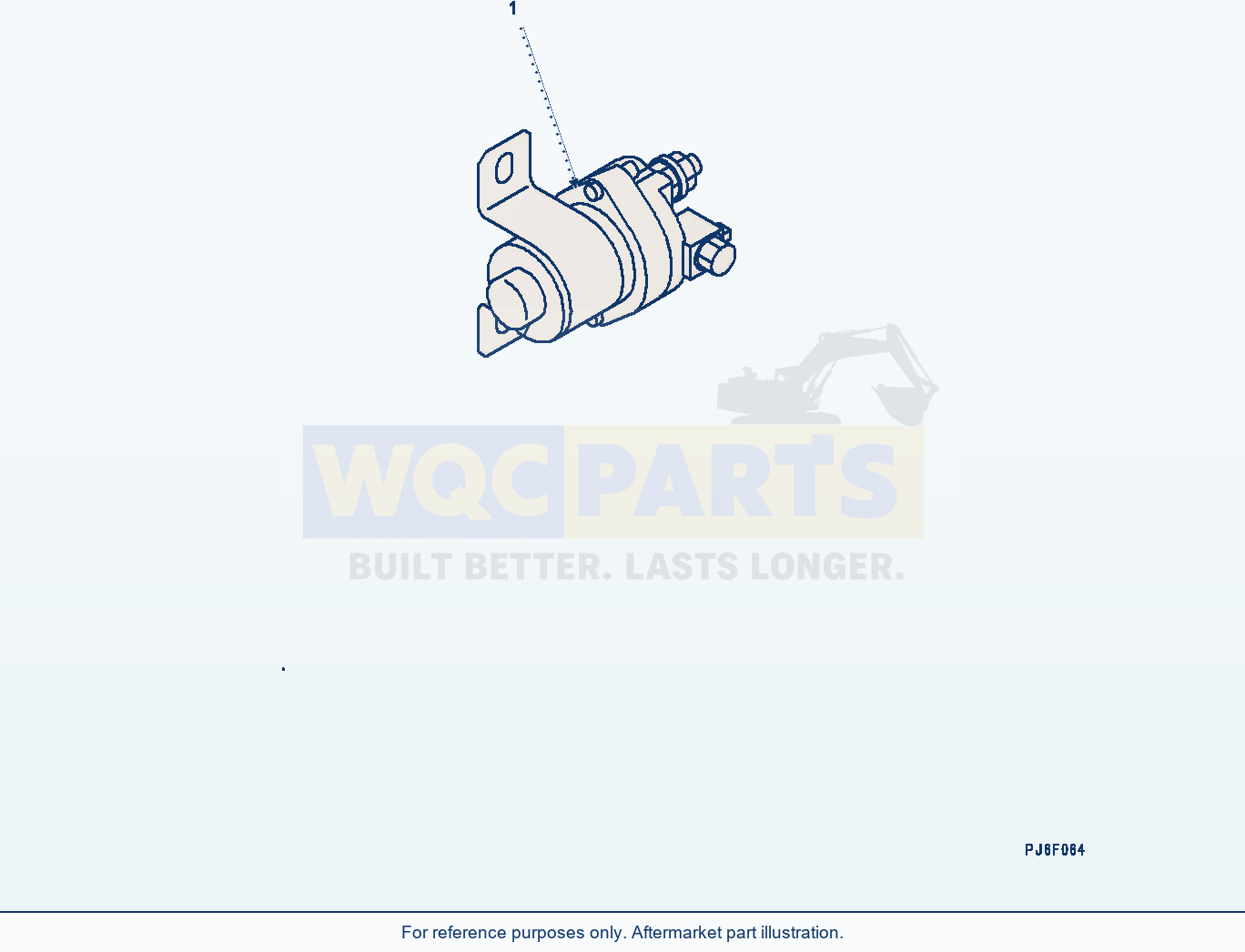

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 1 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | Switch, HeaterSN: 26541137-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC200-8 Heater Switch (#26541137-) Serial 350001-UP Parts
Use the Komatsu PC200-8 Heater Switch (#26541137-) Serial 350001-UP Parts listing to identify aftermarket replacement parts within the engine lubrication system section. This excavator application is listed for machine serial 350001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 1 listed part occurrences, including switch, heater (reference 600-815-2170). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-1B (engine serial 541137-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For lubrication-system components, match the engine application and the notes attached to the part number. This catalog identifies parts; it does not replace the service manual for lubricant selection or maintenance procedures.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
