Komatsu PC200-8 Fuel Supply Piping, Drain Piping (#350001-) Parts
Komatsu PC200-8 fuel supply piping, drain piping (#350001-) parts for machine serial 350001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Fuel System / Fuel Supply Piping / Fuel Supply Piping, Drain Piping (#350001-).
Checking current purchase options...

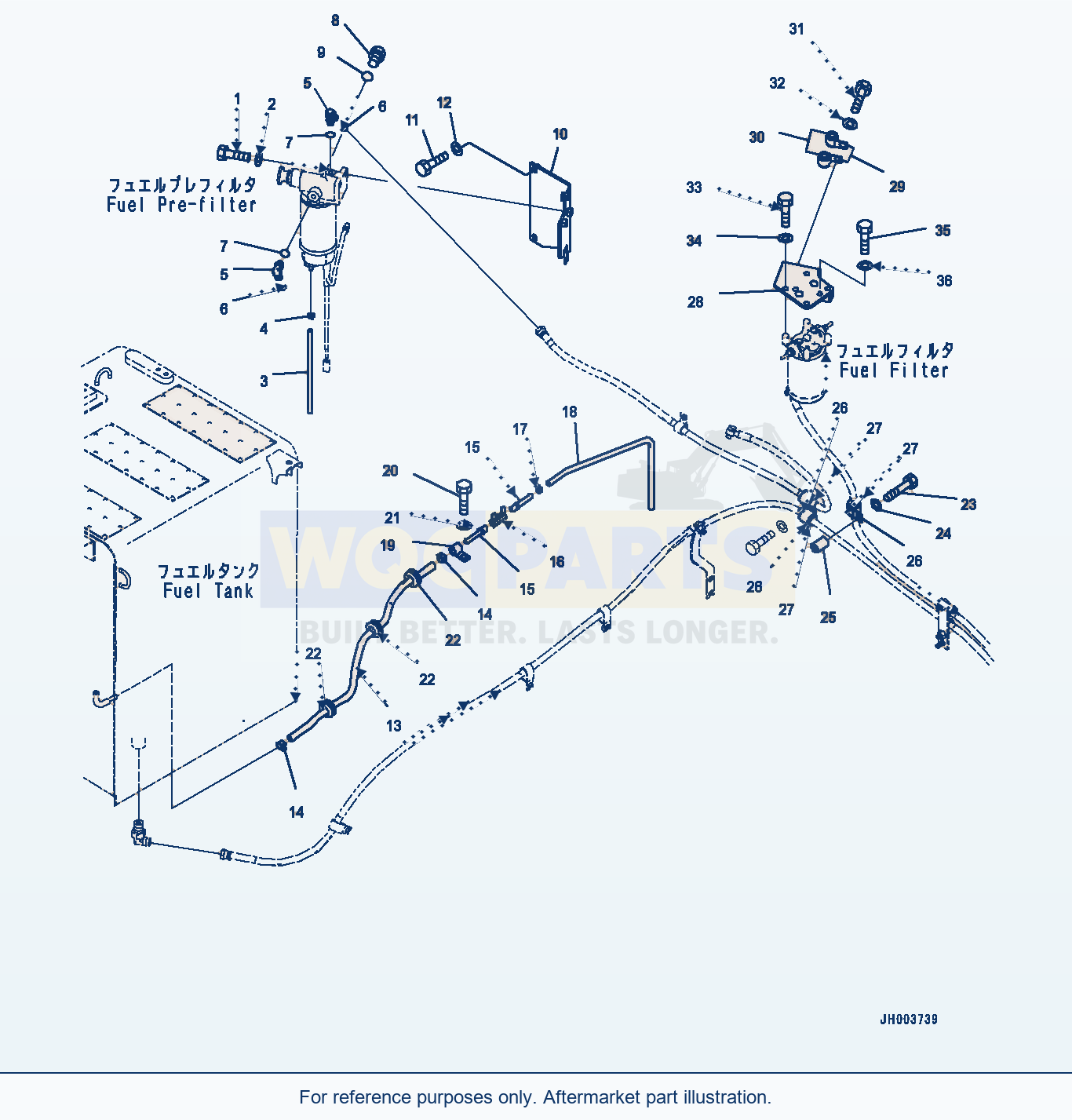

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 36 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BoltSN: 350001-UP | 2 | Request quote | |||
| 2 | WasherSN: 350001-UP | 2 | Request quote | |||
| 3 | TubeSN: 350001-UP | 1 | Request quote | |||
| 4 | ClipSN: 350001-UP | 1 | Request quote | |||
| 5 | ElbowSN: 350001-UP | 2 | Request quote | |||
| 6 | O-ringSN: 350001-UP | 2 | View product ↗ | |||
| 7 | O-ringSN: 350001-UP | 2 | Request quote | |||
| 8 | PlugSN: 350001-UP | 1 | View product ↗ | |||
| 9 | O-ringSN: 350001-UP | 1 | Request quote | |||
| 10 | BracketSN: 350001-UP | 1 | Request quote | |||
| 11 | BoltSN: 350001-UP | 2 | Request quote | |||
| 12 | WasherSN: 350001-UP | 2 | View product ↗ | |||
| 13 | HoseSN: 350001-UP | 1 | Request quote | |||
| 14 | ClipSN: 350001-UP | 2 | Request quote | |||
| 15 | NippleSN: 350001-UP | 2 | Request quote | |||
| 16 | ValveSN: 350001-UP | 1 | Request quote | |||
| 17 | ClipSN: 350001-UP | 1 | Request quote | |||
| 18 | TubeSN: 350001-UP | 1 | Request quote | |||
| 19 | ClipSN: 350001-UP | 1 | Request quote | |||
| 20 | BoltSN: 350001-UP | 1 | Request quote | |||
| 21 | WasherSN: 350001-UP | 1 | View product ↗ | |||
| 22 | GrommetSN: 350001-UP | 3 | Request quote | |||
| 23 | BoltSN: 350001-UP | 1 | View product ↗ | |||
| 24 | WasherSN: 350001-UP | 1 | View product ↗ | |||
| 25 | CollarSN: 350001-UP | 1 | Request quote | |||
| 26 | ClipSN: 350001-UP | 3 | View product ↗ | |||
| 27 | CushionSN: 350001-UP | 3 | Request quote | |||
| 28 | BracketSN: 350001-UP | 1 | Request quote | |||
| 29 | ClipSN: 350001-UP | 2 | Request quote | |||
| 30 | CushionSN: 350001-UP | 2 | Request quote | |||
| 31 | BoltSN: 350001-UP | 1 | Request quote | |||
| 32 | WasherSN: 350001-UP | 1 | View product ↗ | |||
| 33 | BoltSN: 350001-UP | 4 | Request quote | |||
| 34 | WasherSN: 350001-UP | 4 | View product ↗ | |||
| 35 | BoltSN: 350001-UP | 2 | Request quote | |||
| 36 | WasherSN: 350001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC200-8 Fuel Supply Piping, Drain Piping (#350001-) Parts
Use the Komatsu PC200-8 Fuel Supply Piping, Drain Piping (#350001-) Parts listing to identify aftermarket replacement parts within the fuel system section. This excavator application is listed for machine serial 350001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 36 listed part occurrences, including tube (reference 07270-00827), clip (reference 07285-00100) and elbow (reference 02782-10311). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
