Komatsu PC200LC-8 Track Link Assembly, Supply Parts (#350001-) Parts
Komatsu PC200LC-8 track link assembly, supply parts (#350001-) parts for machine serial 350001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Undercarriage / Track Link Assembly / Track Link Assembly, Supply Parts (#350001-).
Checking current purchase options...

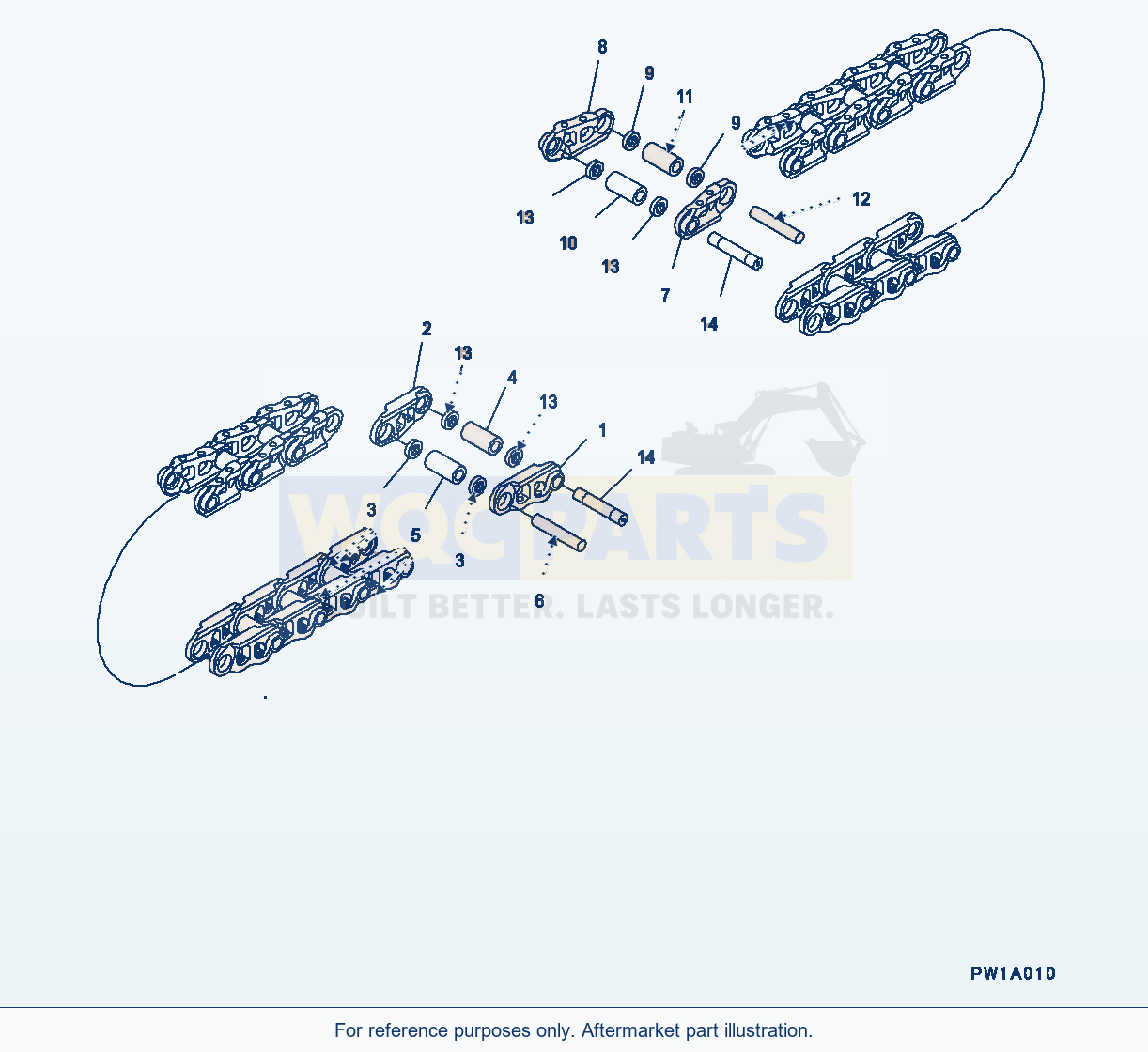

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 15 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | Track Link AssemblySN: 350001-UP | 1 | Request quote | |||
| 1 | LinkSN: 350001-UP | 48 | Request quote | |||
| 2 | LinkSN: 350001-UP | 48 | Request quote | |||
| 3 | SealSN: 350001-UP | 92 | View product ↗ | |||
| 4 | Bushing, MasterSN: 350001-UP | 2 | Request quote | |||
| 5 | Bushing, RegularSN: 350001-UP | 46 | Request quote | |||
| 6 | PinSN: 350001-UP | 46 | Request quote | |||
| 7 | LinkSN: 350001-UP | 50 | Request quote | |||
| 8 | LinkSN: 350001-UP | 50 | Request quote | |||
| 9 | SealSN: 350001-UP | 96 | View product ↗ | |||
| 10 | Bushing, MasterSN: 350001-UP | 2 | Request quote | |||
| 11 | Bushing, RegularSN: 350001-UP | 48 | Request quote | |||
| 12 | PinSN: 350001-UP | 48 | Request quote | |||
| 13 | SealSN: 350001-UP | 8 | View product ↗ | |||
| 14 | PinSN: 350001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC200LC-8 Track Link Assembly, Supply Parts (#350001-) Parts
Use the Komatsu PC200LC-8 Track Link Assembly, Supply Parts (#350001-) Parts listing to identify aftermarket replacement parts within the undercarriage section. This excavator application is listed for machine serial 350001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 15 listed part occurrences, including track link assembly (reference 20Y-32-00310), link (reference 20Y-32-31120) and link (reference 20Y-32-31130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When identifying undercarriage parts, retain the full model suffix and the track or shoe options shown in the catalog. Standard and long-undercarriage machines should not be treated as identical applications.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
