Komatsu PC220LC-8 Excavator Marks And Name Plates Parts
Komatsu PC220LC-8 marks and name plates parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Name Plates.
Checking current purchase options...

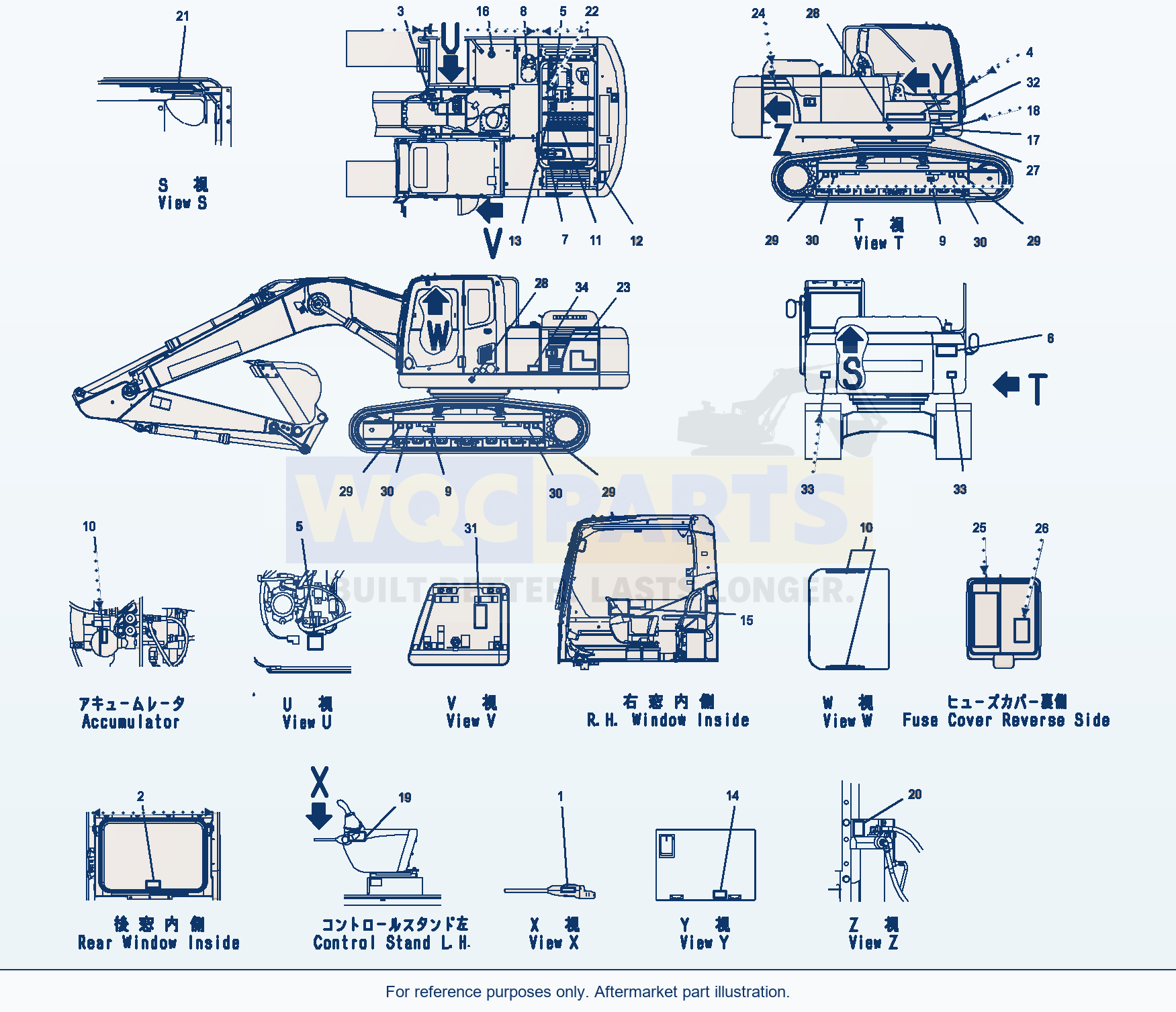

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 34 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | Decal, Symbol, Lock/UnlockSN: 70001-UP | 1 | Request quote | |||
| 2 | Decal, Emergency ExitSN: 70001-UP | 1 | Request quote | |||
| 3 | Decal, Komatsu LogoSN: 70001-UP | 1 | Request quote | |||
| 4 | Decal, Komatsu LogoSN: 70001-UP | 1 | Request quote | |||
| 5 | Plate, Caution, No Jump StartSN: 70001-UP | 2 | Request quote | |||
| 6 | Decal, Danger, Keep Off Swing AreaSN: 70001-UP | 1 | Request quote | |||
| 7 | Decal, Warning, High TemperatureSN: 70001-UP | 1 | Request quote | |||
| 8 | Decal, Warning, Hot WaterSN: 70001-UP | 1 | Request quote | |||
| 9 | Decal, Warning, Track AdjustmentSN: 70001-UP | 2 | Request quote | |||
| 10 | Decal, Warning, Explosive HazardSN: 70001-UP | 3 | Request quote | |||
| 11 | Decal, Caution, Rotating ObjectSN: 70001-UP | 1 | Request quote | |||
| 12 | Decal, Caution, FootingSN: 70001-UP | 1 | Request quote | |||
| 13 | Decal, Caution, FootingSN: 70001-UP | 1 | Request quote | |||
| 14 | Decal, Warning, Battery CablesSN: 70001-UP | 1 | Request quote | |||
| 15 | Decal, WarningSN: 70001-UP | 1 | Request quote | |||
| 16 | Decal, Symbol, Fuel FillerSN: 70001-UP | 1 | Request quote | |||
| 17 | Plate, Name (Limited Supply)SN: 70001-UP, SCC: C2 | 1 | Request quote | |||
| 18 | ScrewSN: 70001-UP | 4 | Request quote | |||
| 19 | Tag, Danger, Do Not OperateSN: 70001-UP | 1 | Request quote | |||
| 20 | DecalSN: 70001-UP | 1 | Request quote | |||
| 21 | Decal, Warning, Explosive HazardSN: 70001-UP | 2 | Request quote | |||
| 22 | Decal, Caution, FootingSN: 70001-UP | 1 | Request quote | |||
| 23 | Decal, Machine Model MarkSN: 70001-UP | 1 | Request quote | |||
| 24 | Decal, Machine Model MarkSN: 70001-UP | 1 | Request quote | |||
| 25 | Decal, FuseSN: 70001-UP | 1 | Request quote | |||
| 26 | Decal, Swing And Pump Override SwitchSN: 70001-UP | 1 | Request quote | |||
| 27 | Decal, Lift Point MarkSN: 70001-UP | 1 | Request quote | |||
| 28 | Decal, Balancing Position MarkSN: 70001-UP | 2 | Request quote | |||
| 29 | Decal, Lift Point MarkSN: 70001-UP | 4 | Request quote | |||
| 30 | Decal, Tie Down Point MarkSN: 70001-UP | 4 | Request quote | |||
| 31 | Decal, CautionSN: 70001-UP | 1 | Request quote | |||
| 32 | ScrewSN: 70001-UP | 4 | Request quote | |||
| 33 | PlateSN: 70001-UP | 2 | Request quote | |||
| 34 | DecalSN: 70001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC220LC-8 Excavator Marks And Name Plates Parts
Use the Komatsu PC220LC-8 Excavator Marks And Name Plates Parts listing to identify aftermarket replacement parts within the marks and plates section. This excavator application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 34 listed part occurrences, including decal, symbol, lock/unlock (reference 09685-00002), decal, emergency exit (reference 09844-00050) and decal, komatsu logo (reference 09690-M0063). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
