Komatsu PC270-8 Excavator Fuel Prefilter (#26537659-) Parts
Komatsu PC270-8 fuel prefilter (#26537659-) parts for machine serial 30117-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-1E SN 26537659-UP (For PC270-8/PC270LC-8) / Engine Fuel System / Fuel Prefilter / Fuel Prefilter (#26537659-).
Checking current purchase options...

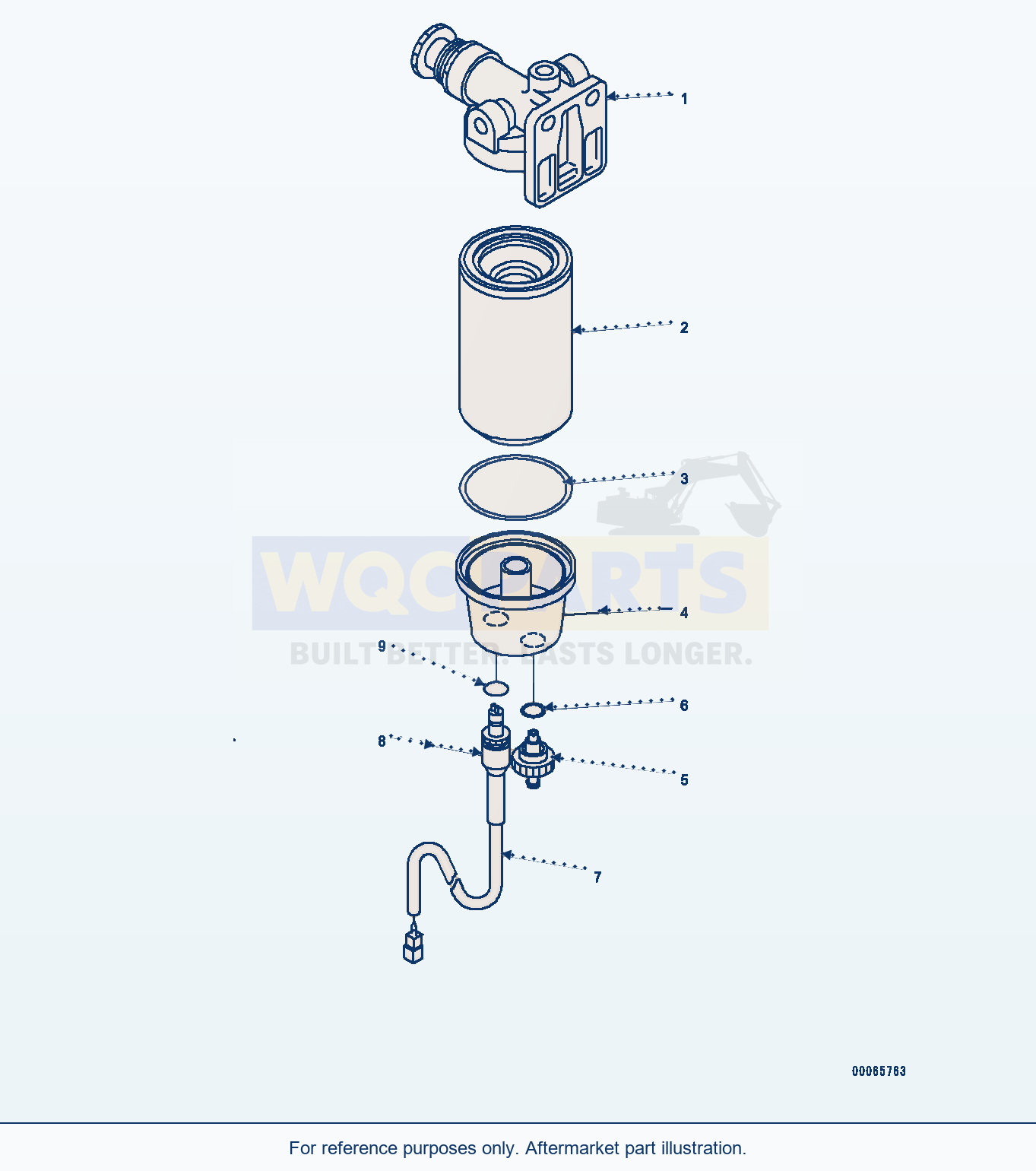

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | Filter AssemblySN: 26537659-UP | 1 | Request quote | |||
| 1 | HeadSN: 26537659-UP | 1 | View product ↗ | |||
| 1 | Filter AssemblySN: 26537659-UP | 1 | Request quote | |||
| 3 | SealSN: 26537659-UP | 1 | Request quote | |||
| 4 | BowlSN: 26537659-UP | 1 | Request quote | |||
| 4 | Valve AssemblySN: 26537659-UP | 1 | Request quote | |||
| 5 | ValveSN: 26537659-UP | 1 | Request quote | |||
| 6 | SealSN: 26537659-UP | 1 | Request quote | |||
| 6 | Sensor, Water-in-fuelSN: 26537659-UP | 1 | View product ↗ | |||
| 9 | O-ringSN: 26537659-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Cartridge
Tube
Sensor
Using Komatsu PC270-8 Excavator Fuel Prefilter (#26537659-) Parts
Use the Komatsu PC270-8 Excavator Fuel Prefilter (#26537659-) Parts listing to identify aftermarket replacement parts within the engine fuel system section. This excavator application is listed for machine serial 30117-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including filter assembly (reference 6754-71-7402), head (reference 6754-71-7200) and filter assembly (reference 600-311-3602). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-1E (engine serial 26537659-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
