Komatsu PC270LC-8 Rear Gear Housing (#26537659-) (Abb20-001001) Parts
Komatsu PC270LC-8 rear gear housing (#26537659-) (abb20-001001) parts for machine serial 30117-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-1E SN 26537659-UP (For PC270-8/PC270LC-8) / Engine Cylinder Block And Its Related Parts / Rear Gear Housing / Rear Gear Housing (#26537659-) (Abb20-001001).
Checking current purchase options...

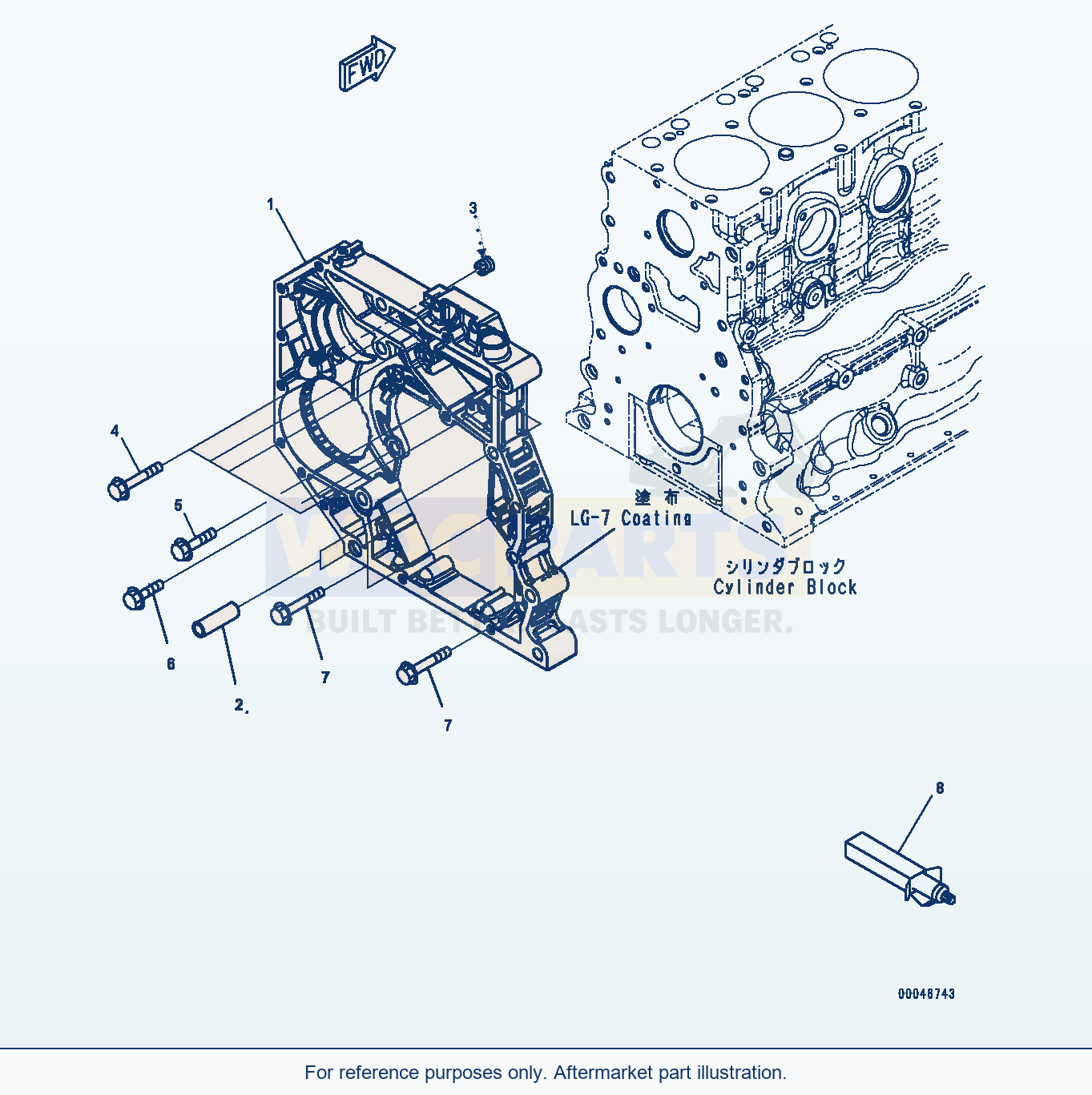

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | Housing Assembly,Rear GearSN: 26588754-UP | 1 | Request quote | |||
| 1 | Housing AssemblySN: 26537659-26588753, SCC: A2 | 1 | Request quote | |||
| 2 | PinSN: 26537659-UP | 2 | Request quote | |||
| 3 | InsertSN: 26537659-UP | 2 | Request quote | |||
| 4 | BoltSN: 26537659-UP | 4 | Request quote | |||
| 5 | BoltSN: 26590477-UP | 2 | Request quote | |||
| 5 | BoltSN: 26537659-26590476 | 2 | Request quote | |||
| 6 | BoltSN: 26537659-UP | 1 | Request quote | |||
| 7 | BoltSN: 26537659-UP | 3 | Request quote | |||
| 8 | Liquid gasket, LG-7, 150GSN: 26537659-UP, KIT-FLAG: S | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Housing,Rear Gear
Housing
Using Komatsu PC270LC-8 Rear Gear Housing (#26537659-) (Abb20-001001) Parts
Use the Komatsu PC270LC-8 Rear Gear Housing (#26537659-) (Abb20-001001) Parts listing to identify aftermarket replacement parts within the engine cylinder block and its related parts section. This excavator application is listed for machine serial 30117-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including housing assembly,rear gear (reference 6754-21-3103), housing assembly (reference 6754-21-3102) and pin (reference 6754-21-3120). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-1E (engine serial 26537659-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
