Komatsu PC300LC-8 Fuel Piping (#26852077-) (Aft00-001001) Parts
Komatsu PC300LC-8 fuel piping (#26852077-) (aft00-001001) parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D114E-3D SN 26852735-UP (For PC300-8/PC300LC-8/PC350-8/PC350LC-8) / Engine Fuel System / Fuel Piping / Fuel Piping (#26852077-) (Aft00-001001).
Checking current purchase options...

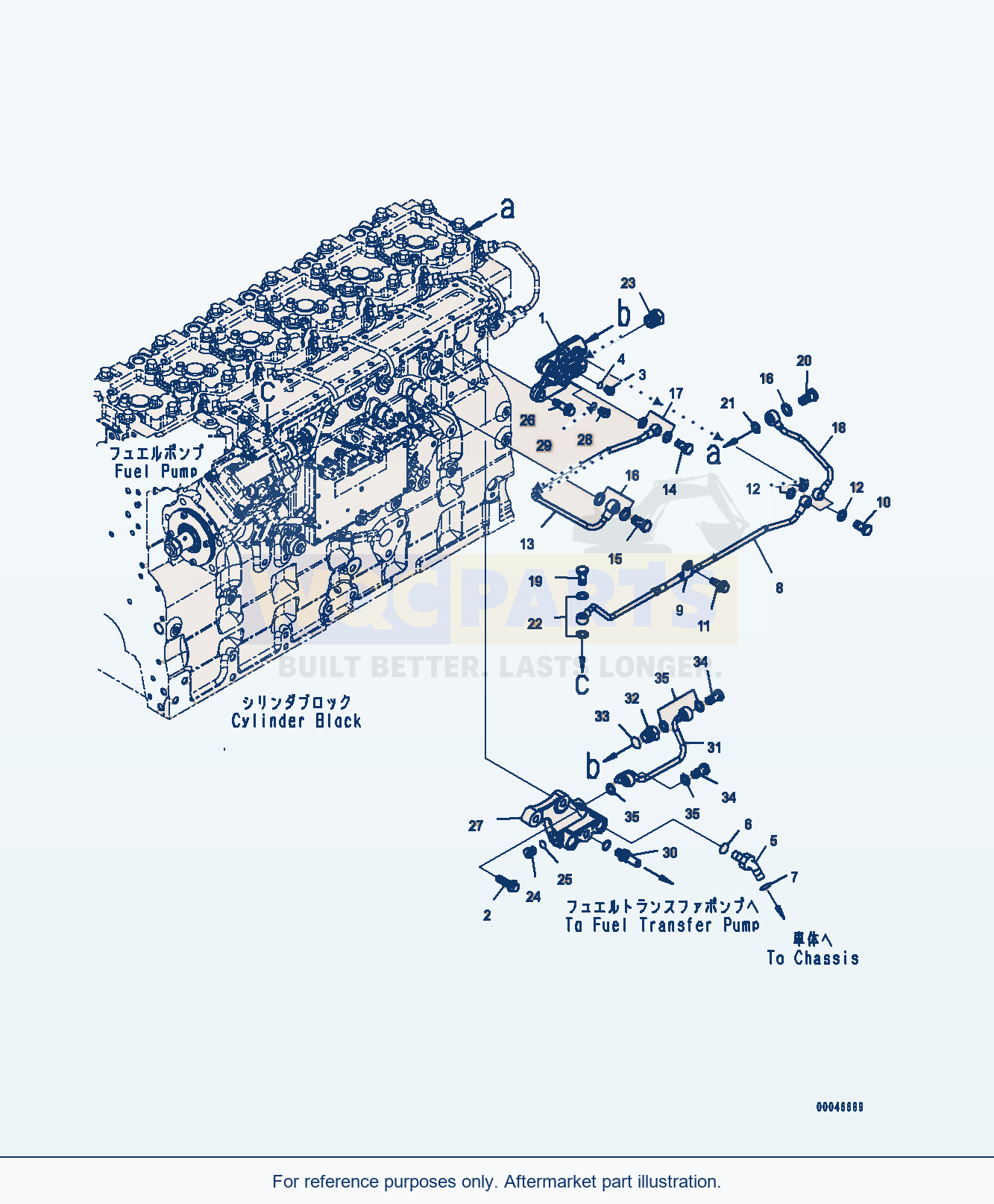

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ConnectorSN: 26852077-UP | 1 | Request quote | |||
| 2 | BoltSN: 26852077-UP | 2 | Request quote | |||
| 2 | Plug AssemblySN: 26852077-UP | 1 | Request quote | |||
| 3 | PlugSN: 26852077-UP | 1 | Request quote | |||
| 4 | O-ringSN: 26852077-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 5 | ElbowSN: 26852077-UP | 1 | Request quote | |||
| 6 | O-ringSN: 26852077-26854799, KIT-FLAG: S | 1 | View product ↗ | |||
| 7 | O-ringSN: 26852077-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 8 | TubeSN: 26852077-UP | 1 | Request quote | |||
| 9 | ClipSN: 26852077-UP | 1 | Request quote | |||
| 10 | Bolt, JointSN: 26852077-UP | 2 | Request quote | |||
| 11 | BoltSN: 26852077-UP | 1 | Request quote | |||
| 12 | Seal, WasherSN: 26852077-UP, KIT-FLAG: S | 4 | View product ↗ | |||
| 13 | TubeSN: 26852077-UP | 1 | View product ↗ | |||
| 14 | Bolt, JointSN: 26852077-UP | 1 | Request quote | |||
| 15 | ScrewSN: 26852077-UP | 1 | Request quote | |||
| 16 | Washer, SealSN: 26852077-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 17 | Seal, WasherSN: 26852077-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 18 | TubeSN: 26852077-UP | 1 | View product ↗ | |||
| 19 | Bolt, JointSN: 26852077-UP | 1 | Request quote | |||
| 20 | Valve, CheckSN: 26852077-UP | 1 | Request quote | |||
| 21 | Washer, SealSN: 26852077-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 22 | Seal, WasherSN: 26852077-UP, KIT-FLAG: S | 3 | View product ↗ | |||
| 23 | PlugSN: 26852077-UP | 1 | Request quote | |||
| 23 | Plug AssemblySN: 26852077-UP | 1 | Request quote | |||
| 24 | Plug, ThreadedSN: 26852077-UP | 1 | Request quote | |||
| 25 | O-ringSN: 26852077-UP, KIT-FLAG: S | 1 | Request quote | |||
| 26 | BoltSN: 26852077-UP | 2 | Request quote | |||
| 27 | ConnectorSN: 26852077-UP | 1 | Request quote | |||
| 29 | Plug AssemblySN: 26852077-UP | 1 | Request quote | |||
| 28 | Plug, ThreadedSN: 26852077-UP | 1 | Request quote | |||
| 29 | O-ringSN: 26852077-UP, KIT-FLAG: S | 1 | Request quote | |||
| 30 | ConnectorSN: 26852077-UP | 1 | View product ↗ | |||
| 31 | TubeSN: 26852077-UP | 1 | View product ↗ | |||
| 34 | Union AssemblySN: 26852077-UP | 1 | Request quote | |||
| 32 | UnionSN: 26852077-UP | 1 | Request quote | |||
| 33 | O-ringSN: 26852077-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 34 | Bolt, JointSN: 26852077-UP | 2 | Request quote | |||
| 35 | Seal, WasherSN: 26852077-UP, KIT-FLAG: S | 5 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC300LC-8 Fuel Piping (#26852077-) (Aft00-001001) Parts
Use the Komatsu PC300LC-8 Fuel Piping (#26852077-) (Aft00-001001) Parts listing to identify aftermarket replacement parts within the engine fuel system section. This excavator application is listed for machine serial 60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 39 listed part occurrences, including connector (reference 6745-71-5610), plug assembly (reference 6732-21-1960) and plug (reference 6215-81-9510). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D114E-3D (engine serial 26852735-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
