Komatsu PC400LC-8 Water Drain Valve (#660001-) Serial 75001-UP Parts
Komatsu PC400LC-8 water drain valve (#660001-) serial 75001-up parts for machine serial 75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5-FR SN 660001-UP (For PC400-8R/PC400LC-8R/PC450-8R/PC450LC-8R) / Engine Accessories And Others / Water Drain Valve / Water Drain Valve (#660001-).
Checking current purchase options...

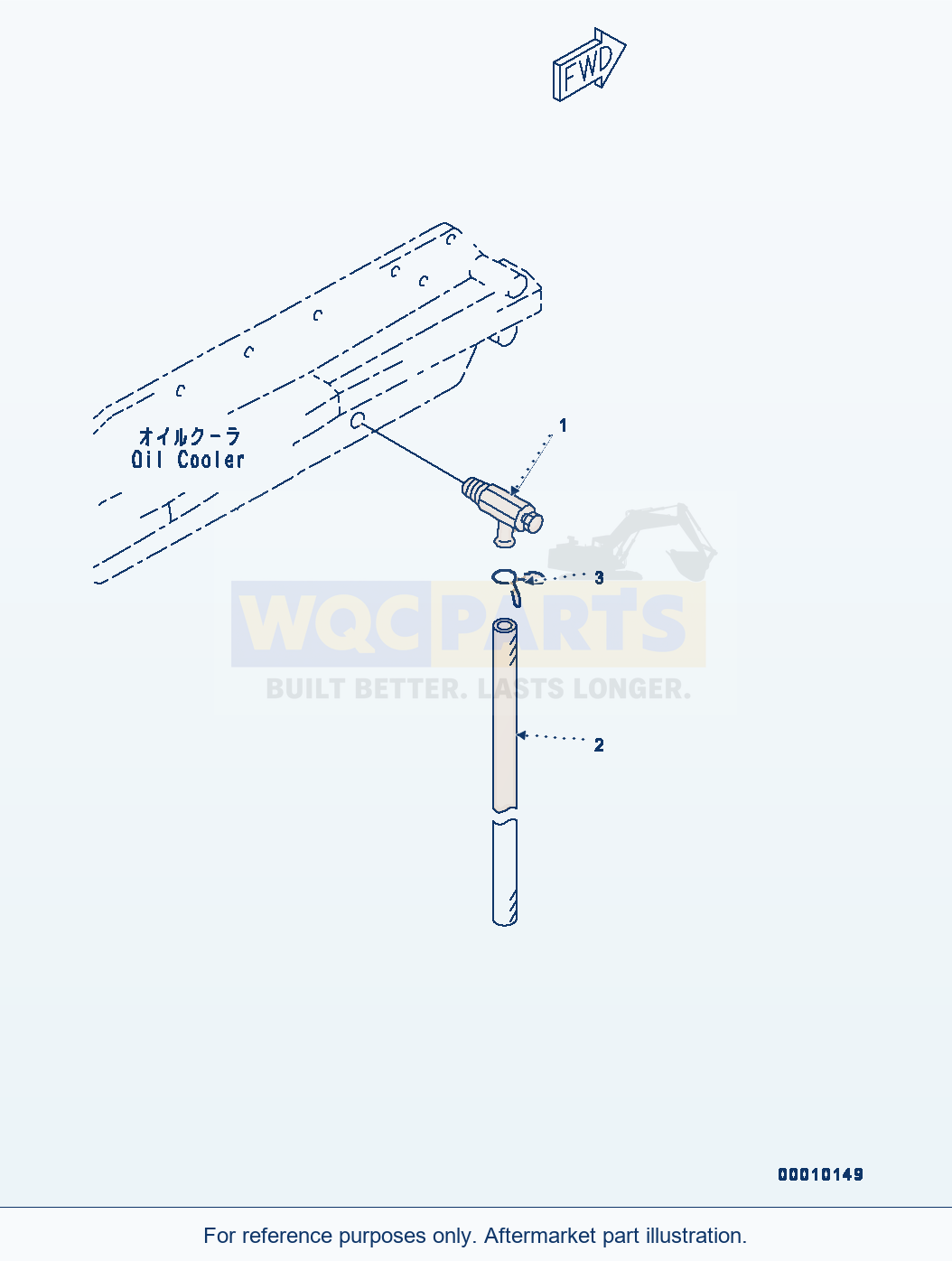

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 3 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | Valve, DrainSN: 660001-UP | 1 | Request quote | |||
| 2 | HoseSN: 660001-UP | 1 | Request quote | |||
| 3 | ClipSN: 660001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC400LC-8 Water Drain Valve (#660001-) Serial 75001-UP Parts
Use the Komatsu PC400LC-8 Water Drain Valve (#660001-) Serial 75001-UP Parts listing to identify aftermarket replacement parts within the engine accessories and others section. This excavator application is listed for machine serial 75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 3 listed part occurrences, including valve, drain (reference 6140-61-6512), hose (reference 07286-00825) and clip (reference 6144-61-6510). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5-FR (engine serial 660001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
