Komatsu PC400LC-8 Excavator Camshaft, (2/2) (#565940-) Parts
Komatsu PC400LC-8 camshaft, (2/2) (#565940-) parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5F SN 562304-UP (For PC400-8/PC400LC-8/PC450-8/PC450LC-8/PC550LC-8) / Engine Cylinder Block And Its Related Parts / Camshaft / Camshaft, (2/2) (#565940-).
Checking current purchase options...

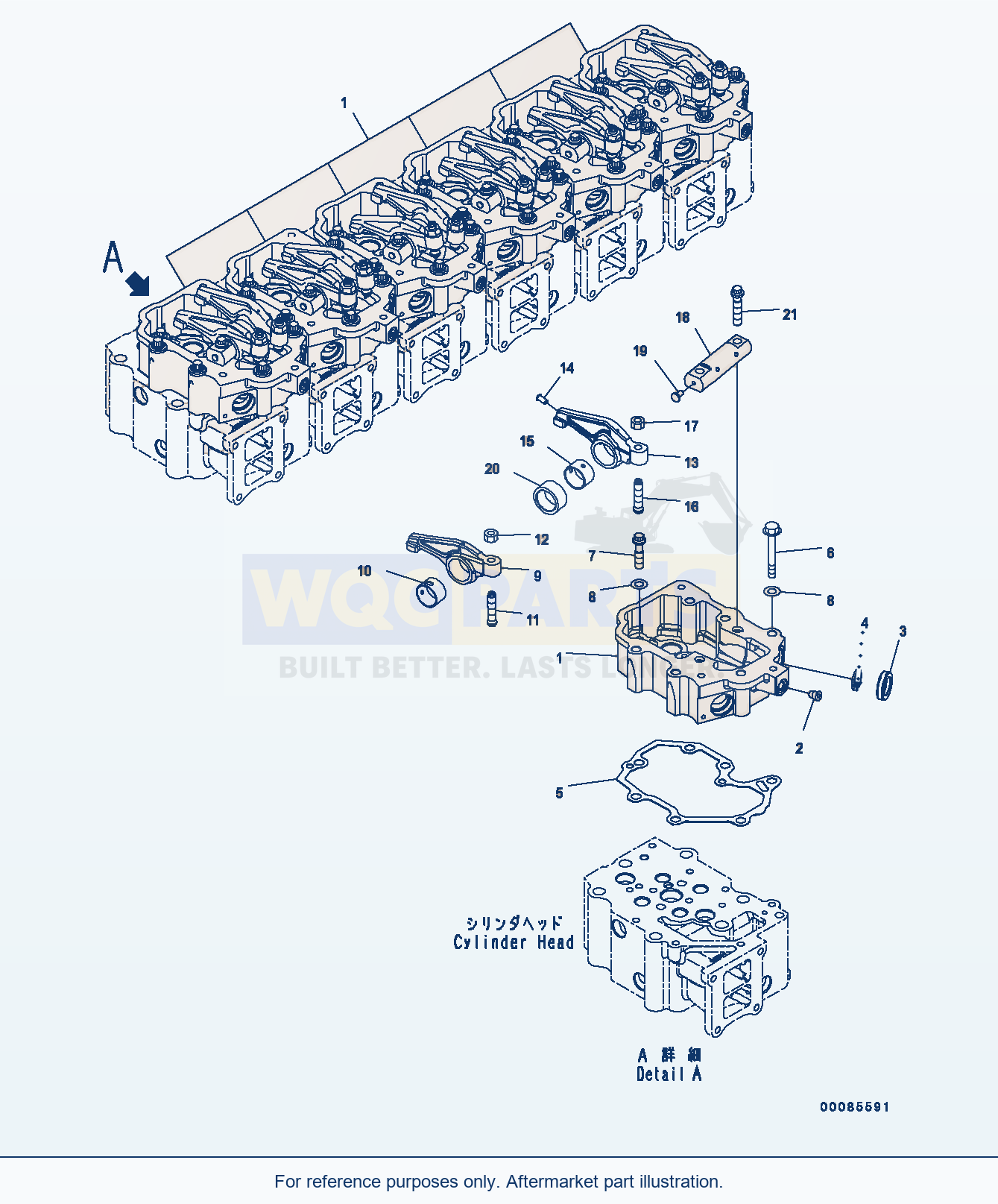

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | Housing AssemblySN: 565940-UP | 6 | Request quote | |||
| 1 | Housing AssemblySN: 565940-UP | 1 | Request quote | |||
| 1 | HousingSN: 560001-UP | 1 | Request quote | |||
| 2 | PlugSN: 560001-UP | 1 | View product ↗ | |||
| 3 | SealSN: 565940-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 4 | RingSN: 565940-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 5 | GasketSN: 560001-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 6 | BoltSN: 565940-UP | 36 | Request quote | |||
| 7 | BoltSN: 560001-UP | 6 | Request quote | |||
| 8 | WasherSN: 565940-UP | 42 | View product ↗ | |||
| 10 | Arm Assembly, IntakeSN: 560001-UP | 6 | Request quote | |||
| 10 | BushingSN: 560001-UP | 1 | View product ↗ | |||
| 11 | ScrewSN: 560001-UP | 6 | Request quote | |||
| 12 | NutSN: 560001-UP | 6 | View product ↗ | |||
| 15 | Arm Assembly, ExhaustSN: 560001-UP | 6 | Request quote | |||
| 14 | RivetSN: 560001-UP | 1 | Request quote | |||
| 15 | BushingSN: 560001-UP | 1 | View product ↗ | |||
| 16 | ScrewSN: 560001-UP | 6 | Request quote | |||
| 17 | NutSN: 560001-UP | 6 | View product ↗ | |||
| 17 | Rocker Arm AssemblySN: 560001-UP | 6 | Request quote | |||
| 19 | RivetSN: 560001-UP | 1 | Request quote | |||
| 20 | CollarSN: 560001-UP | 6 | Request quote | |||
| 21 | BoltSN: 560001-UP | 12 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Arm, Rocker
Arm, Rocker
Shaft
Using Komatsu PC400LC-8 Excavator Camshaft, (2/2) (#565940-) Parts
Use the Komatsu PC400LC-8 Excavator Camshaft, (2/2) (#565940-) Parts listing to identify aftermarket replacement parts within the engine cylinder block and its related parts section. This excavator application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including housing assembly (reference 6251-11-7300), housing assembly (reference 6251-11-7100) and housing (reference 6251-11-7110). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5F (engine serial 562304-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
