Komatsu PC400LC-8 Rops Plate, English — Rops Plate (#75001-) Parts
Komatsu PC400LC-8 rops plate, english — rops plate (#75001-) parts for machine serial 75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Rops Plate, English / Rops Plate (#75001-).
Checking current purchase options...

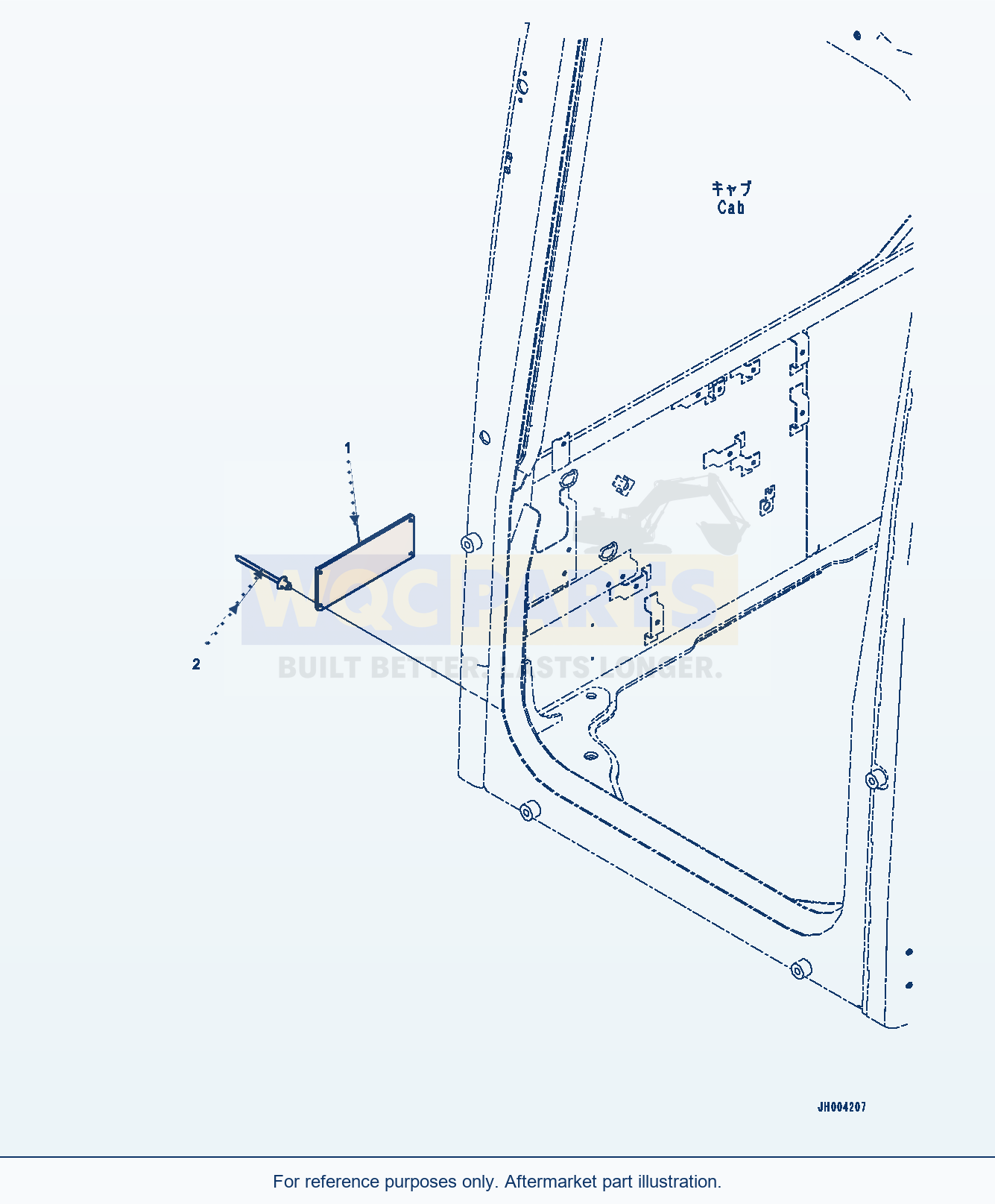

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 2 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | Plate, Certification Mark, ROPS For H/E, (Limited Supply)SN: 75001-UP, SCC: C2 | 1 | Request quote | |||
| 2 | RivetSN: 75001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC400LC-8 Rops Plate, English — Rops Plate (#75001-) Parts
Use the Komatsu PC400LC-8 Rops Plate, English — Rops Plate (#75001-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This excavator application is listed for machine serial 75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 2 listed part occurrences, including plate, certification mark, rops for h/e, (limited supply) (reference 09620-J2000) and rivet (reference 205-00-72430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
