Komatsu PC450LC-8 Fuel Injection Controller (#560004-) Parts
Komatsu PC450LC-8 fuel injection controller (#560004-) parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D125E-5F SN 562304-UP (For PC400-8/PC400LC-8/PC450-8/PC450LC-8/PC550LC-8) / Engine Fuel System / Fuel Injection Controller / Fuel Injection Controller (#560004-).
Checking current purchase options...

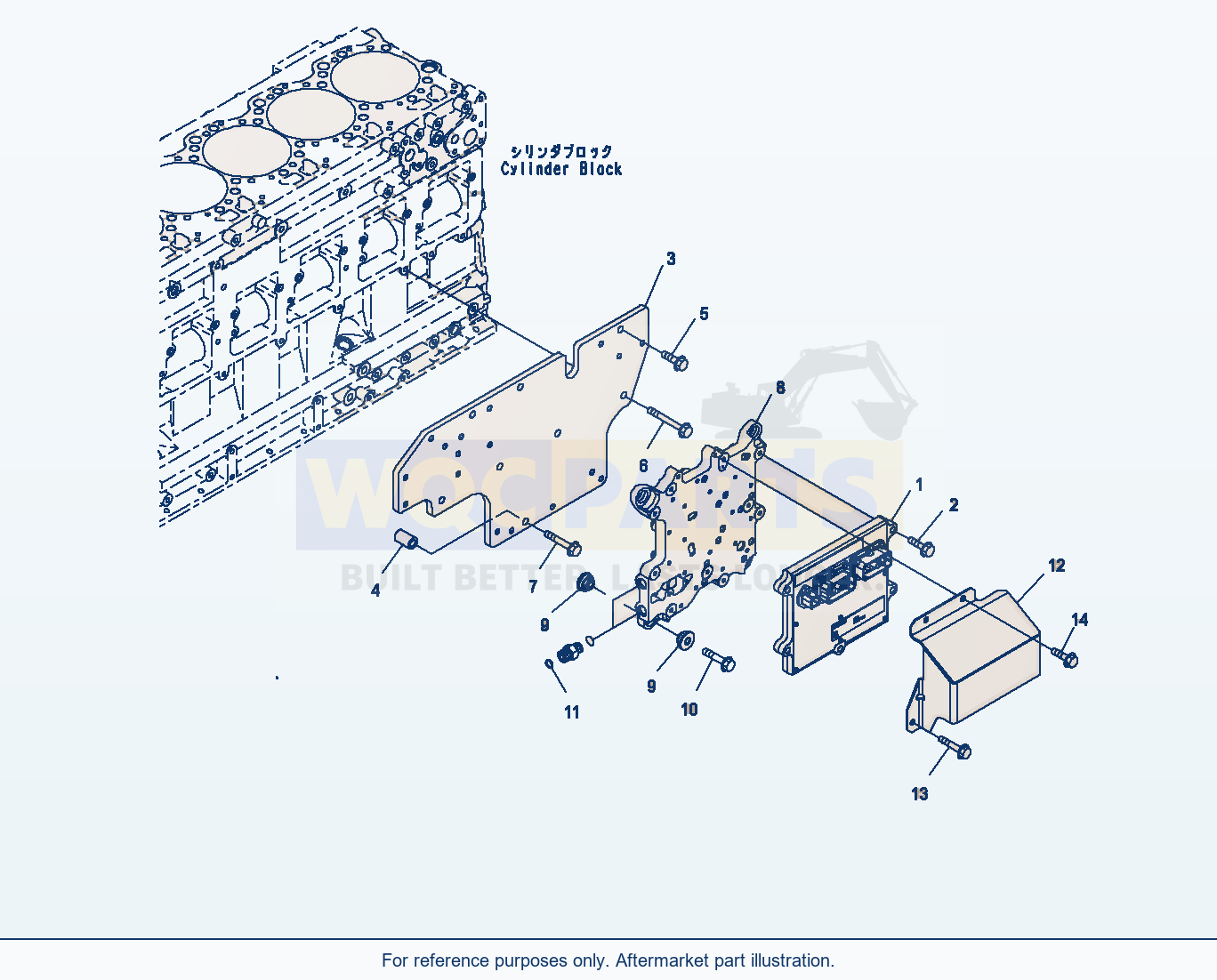

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 14 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | Controller AssemblySN: 560004-UP | 1 | Request quote | |||
| 2 | BoltSN: 560004-UP | 3 | Request quote | |||
| 3 | BracketSN: 560004-UP | 1 | Request quote | |||
| 4 | SpacerSN: 560004-UP | 1 | Request quote | |||
| 5 | BoltSN: 560004-UP | 3 | View product ↗ | |||
| 6 | BoltSN: 560004-UP | 4 | Request quote | |||
| 7 | BoltSN: 560004-UP | 1 | Request quote | |||
| 8 | CoolerSN: 560004-UP | 1 | Request quote | |||
| 9 | CushionSN: 560004-UP | 8 | Request quote | |||
| 10 | BoltSN: 560004-UP | 4 | Request quote | |||
| 11 | O-ringSN: 560004-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 12 | CoverSN: 560004-UP | 1 | Request quote | |||
| 13 | BoltSN: 560004-UP | 2 | Request quote | |||
| 14 | BoltSN: 560004-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu PC450LC-8 Fuel Injection Controller (#560004-) Parts
Use the Komatsu PC450LC-8 Fuel Injection Controller (#560004-) Parts listing to identify aftermarket replacement parts within the engine fuel system section. This excavator application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 14 listed part occurrences, including controller assembly (reference 600-461-1100), bracket (reference 6251-21-6210) and spacer (reference 6251-21-6220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D125E-5F (engine serial 562304-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
