Komatsu WA180-1 Wheel Loader Marks And Plates (Tbg/Abe Spec.) Parts
Komatsu WA180-1 marks and plates (tbg/abe spec.) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Special Application Parts / Marks And Plates (Tbg/Abe Spec.).
Checking current purchase options...

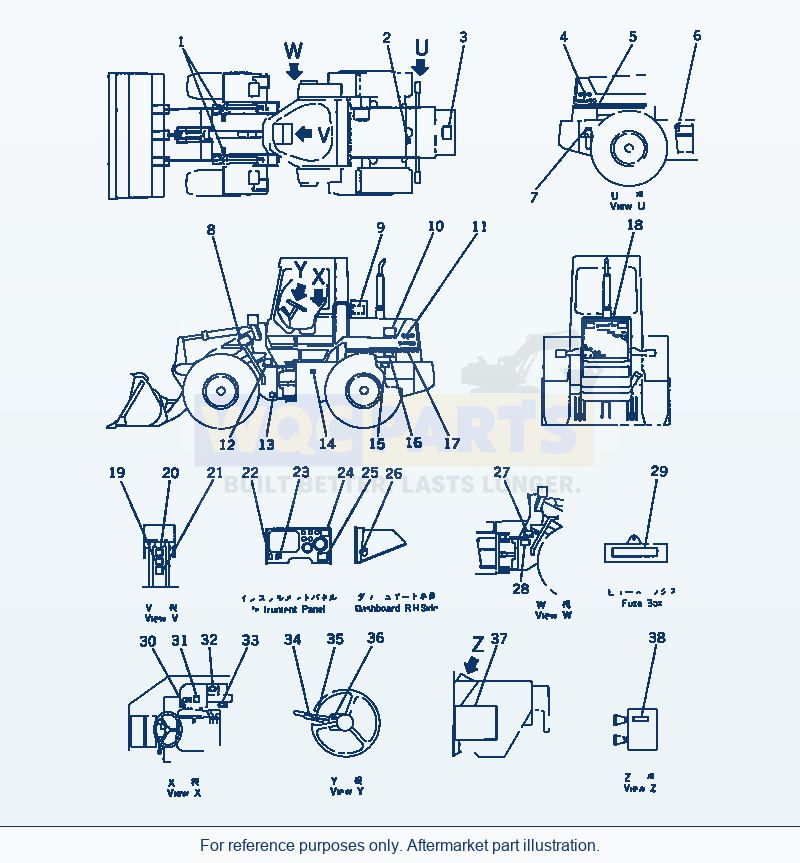

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, CAUTIONSN: 10001-UP | 2 | Request quote | |||
| 2 | PLATE, SAFETY,RADIATOR CAPSN: 10001-UP | 1 | Request quote | |||
| 3 | PLATE, CAUTION,BATTERYSN: 10001-UP | 1 | Request quote | |||
| 4 | PLATE, MARKSN: 10001-UP | 1 | Request quote | |||
| 5 | STRIPESN: 10001-UP | 1 | Request quote | |||
| 6 | PLATE, SAFETY,HYDRAULICSN: 10001-UP | 1 | Request quote | |||
| 7 | PLATE, CAUTION,FUELSN: 10001-UP | 1 | Request quote | |||
| 8 | PLATE, CAUTION,KEEP OUTSN: 10001-UP | 2 | Request quote | |||
| 9 | PLATE, INSTRUCTIONSN: 10001-UP | 1 | Request quote | |||
| 10 | PLATE, CAUTION,KEEP OUTSN: 10001-UP | 2 | Request quote | |||
| 11 | PLATE, MARKSN: 10001-UP | 1 | Request quote | |||
| 12 | PLATE, CAUTION,KEEP OUTSN: 10001-UP | 1 | Request quote | |||
| 13 | PLATE, CAUTION,FRAME LOCKSN: 10001-UP | 1 | Request quote | |||
| 14 | PLATE, CAUTION,OIL INSPECTIONSN: 10001-UP | 1 | Request quote | |||
| 15 | PLATE, CAUTIONSN: 10001-UP | 2 | Request quote | |||
| 16 | PLATE, SAFETY,FAN BELTSN: 10001-UP | 2 | Request quote | |||
| 17 | STRIPESN: 12001-UP | 2 | Request quote | |||
| 17 | STRIPESN: 10001-11999 | 2 | Request quote | |||
| 18 | PLATE, MARK,KOMATSUSN: 10001-UP | 1 | Request quote | |||
| 19 | PLATE, CAUTION,TRANSMISSION OIL TEMPERATURESN: 10001-UP | 1 | Request quote | |||
| 20 | PLATE, SAFETYSN: 10001-UP | 1 | Request quote | |||
| 21 | PLATE, CAUTION,STARTING AND INSPECTIONSN: 10001-UP | 1 | Request quote | |||
| 22 | PLATE, OPERATING,PARKING LAMP SWITCHSN: 10001-UP | 1 | Request quote | |||
| 23 | PLATE, OPERATING,WORKING LAMP SWITCHSN: 10001-UP | 1 | Request quote | |||
| 24 | PLATE, OPERATING,LIGHT SWITCHSN: 10001-UP | 1 | Request quote | |||
| 25 | PLATE, INSTRUCTION,ENGINE OPERATINGSN: 10001-UP | 1 | Request quote | |||
| 26 | PLATE, OPERATING,STARTER SWITCHSN: 10001-UP | 1 | Request quote | |||
| 27 | PLATE, CAUTION,KEEP OUTSN: 10001-UP | 1 | Request quote | |||
| 28 | PLATE, NAME,(LIMITED SUPPLY)SN: 10001-UP | 1 | Request quote | |||
| 28 | SCREWSN: 10001-UP | 4 | Request quote | |||
| 29 | PLATE,FUSE BOXSN: 10001-UP | 1 | Request quote | |||
| 30 | PLATE, OPERATING,LOCK LEVERSN: 10001-UP | 1 | Request quote | |||
| 31 | PLATE, OPERATING,LOADER CONTROLSN: 10001-UP | 1 | Request quote | |||
| 32 | PLATE, CAUTION,BRAKE OILSN: 10001-UP | 1 | Request quote | |||
| 33 | PLATE,FUSE BOXSN: 10001-UP | 1 | Request quote | |||
| 34 | PLATESN: 10001-UP | 1 | Request quote | |||
| 35 | PLATESN: 10001-UP | 1 | Request quote | |||
| 36 | PLATE, OPERATING,TRANSMISSION CONTROLSN: 10001-UP | 1 | Request quote | |||
| 37 | CHART, OILSN: 10001-UP | 1 | Request quote | |||
| 38 | PLATE,FUSE BOXSN: 10001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA180-1 Wheel Loader Marks And Plates (Tbg/Abe Spec.) Parts
Use the Komatsu WA180-1 Wheel Loader Marks And Plates (Tbg/Abe Spec.) Parts listing to identify aftermarket replacement parts within the special application parts section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 40 listed part occurrences, including plate, caution (reference 419-93-11930), plate, safety,radiator cap (reference 09668-02000) and plate, caution,battery (reference 416-93-11450). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
