Komatsu WA180-1 Wheel Loader Multi Purpose Bucket Parts

Komatsu WA180-1 multi purpose bucket parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Work Equipment / Multi Purpose Bucket.

WA180-1Machine serial 10001-UP47 part occurrences

Checking current purchase options...

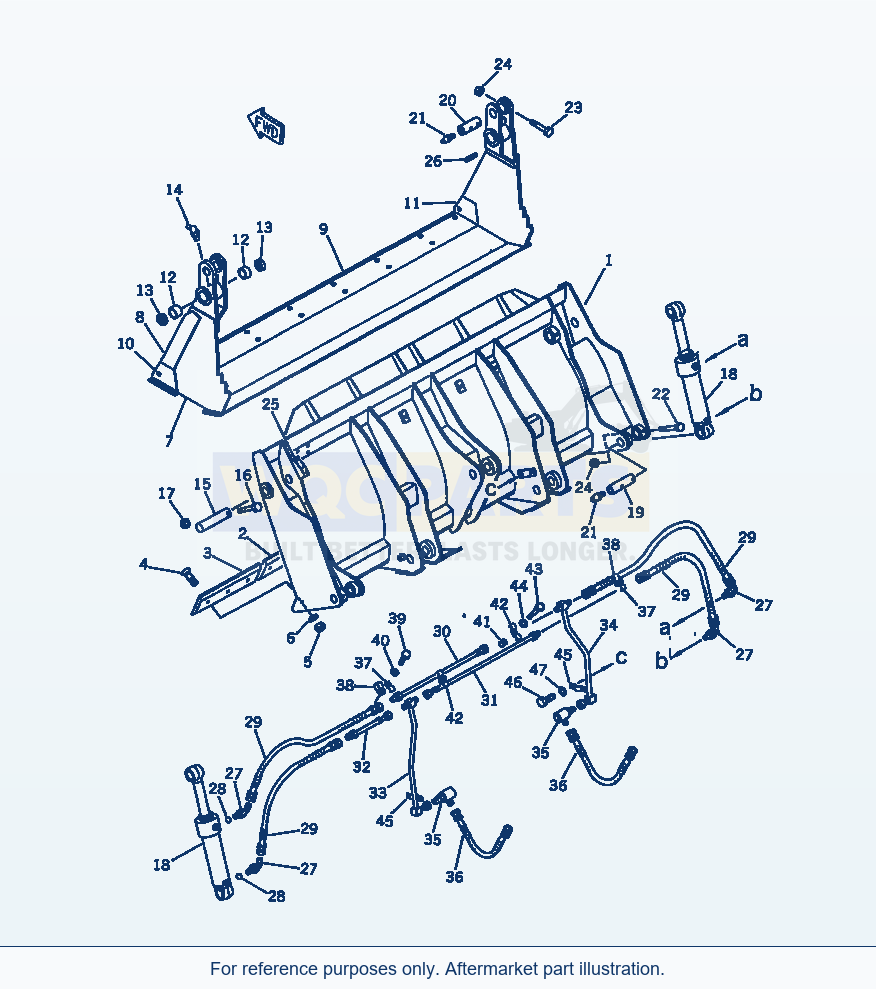

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 47 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	BLADESN: 10001-UP	1	Request quote
2	EDGESN: 10001-UP	1	Request quote
3	EDGESN: 10001-UP	2	Request quote
4	BOLTSN: 10001-UP	16	Request quote
5	NUTSN: 10001-UP	16	View product ↗
6	WASHERSN: 10001-UP	16	View product ↗
7	CLAMSN: 10001-UP	1	Request quote
8	PLATE,SIDE (WELDED)SN: 10001-UP	2	Request quote
9	EDGE (WELDED)SN: 10001-UP	1	Request quote
10	PLATE,L.H. (WELDED)SN: 10001-UP	1	Request quote
11	PLATE,R.H. (WELDED)SN: 10001-UP	1	Request quote
12	BUSHINGSN: 10001-UP	4	Request quote
13	SEAL,DUSTSN: 10001-UP	4	Request quote
14	FITTING,GREASESN: 10001-UP	2	View product ↗
15	PINSN: 10001-UP	2	Request quote
16	BOLTSN: 10001-UP	2	View product ↗
17	NUTSN: 10001-UP	2	View product ↗
18	CYLINDER ASS'YSN: 10001-UP	2	Request quote
19	PINSN: 10001-UP	2	Request quote
20	PINSN: 10001-UP	2	Request quote
21	FITTING,GREASESN: 10001-UP	4	View product ↗
22	BOLTSN: 10001-UP	2	Request quote
23	BOLTSN: 10001-UP	2	Request quote
24	NUTSN: 10001-UP	4	Request quote
25	PLATE, NAMESN: 10001-UP	1	Request quote
26	PIN,SPRINGSN: 10001-UP	2	Request quote
27	ELBOWSN: 10001-UP	4	View product ↗
28	O-RINGSN: 10001-UP	4	View product ↗
29	HOSESN: 10001-UP	4	Request quote
30	TUBE, 687MMSN: 10001-UP	1	Request quote
31	TUBE, 852MMSN: 10001-UP	1	Request quote
32	TUBESN: 10001-UP	1	Request quote
33	TUBESN: 10001-UP	1	Request quote
34	TUBESN: 10001-UP	1	Request quote
35	JOINTSN: 10001-UP	2	Request quote
36	HOSESN: 10001-UP	2	Request quote
37	CLAMPSN: 10001-UP	2	Request quote
38	CLIPSN: 10001-UP	2	Request quote
39	BOLTSN: 10001-UP	2	View product ↗
40	WASHERSN: 10001-UP	2	View product ↗
41	SPACERSN: 10001-UP	2	Request quote
42	CLAMPSN: 10001-UP	2	Request quote
43	BOLTSN: 10001-UP	2	View product ↗
44	WASHERSN: 10001-UP	2	View product ↗
45	CLAMPSN: 10001-UP	2	Request quote
46	BOLTSN: 10001-UP	4	View product ↗
47	WASHERSN: 10001-UP	4	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA180-1 Wheel Loader Multi Purpose Bucket Parts

Use the Komatsu WA180-1 Wheel Loader Multi Purpose Bucket Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 47 listed part occurrences, including blade (reference 417-823-1720), edge (reference 418-823-1310) and edge (reference 418-823-1320). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
