Komatsu WA180-1LC Wheel Loader Electrical System Rear Parts
Komatsu WA180-1LC electrical system rear parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Electrical System Rear.
Checking current purchase options...

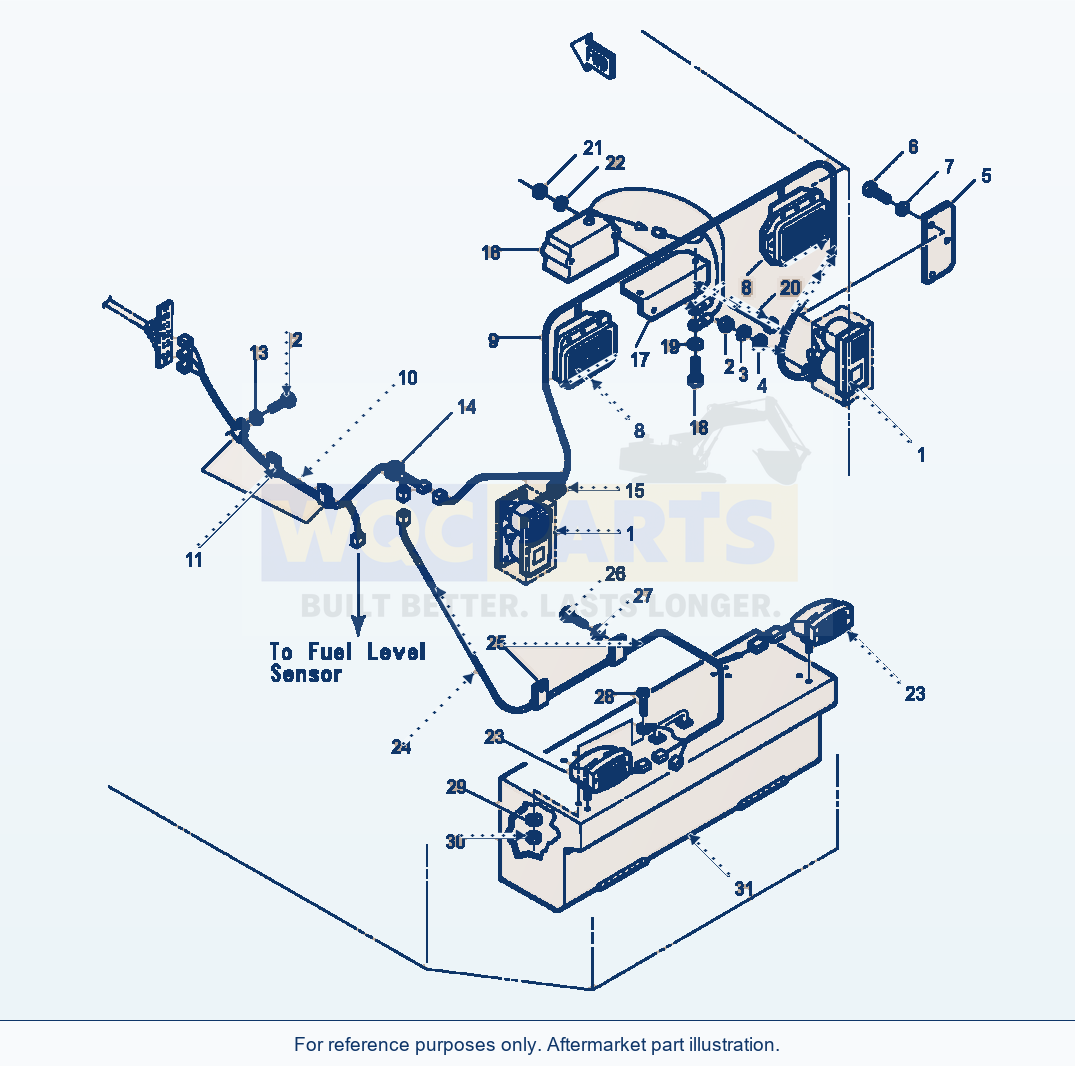

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LIGHT, REAR COMBINATION | 2 | Request quote | |||
| 1 | HOUSING | 1 | Request quote | |||
| 2 | LENS | 1 | Request quote | |||
| 3 | BULB 25/10W | 1 | View product ↗ | |||
| 4 | BULB 26W | 1 | View product ↗ | |||
| 5 | GASKET | 1 | Request quote | |||
| 6 | SCREW | 2 | Request quote | |||
| 2 | NUT | 4 | Request quote | |||
| 3 | WASHER, SPRING | 4 | Request quote | |||
| 4 | WASHER | 4 | Request quote | |||
| 5 | COVER | 2 | Request quote | |||
| 6 | BOLT | 6 | View product ↗ | |||
| 7 | WASHER | 6 | View product ↗ | |||
| 9 | HARNESS, REAR LIGHTS | 1 | Request quote | |||
| 10 | HARNESS, ENGINE HARNESS TO REAR LIGHT HARNESS | 1 | Request quote | |||
| 11 | CLIP | 3 | Request quote | |||
| 12 | BOLT | 3 | View product ↗ | |||
| 13 | WASHER | 3 | View product ↗ | |||
| 14 | GROMMET | 1 | Request quote | |||
| 15 | GROMMET | 2 | View product ↗ | |||
| 16 | ALARM, BACK-UP | 1 | Request quote | |||
| 17 | PLATE, MOUNT BACK-UP ALARM | 1 | Request quote | |||
| 18 | BOLT, BACK-UP ALARM MOUNTING PLATE | 2 | Request quote | |||
| 19 | WASHER | 2 | View product ↗ | |||
| 20 | BOLT, MOUNT BACK-UP ALARM | 2 | Request quote | |||
| 21 | NUT | 2 | Request quote | |||
| 22 | WASHER | 2 | View product ↗ | |||
| 23 | LIGHT, BACK-UP | 2 | Request quote | |||
| 29 | CONNECTOR | 1 | Request quote | |||
| 30 | BULB | 1 | View product ↗ | |||
| 31 | LENS | 1 | Request quote | |||
| 24 | HARNESS, BACK-UP LIGHT | 1 | Request quote | |||
| 25 | CLIP, BACK-UP LIGHT HARNESS | 2 | Request quote | |||
| 26 | BOLT, BACK-UP LIGHT HARNESS CLIP | 2 | View product ↗ | |||
| 27 | WASHER | 2 | View product ↗ | |||
| 28 | SCREW, BACK-UP LIGHT GROUND | 1 | Request quote | |||
| 29 | WASHER | 1 | Request quote | |||
| 30 | NUT | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
WORK LAMP ASSEMBLY (SEE PG 01-078)
BATTERY BOX (SEE PG 01-046)
Using Komatsu WA180-1LC Wheel Loader Electrical System Rear Parts
Use the Komatsu WA180-1LC Wheel Loader Electrical System Rear Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including light, rear combination (reference 417-06-13510), housing (reference 417-06-13580) and lens (reference 417-06-13520). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
