Komatsu WA180-1LC Wheel Loader Additional Counterweight Parts
Komatsu WA180-1LC additional counterweight parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Additional Counterweight.
Checking current purchase options...

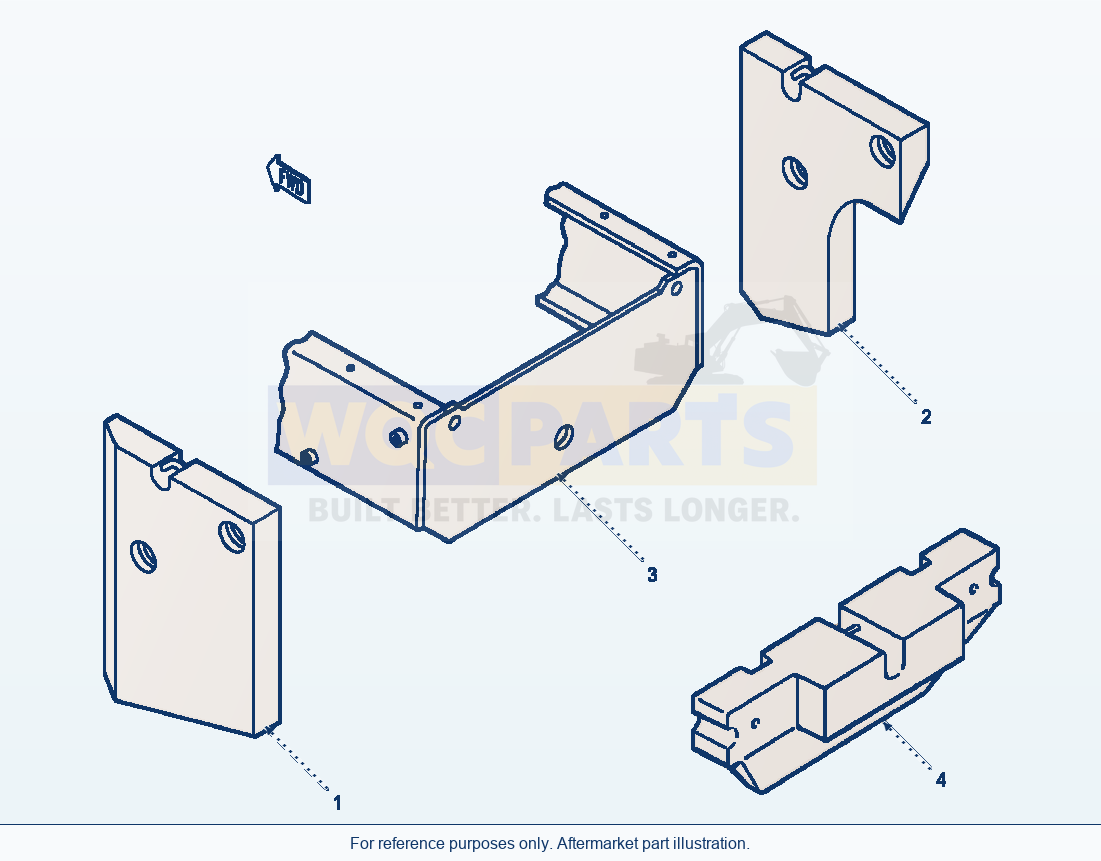

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WEIGHT, COUNTER - LHF1 | 1 | Request quote | |||
| 1 | BOLT, MOUNT SIDE WEIGHTS | 2 | View product ↗ | |||
| 2 | WASHER | 2 | View product ↗ | |||
| 1 | WEIGHT, COUNTER - LHF2 | 1 | Request quote | |||
| 4 | BOLT, MOUNT SIDE WEIGHTS | 2 | View product ↗ | |||
| 5 | WASHER | 2 | View product ↗ | |||
| 2 | WEIGHT, COUNTER - RHF1 | 1 | Request quote | |||
| 7 | BOLT, MOUNT SIDE WEIGHTS | 2 | View product ↗ | |||
| 8 | WASHER | 2 | View product ↗ | |||
| 2 | WEIGHT, COUNTER - RHF2 | 1 | Request quote | |||
| 10 | BOLT, MOUNT SIDE WEIGHTS | 2 | View product ↗ | |||
| 11 | WASHER | 2 | View product ↗ | |||
| 4 | WEIGHT, COUNTER - REARF2 | 1 | Request quote | |||
| 15 | BOLT, MOUNT REAR WEIGHT | 2 | Request quote | |||
| 16 | WASHER | 4 | View product ↗ | |||
| 17 | NUT | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
FRAME, REAR (SEE PG 05-006)
FRAME, REAR (SEE PG 05-006)
F1 - USED ON MACHINES WITH STANDARD FRAME MODIFIED
FOR ADDITIONAL COUNTERWEIGHTS.
F2 - USED ON MACHINES WITH STANDARD FRAME MODIFIED
FOR PARALLEL TOOL CARRIER.
Using Komatsu WA180-1LC Wheel Loader Additional Counterweight Parts
Use the Komatsu WA180-1LC Wheel Loader Additional Counterweight Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including weight, counter - lh (reference 417-974-1212), weight, counter - lh (reference 417-T80-A070) and weight, counter - rh (reference 417-974-1231). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
