Komatsu WA180-1LC Wheel Loader Defroster Piping Parts
Komatsu WA180-1LC defroster piping parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Defroster Piping.
Checking current purchase options...

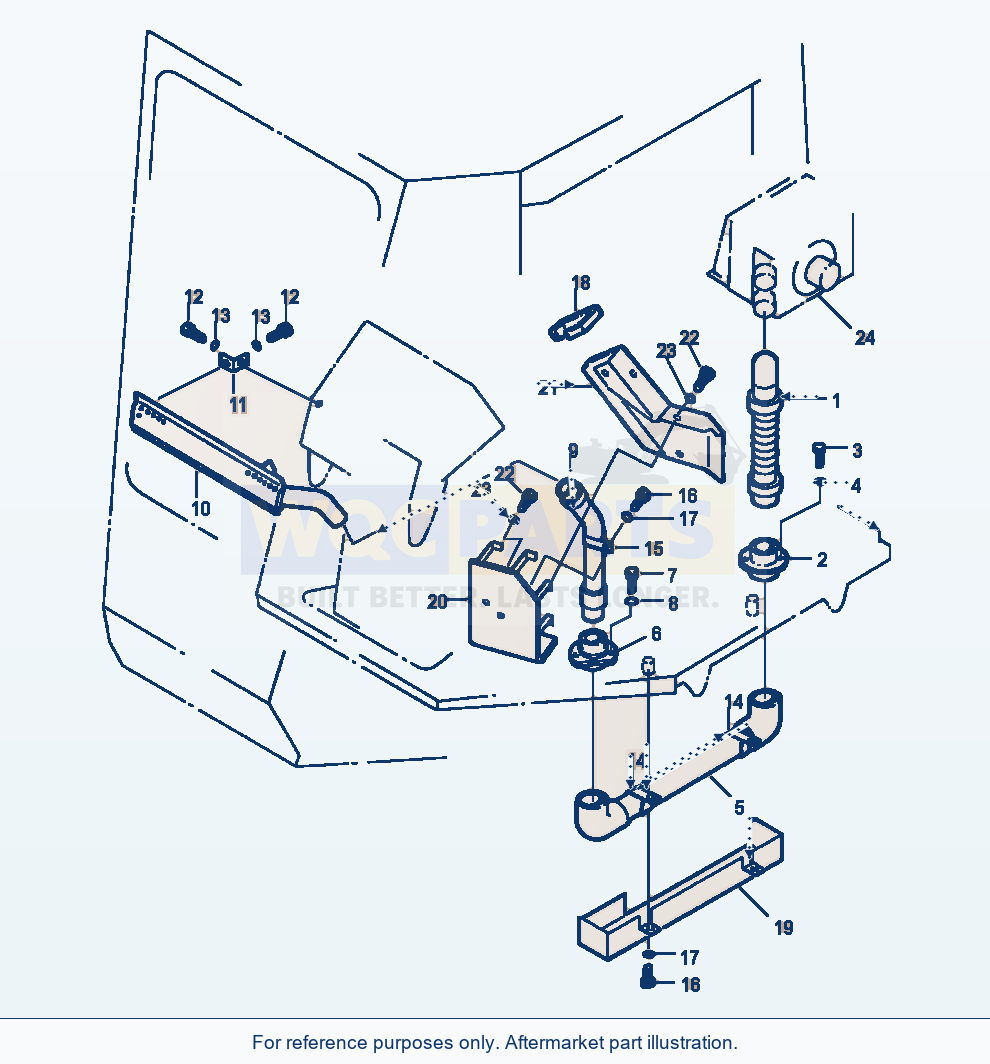

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOSE, REAR - HEATER TO FLOOR | 1 | Request quote | |||
| 2 | COUPLING, REAR | 1 | Request quote | |||
| 3 | BOLT, REAR COUPLING | 2 | View product ↗ | |||
| 4 | WASHER | 2 | View product ↗ | |||
| 5 | HOSE, BOTTOM - UNDER FLOOR | 1 | Request quote | |||
| 6 | COUPLING, FORWARD | 1 | Request quote | |||
| 7 | BOLT, FORWARD COUPLING | 2 | View product ↗ | |||
| 8 | WASHER | 2 | View product ↗ | |||
| 9 | HOSE, FORWARD - FLOOR TO DEFROSTER DUCT | 1 | Request quote | |||
| 10 | DUCT, DEFROSTER | 1 | Request quote | |||
| 11 | BRACKET, DUCT MOUNTING | 1 | Request quote | |||
| 12 | BOLT, DUCT MOUNTING | 3 | Request quote | |||
| 13 | WASHER | 3 | View product ↗ | |||
| 14 | CLIP, BOTTOM HOSE UNDER FLOOR | 2 | Request quote | |||
| 15 | CLIP, FORWARD HOSE TO DUCT | 1 | Request quote | |||
| 16 | BOLT, CLIPS AND BOTTOM GUARD | 3 | View product ↗ | |||
| 17 | WASHER | 3 | View product ↗ | |||
| 18 | PROTECTOR, REAR GUARD | 1 | Request quote | |||
| 19 | GUARD, BOTTOM HOSE | 1 | Request quote | |||
| 20 | GUARD, FORWARD HOSE | 1 | Request quote | |||
| 21 | GUARD, REAR HOSE | 1 | Request quote | |||
| 22 | BOLT, FORWARD AND REAR GUARDS | 7 | View product ↗ | |||
| 23 | WASHER | 7 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
HEATER ASSEMBLY (SEE PG 05-092)
Using Komatsu WA180-1LC Wheel Loader Defroster Piping Parts
Use the Komatsu WA180-1LC Wheel Loader Defroster Piping Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including hose, rear - heater to floor (reference 416-942-1730), coupling, rear (reference 416-942-1360) and hose, bottom - under floor (reference 417-942-1260). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
