Komatsu WA180-1LC Wheel Loader Fenders And Ladders Parts
Komatsu WA180-1LC fenders and ladders parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Fenders And Ladders.
Checking current purchase options...

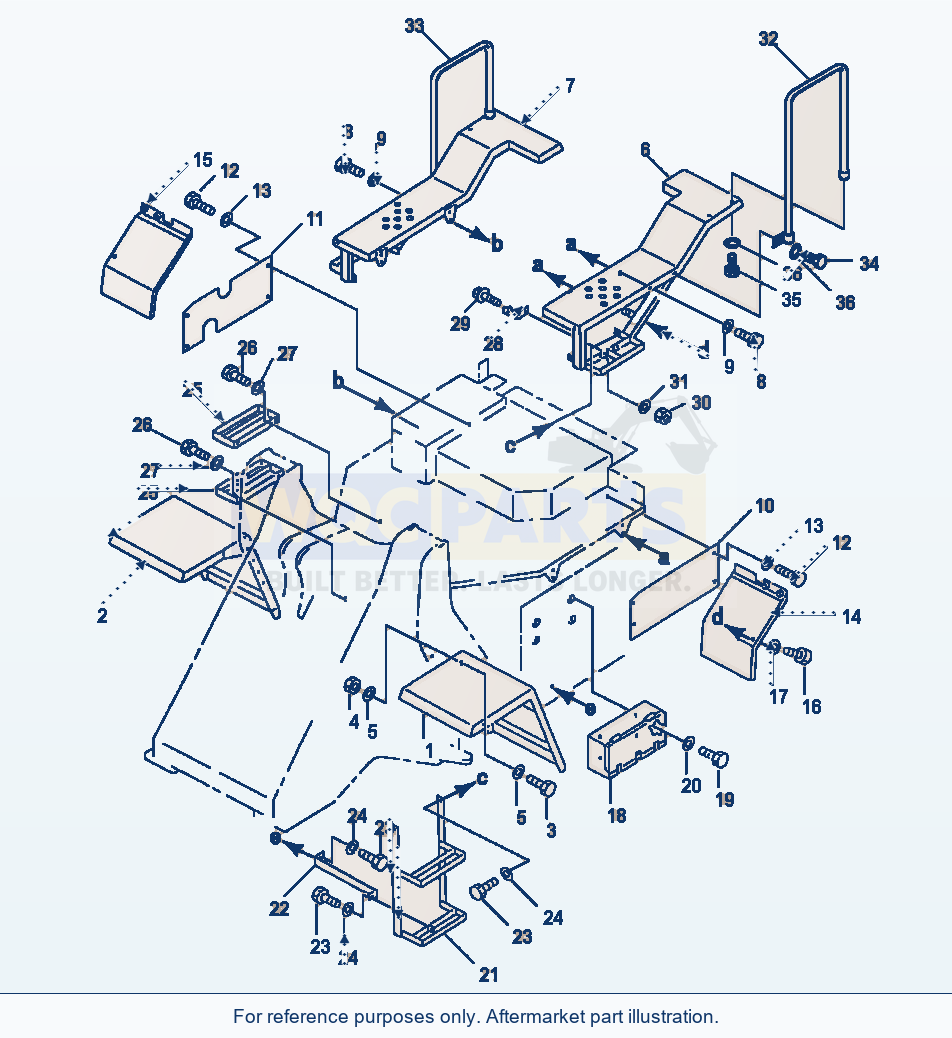

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FENDER, LH FRONT | 1 | Request quote | |||
| 2 | FENDER, RH FRONT | 1 | Request quote | |||
| 3 | BOLT, MOUNT FRONT FENDERS | 8 | Request quote | |||
| 4 | NUT | 8 | View product ↗ | |||
| 5 | WASHER | 16 | View product ↗ | |||
| 6 | FENDER, LH REAR | 1 | Request quote | |||
| 7 | FENDER, RH REAR | 1 | Request quote | |||
| 8 | BOLT, MOUNT REAR FENDERS | 8 | Request quote | |||
| 9 | WASHER | 8 | View product ↗ | |||
| 10 | COVER, LH (W/O AIR CONDITIONING)F1 | 1 | Request quote | |||
| 10 | COVER, LH (W/EAGLE AIR CONDITIONER)F2 | 1 | Request quote | |||
| 11 | COVER, RH (W/O GROUND DRIVEN STEERING)F3 | 1 | Request quote | |||
| 12 | COVER, RH (W/GROUND DRIVEN STEERING)F4 | 1 | Request quote | |||
| 12 | BOLT, MOUNT COVERS | 8 | Request quote | |||
| 13 | WASHER | 8 | View product ↗ | |||
| 14 | COVER, LH | 1 | Request quote | |||
| 15 | COVER, RH | 1 | Request quote | |||
| 16 | BOLT, MOUNT COVERS | 6 | Request quote | |||
| 17 | WASHER | 6 | View product ↗ | |||
| 18 | BOX, TOOL | 1 | Request quote | |||
| 19 | BOLT, MOUNT TOOL BOX | 4 | Request quote | |||
| 20 | WASHER | 4 | View product ↗ | |||
| 21 | LADDER, ENTRY - LH SIDE | 1 | Request quote | |||
| 22 | BRACKET | 1 | Request quote | |||
| 23 | BOLT, MOUNT LADDER TO FENDER AND BRACKET | 4 | Request quote | |||
| 24 | WASHER | 4 | View product ↗ | |||
| 25 | STEP, ENTRY - RH SIDE | 2 | Request quote | |||
| 26 | BOLT, MOUNT STEPS | 4 | Request quote | |||
| 27 | WASHER | 4 | View product ↗ | |||
| 28 | BRACKET, MOUNT LADDER TO FENDER | 1 | Request quote | |||
| 29 | BOLT, MOUNT BRACKET TO FENDER | 2 | View product ↗ | |||
| 30 | NUT | 2 | View product ↗ | |||
| 31 | WASHER | 2 | View product ↗ | |||
| 32 | RAIL, HAND - LH | 1 | Request quote | |||
| 33 | RAIL, HAND - RH | 1 | Request quote | |||
| 34 | BOLT, MOUNT HAND RAILS | 2 | Request quote | |||
| 35 | BOLT, MOUNT HAND RAILS | 2 | Request quote | |||
| 36 | WASHER | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
F1 - USED ON MACHINES NOT EQUIPPED WITH EAGLE AIR
CONDITIONER.
F2 - USED ON MACHINES EQUIPPED WITH EAGLE AIR
CONDITIONER - S/N A75654 AND UP.
F3 - USED ON MACHINES NOT EQUIPPED WITH GROUND
DRIVEN STEERING.
F4 - USED ON MACHINES EQUIPPED WITH GROUND DRIVEN
STEERING.
Using Komatsu WA180-1LC Wheel Loader Fenders And Ladders Parts
Use the Komatsu WA180-1LC Wheel Loader Fenders And Ladders Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including fender, lh front (reference 417-54-11523), fender, rh front (reference 417-54-11513) and fender, lh rear (reference 416-54-14910). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
