Komatsu WA180-1LC Wheel Loader Floor Mats Parts
Komatsu WA180-1LC floor mats parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Floor Mats.
Checking current purchase options...

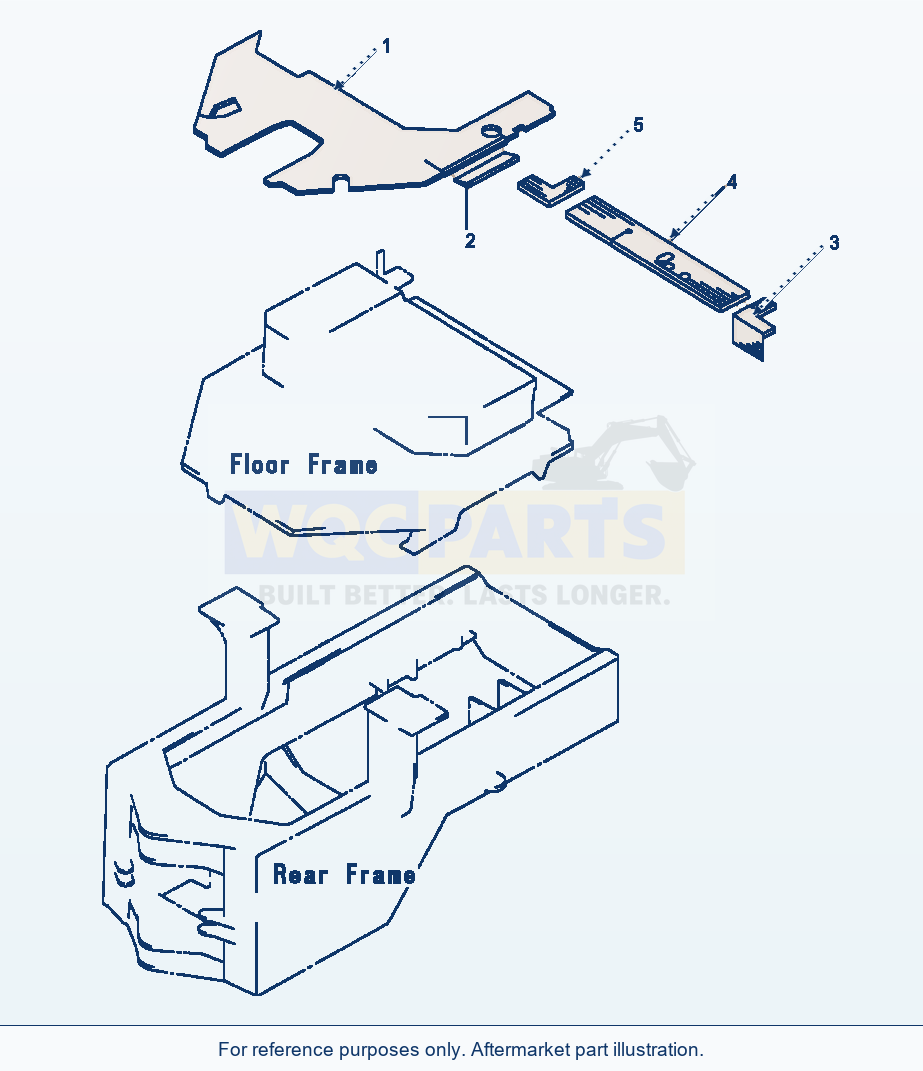

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | MAT, FLOOR (W/ROPS CANOPY)F1 | 1 | Request quote | |||
| 1 | MAT, FLOOR (W/ROPS CAB)F2 | 1 | Request quote | |||
| 2 | MAT, FLOOR (W/HEATER UNIT)F3 | 1 | Request quote | |||
| 3 | MAT, FLOOR (W/HEATER UNIT)F4 | 1 | Request quote | |||
| 2 | SHEET (W/O HEATER UNIT)F1, F2 | 1 | Request quote | |||
| 5 | SHEET (W/HEATER UNIT)F3, F4 | 1 | Request quote | |||
| 3 | MAT, LH REAR | 1 | Request quote | |||
| 4 | MAT, CENTER REAR (W/O HEATER UNIT)F1, F2 | 1 | Request quote | |||
| 8 | MAT, CENTER REAR (W/HEATER UNIT)F3, F4 | 1 | Request quote | |||
| 5 | MAT, RH REAR | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
F1 - USED ON MACHINES EQUIPPED WITH ROPS CANOPY.
F2 - USED ON MACHINES EQUIPPED WITH ROPS CAB.
F3 - USED ON MACHINES EQUIPPED WITH EAGLE HEATERS
S/N A75464 AND UP.
F4 - USED ON MACHINES EQUIPPED WITH KOMATSU HEATERS
S/N A75001 THRU A75463.
Using Komatsu WA180-1LC Wheel Loader Floor Mats Parts
Use the Komatsu WA180-1LC Wheel Loader Floor Mats Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including mat, floor (w/rops canopy) (reference 416-945-1111), mat, floor (w/rops cab) (reference 416-945-A110) and mat, floor (w/heater unit) (reference 416-945-A121). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
