Komatsu WA180-1LC Wheel Loader Front Frame Parts
Komatsu WA180-1LC front frame parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Front Frame.
Checking current purchase options...

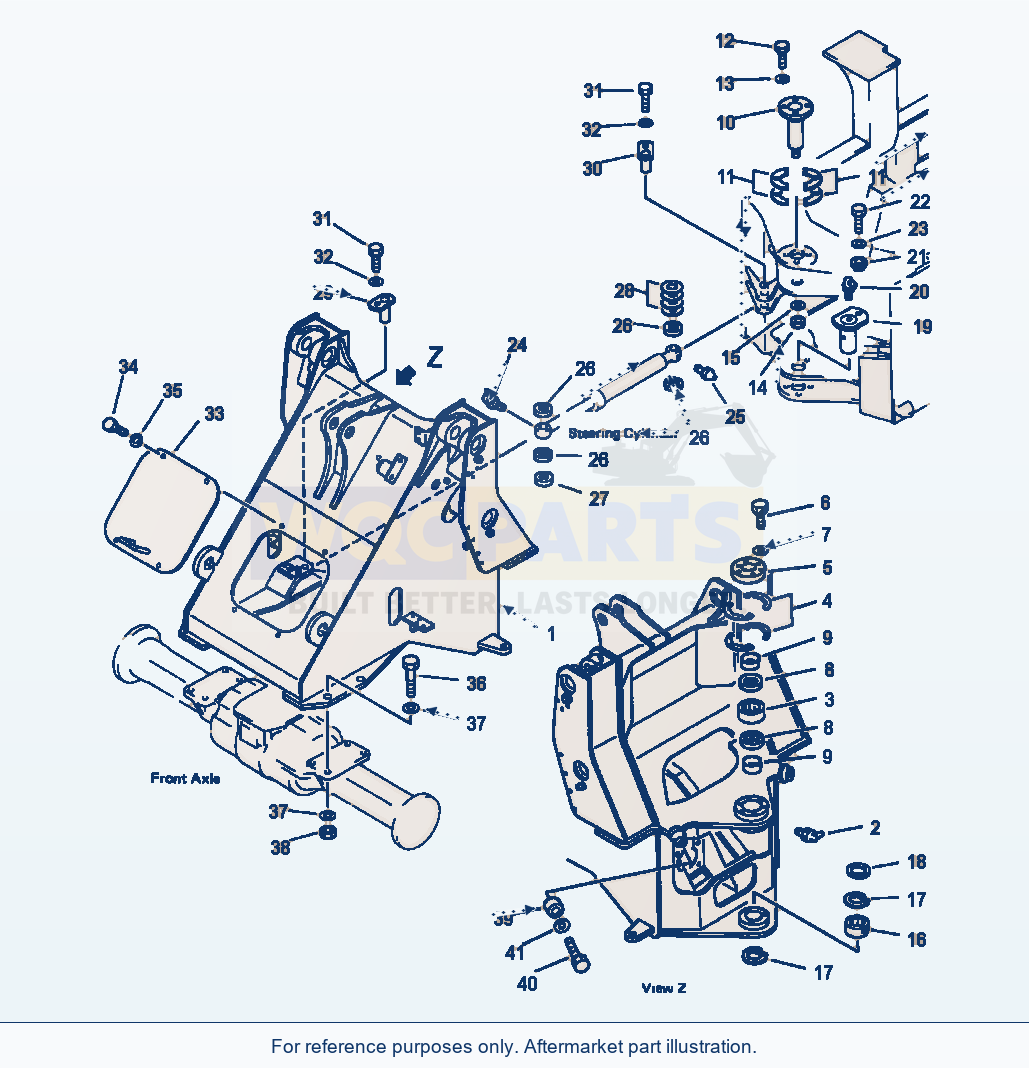

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 53 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, FRONTF1 | 1 | Request quote | |||
| 1 | FRAME, FRONTF2 | 1 | Request quote | |||
| 2 | FRAME, FRONTF3 | 1 | Request quote | |||
| 2 | FITTING, GREASE (UPPER HINGE) | 1 | View product ↗ | |||
| 3 | BEARING, UPPER HINGE | 1 | Request quote | |||
| 4 | SHIM, 0.1MM (UPPER HINGE) | 4 | Request quote | |||
| 6 | SHIM, 0.2MM | 2 | Request quote | |||
| 7 | SHIM, 0.5MM | 4 | Request quote | |||
| 5 | RETAINER, UPPER HINGE | 1 | Request quote | |||
| 6 | BOLT, UPPER HINGE RETAINER | 6 | Request quote | |||
| 7 | WASHER | 6 | View product ↗ | |||
| 8 | SEAL, DUST (UPPER HINGE) | 2 | View product ↗ | |||
| 9 | SPACER, UPPER HINGE | 2 | View product ↗ | |||
| 10 | PIN, UPPER HINGE | 1 | View product ↗ | |||
| 11 | SHIM, 0.1MM (UPPER HINGE PIN) | 4 | Request quote | |||
| 15 | SHIM, 0.2MM | 4 | Request quote | |||
| 16 | SHIM, 0.5MM | 2 | Request quote | |||
| 17 | SHIM, 1.0MM | 4 | Request quote | |||
| 12 | BOLT, UPPER HINGE PIN | 4 | Request quote | |||
| 13 | WASHER | 4 | View product ↗ | |||
| 14 | NUT, LOCKING - UPPER HINGE PIN | 1 | Request quote | |||
| 15 | WASHER | 1 | Request quote | |||
| 16 | BEARING, ROLLER (LOWER HINGE) | 1 | View product ↗ | |||
| 17 | RING, SNAP (LOWER HINGE) | 2 | Request quote | |||
| 18 | WASHER | 1 | Request quote | |||
| 19 | PIN, LOWER HINGE | 1 | Request quote | |||
| 20 | FITTING, GREASE (LOWER HINGE) | 1 | View product ↗ | |||
| 21 | BUSHING, LOWER HINGE | 1 | View product ↗ | |||
| 22 | BOLT, LOWER HINGE PIN | 1 | View product ↗ | |||
| 23 | WASHER | 1 | View product ↗ | |||
| 24 | FITTING, GREASE (STEERING CYLINDER) | 2 | View product ↗ | |||
| 25 | FITTING, GREASE (STEERING CYLINDER) | 2 | View product ↗ | |||
| 26 | SEAL, DUST (STEERING CYLINDER) | 8 | View product ↗ | |||
| 27 | SPACER (STEERING CYLINDER) | 2 | Request quote | |||
| 28 | SHIM, 1.0MM (STEERING CYLINDER) | 8 | Request quote | |||
| 35 | SHIM, 0.5MM | 4 | View product ↗ | |||
| 29 | PIN, MOUNT STEERING CYLINDER (FRONT) | 2 | View product ↗ | |||
| 37 | PIN, MOUNT STEERING CYLINDER (FRONT) | 2 | View product ↗ | |||
| 30 | PIN, MOUNT STEERING CYLINDER (REAR) | 2 | View product ↗ | |||
| 39 | PIN, MOUNT STEERING CYLINDER (REAR) | 2 | Request quote | |||
| 31 | BOLT, CYLINDER MOUNTING PINS | 4 | View product ↗ | |||
| 32 | WASHER | 4 | View product ↗ | |||
| 33 | COVER, FRONT ACCESSF1 | 1 | Request quote | |||
| 43 | COVER, FRONT ACCESSF2 | 1 | Request quote | |||
| 44 | COVER, FRONT ACCESSF3 | 1 | Request quote | |||
| 34 | BOLT, MOUNT ACCESS COVER | 4 | View product ↗ | |||
| 35 | WASHER | 4 | View product ↗ | |||
| 36 | BOLT, MOUNT FRONT AXLE | 8 | Request quote | |||
| 37 | WASHER | 16 | Request quote | |||
| 38 | NUT | 8 | View product ↗ | |||
| 39 | BUMPER | 2 | View product ↗ | |||
| 40 | BOLT, MOUNT BUMPER | 2 | Request quote | |||
| 41 | WASHER | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
F1 - FOR MACHINES NOT EQUIPPED WITH FRONT HYDRAULIC
ATTACHMENT.
F2 - FOR MACHINES EQUIPPED WITH FRONT HYDRAULIC
ATTACHMENT.
F3 - FOR MACHINES EQUIPPED WITH PARALLEL TOOL CARRIER
ATTACHMENT.
Using Komatsu WA180-1LC Wheel Loader Front Frame Parts
Use the Komatsu WA180-1LC Wheel Loader Front Frame Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 53 listed part occurrences, including frame, front (reference 417-46-11711), frame, front (reference 417-877-A110) and frame, front (reference 417-T80-A000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
