Komatsu WA180-1LC Wheel Loader Operator'S Seat Rigid Type Parts
Komatsu WA180-1LC operator's seat rigid type parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Operator'S Seat Rigid Type.
Checking current purchase options...

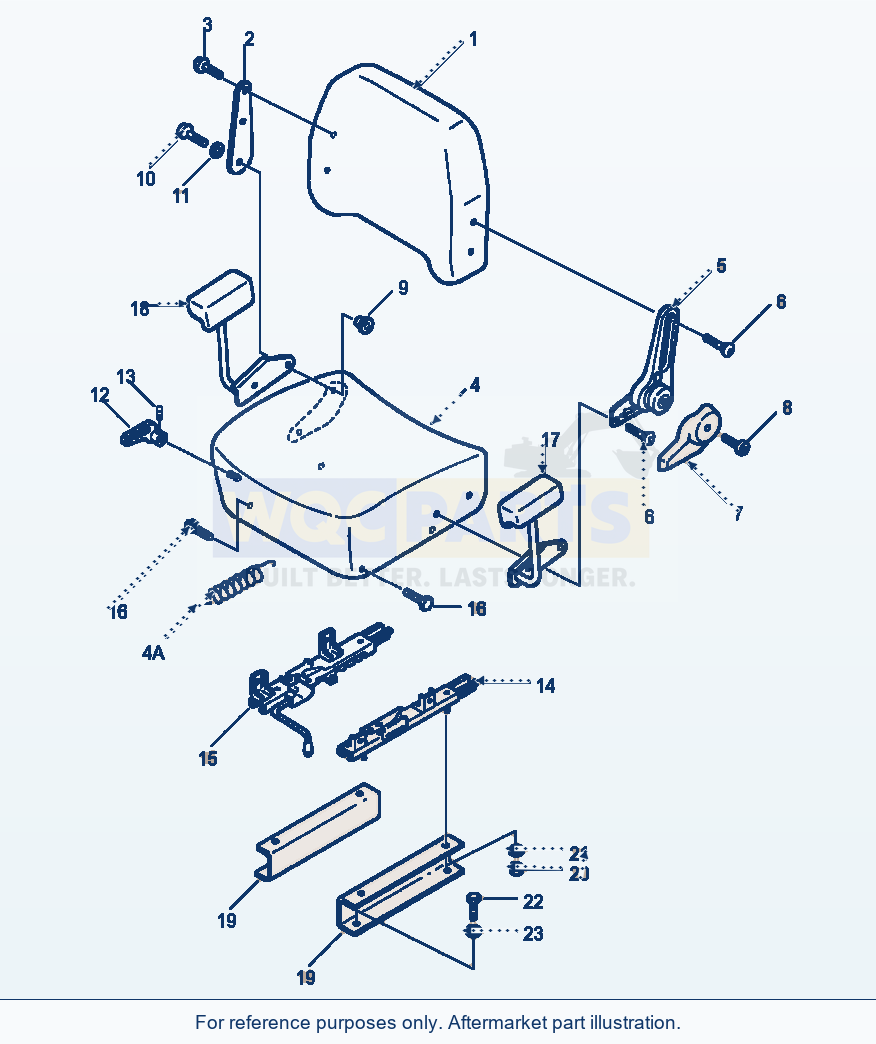

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | SEAT ASSEMBLY, RIGID TYPE | 1 | Request quote | |||
| 1 | SEAT ASSEMBLY | 1 | Request quote | |||
| 1 | CUSHION, BACK | 1 | Request quote | |||
| 2 | BRACKET | 1 | Request quote | |||
| 3 | SCREW, MOUNT BRACKET TO BACK CUSHION | 2 | Request quote | |||
| 4 | CUSHION, SEAT | 1 | Request quote | |||
| 4A | SPRING | 1 | Request quote | |||
| 5 | BRACKET, RECLINING | 1 | Request quote | |||
| 6 | SCREW, MOUNT RECLINER BRACKET TO BACK AND SEAT | 2 | Request quote | |||
| 7 | COVER, RECLINING BRACKET | 1 | Request quote | |||
| 8 | SCREW, MOUNT COVER | 1 | Request quote | |||
| 9 | BUSHING | 1 | Request quote | |||
| 10 | SCREW, BRACKET TO SEAT CUSHION | 1 | Request quote | |||
| 11 | WASHER | 1 | Request quote | |||
| 12 | LEVER | 1 | Request quote | |||
| 13 | SCREW, MOUNT LEVER | 1 | Request quote | |||
| 14 | SLIDE, LH | 1 | Request quote | |||
| 15 | SLIDE, RH | 1 | Request quote | |||
| 16 | BOLT, SEAT ASSEMBLY TO SLIDES | 4 | Request quote | |||
| 17 | ARM REST ASSEMBLY, LH | 1 | Request quote | |||
| 18 | ARM REST ASSEMBLY, RH | 1 | Request quote | |||
| 19 | SUPPORT, MOUNTING | 2 | Request quote | |||
| 20 | NUT, MOUNT SLIDES TO SUPPORTS | 4 | Request quote | |||
| 21 | WASHER | 4 | View product ↗ | |||
| 22 | BOLT, MOUNT SUPPORTS TO FLOOR | 4 | Request quote | |||
| 23 | WASHER | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA180-1LC Wheel Loader Operator'S Seat Rigid Type Parts
Use the Komatsu WA180-1LC Wheel Loader Operator'S Seat Rigid Type Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including seat assembly, rigid type (reference 417-57-11211), seat assembly (reference 417-57-11220) and cushion, back (reference 417-57-11250). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
