Komatsu WA180-1LC Wheel Loader Rear Frame Parts
Komatsu WA180-1LC rear frame parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame / Rear Frame.
Checking current purchase options...

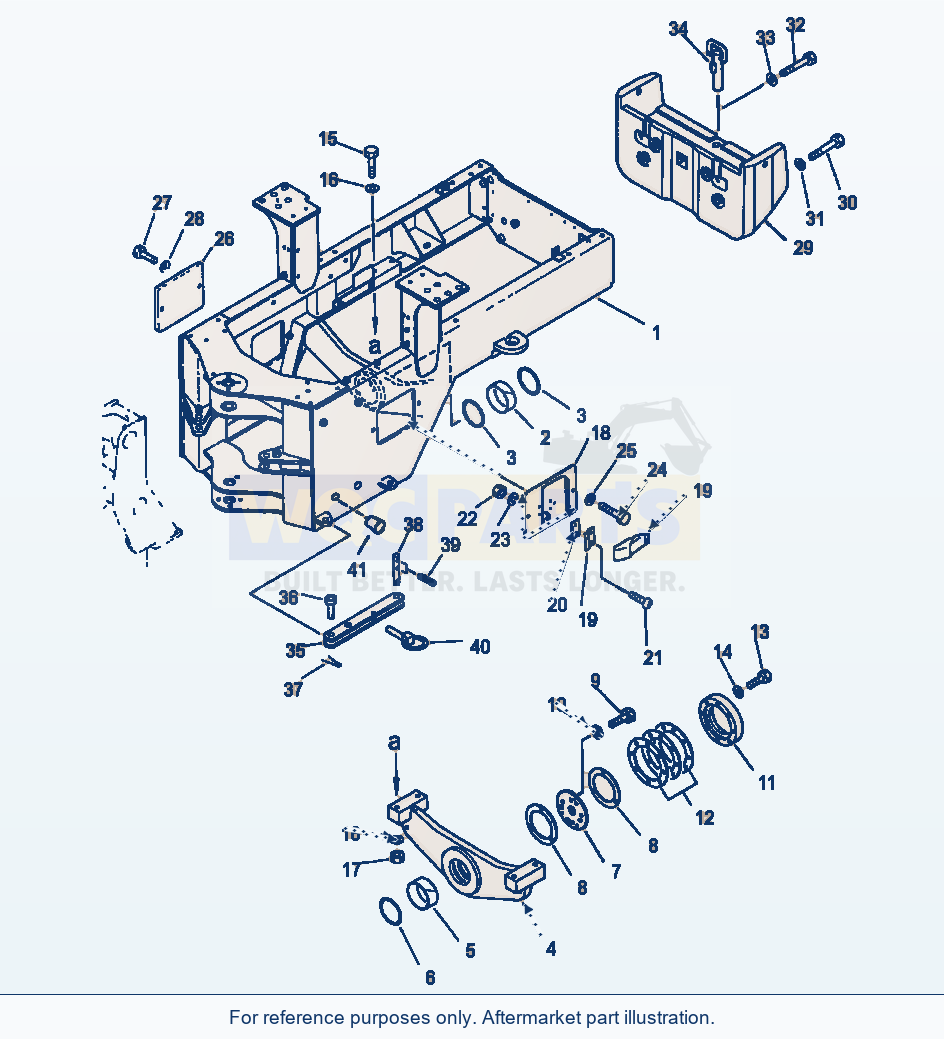

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 44 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, REARF1 | 1 | Request quote | |||
| 1 | FRAME, REAR (MODIFIED)F2 | 1 | Request quote | |||
| 2 | FRAME, REAR (MODIFIED)F3 | 1 | Request quote | |||
| 3 | FRAME, REAR (MODIFIED)F4 | 1 | Request quote | |||
| 2 | PACKING | 1 | View product ↗ | |||
| 3 | O-RING | 2 | View product ↗ | |||
| 4 | SUPPORT, REAR AXLE | 1 | Request quote | |||
| 5 | BUSHING | 1 | View product ↗ | |||
| 6 | O-RING | 1 | View product ↗ | |||
| 7 | PLATE, THRUST | 1 | Request quote | |||
| 8 | WASHER, THRUST | 2 | View product ↗ | |||
| 9 | BOLT, THRUST PLATE | 8 | View product ↗ | |||
| 10 | WASHER | 8 | View product ↗ | |||
| 11 | CAP, TRUNNION | 1 | Request quote | |||
| 12 | SHIM, 0.2MM | 3 | Request quote | |||
| 13 | BOLT, TRUNNION CAP | 8 | View product ↗ | |||
| 14 | WASHER | 8 | View product ↗ | |||
| 15 | BOLT, MOUNT REAR AXLE SUPPORT | 4 | Request quote | |||
| 16 | WASHER | 8 | Request quote | |||
| 17 | NUT | 4 | Request quote | |||
| 18 | COVER, LH - REAR FRAME ACCESS | 1 | Request quote | |||
| 19 | HOLDER | 1 | Request quote | |||
| 20 | PLATE | 1 | Request quote | |||
| 21 | SCREW, HOLDER | 5 | Request quote | |||
| 22 | NUT | 5 | Request quote | |||
| 23 | WASHER, SPRING | 5 | View product ↗ | |||
| 24 | BOLT, LH ACCESS COVER | 2 | Request quote | |||
| 25 | WASHER | 2 | View product ↗ | |||
| 26 | COVER, RH - REAR FRAME ACCESS | 1 | Request quote | |||
| 27 | BOLT, RH ACCESS COVER | 2 | Request quote | |||
| 28 | WASHER | 2 | View product ↗ | |||
| 29 | WEIGHT, COUNTER | 1 | Request quote | |||
| 30 | BOLT, COUNTERWEIGHT | 2 | Request quote | |||
| 31 | WASHER | 2 | View product ↗ | |||
| 32 | BOLT, COUNTERWEIGHT | 2 | View product ↗ | |||
| 33 | WASHER | 2 | View product ↗ | |||
| 34 | PIN, COUNTERWEIGHT | 1 | Request quote | |||
| 35 | BAR, FRAME LOCK | 1 | Request quote | |||
| 36 | PIN, LOCK BAR | 1 | Request quote | |||
| 37 | PIN, COTTER | 1 | Request quote | |||
| 38 | PIN, LOCK BAR | 1 | Request quote | |||
| 39 | PIN, SPRING | 2 | Request quote | |||
| 40 | PIN, LINCH | 1 | Request quote | |||
| 41 | PLUG | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
F1 - ON MACHINES NOT EQUIPPED WITH AIR CONDITIONING.
F2 - ON MACHINES EQUIPPED WITH AIR CONDITIONING.
F3 - ON MACHINES EQUIPPED WITH ADDITIONAL COUNTERWEIGHTS.
F4 - ON MACHINES EQUIPPED WITH PARALLEL TOOL CARRIER.
Using Komatsu WA180-1LC Wheel Loader Rear Frame Parts
Use the Komatsu WA180-1LC Wheel Loader Rear Frame Parts listing to identify aftermarket replacement parts within the frame section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 44 listed part occurrences, including frame, rear (reference 417-46-A2110), frame, rear (modified) (reference 417-963-4110) and frame, rear (modified) (reference 416-974-1220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
