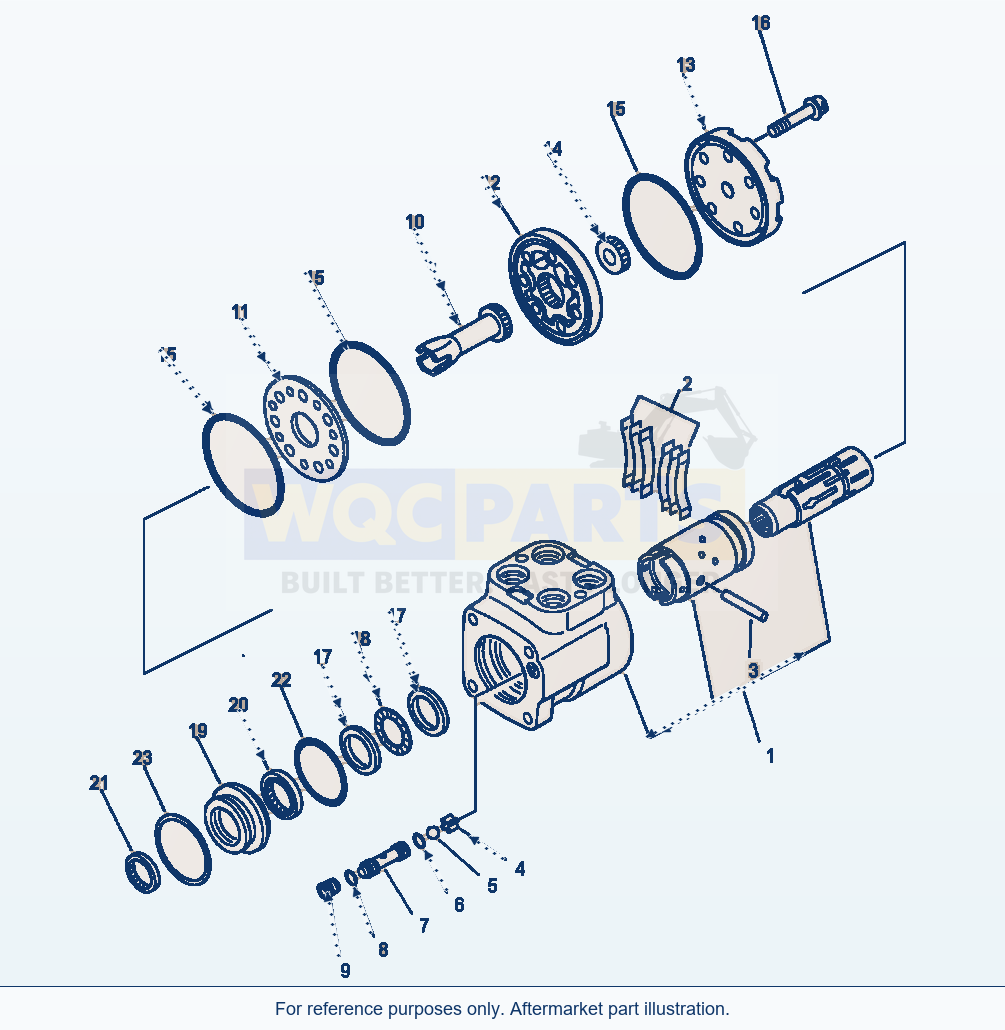

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSEMBLY, STEERING | 1 | Request quote | |||
| 1 | VALVE ASSEMBLY, ORBITROL | 1 | Request quote | |||
| 1 | CONTROL ASSEMBLY | 1 | Request quote | |||
| 2 | SPRING, CENTER RING | 6 | Request quote | |||
| 3 | PIN | 1 | Request quote | |||
| 4 | RETAINER | 1 | Request quote | |||
| 5 | BALL | 1 | Request quote | |||
| 6 | O-RINGF1 | 1 | Request quote | |||
| 7 | SEAT, CHECK | 1 | Request quote | |||
| 8 | O-RINGF1 | 1 | Request quote | |||
| 9 | SCREW, SET | 1 | Request quote | |||
| 10 | DRIVE | 1 | Request quote | |||
| 11 | PLATE, SPACER | 1 | Request quote | |||
| 12 | GEROTOR | 1 | Request quote | |||
| 13 | CAP, END | 1 | Request quote | |||
| 14 | SPACER | 1 | Request quote | |||
| 15 | O-RINGF1 | 3 | Request quote | |||
| 16 | SCREW | 7 | Request quote | |||
| 18 | BEARING ASSEMBLY | 1 | Request quote | |||
| 17 | LACE, BEARING | 2 | Request quote | |||
| 18 | NEEDLE BEARING | 1 | Request quote | |||
| 19 | BUSHING | 1 | Request quote | |||
| 20 | SEALF1 | 1 | Request quote | |||
| 21 | SEAL, DUSTF1 | 1 | Request quote | |||
| 22 | O-RINGF1 | 1 | Request quote | |||
| 23 | RING | 1 | Request quote | |||
| N/I | SERVICE KIT, STEERING VALVE | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
VALVE, OVERLOAD (SEE PG 04-018)
F1 - INCLUDED IN SERVICE KIT 417-64-15500.
