Komatsu WA180-1LC Wheel Loader 2-Spool Control Valve Parts
Komatsu WA180-1LC 2-spool control valve parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment Control System / 2-Spool Control Valve.
Checking current purchase options...

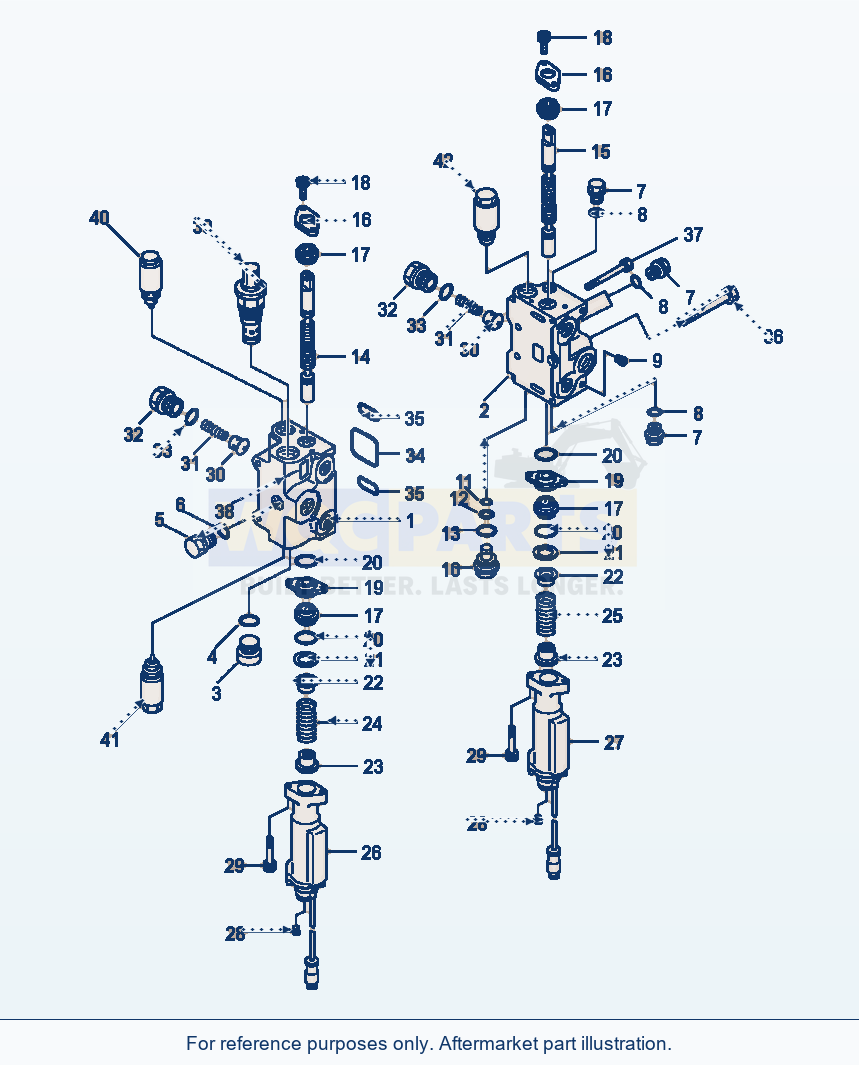

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSEMBLY, 2-SPOOL CONTROL | 1 | Request quote | |||
| 1 | BODY GROUP ASSEMBLY | 1 | Request quote | |||
| 1 | BODY, VALVE | 1 | Request quote | |||
| 2 | COVER, VALUE | 12 | Request quote | |||
| 3 | PLUG | 1 | Request quote | |||
| 4 | O-RING | 1 | View product ↗ | |||
| 5 | PLUG | 1 | Request quote | |||
| 6 | O-RING | 1 | View product ↗ | |||
| 7 | PLUG | 4 | Request quote | |||
| 8 | O-RING | 4 | View product ↗ | |||
| 9 | PLUG | 1 | View product ↗ | |||
| 10 | PLUG | 1 | Request quote | |||
| 11 | O-RING | 1 | View product ↗ | |||
| 12 | RING, BACK-UP | 1 | View product ↗ | |||
| 13 | O-RING | 1 | View product ↗ | |||
| 14 | SPOOL | 1 | Request quote | |||
| 15 | SPOOL | 1 | Request quote | |||
| 16 | PLATE | 2 | Request quote | |||
| 17 | SEAL, OIL | 4 | View product ↗ | |||
| 18 | BOLT | 4 | Request quote | |||
| 19 | PLATE | 2 | Request quote | |||
| 20 | O-RING | 4 | View product ↗ | |||
| 21 | PLATE | 2 | Request quote | |||
| 22 | RETAINER | 2 | Request quote | |||
| 23 | RETAINER | 2 | Request quote | |||
| 24 | SPRING | 1 | Request quote | |||
| 25 | SPRING | 1 | Request quote | |||
| 26 | DETENT ASSEMBLY | 1 | Request quote | |||
| 27 | DETENT ASSEMBLY | 1 | Request quote | |||
| 28 | PLUG | 2 | View product ↗ | |||
| 29 | BOLT | 4 | Request quote | |||
| 30 | VALVE | 2 | Request quote | |||
| 31 | SPRING | 2 | Request quote | |||
| 32 | PLUG | 2 | Request quote | |||
| 33 | O-RING | 2 | View product ↗ | |||
| 34 | O-RING | 1 | View product ↗ | |||
| 35 | O-RING | 2 | View product ↗ | |||
| 36 | BOLT | 1 | Request quote | |||
| 37 | BOLT | 2 | Request quote | |||
| 38 | PLATE | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
RELIEF VALVE (SEE PG 06-024)
SUCTION AND SAFETY VALVE (SEE PG 06-028)
SUCTION AND SAFETY VALVE (SEE PG 06-030)
SUCTION VALVE (SEE PG 06-036)
