Komatsu WA180-1LC Wheel Loader Hydraulic Pump - Komatsu Rear Parts
Komatsu WA180-1LC hydraulic pump - komatsu rear parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment Control System / Hydraulic Pump - Komatsu Rear.
Checking current purchase options...

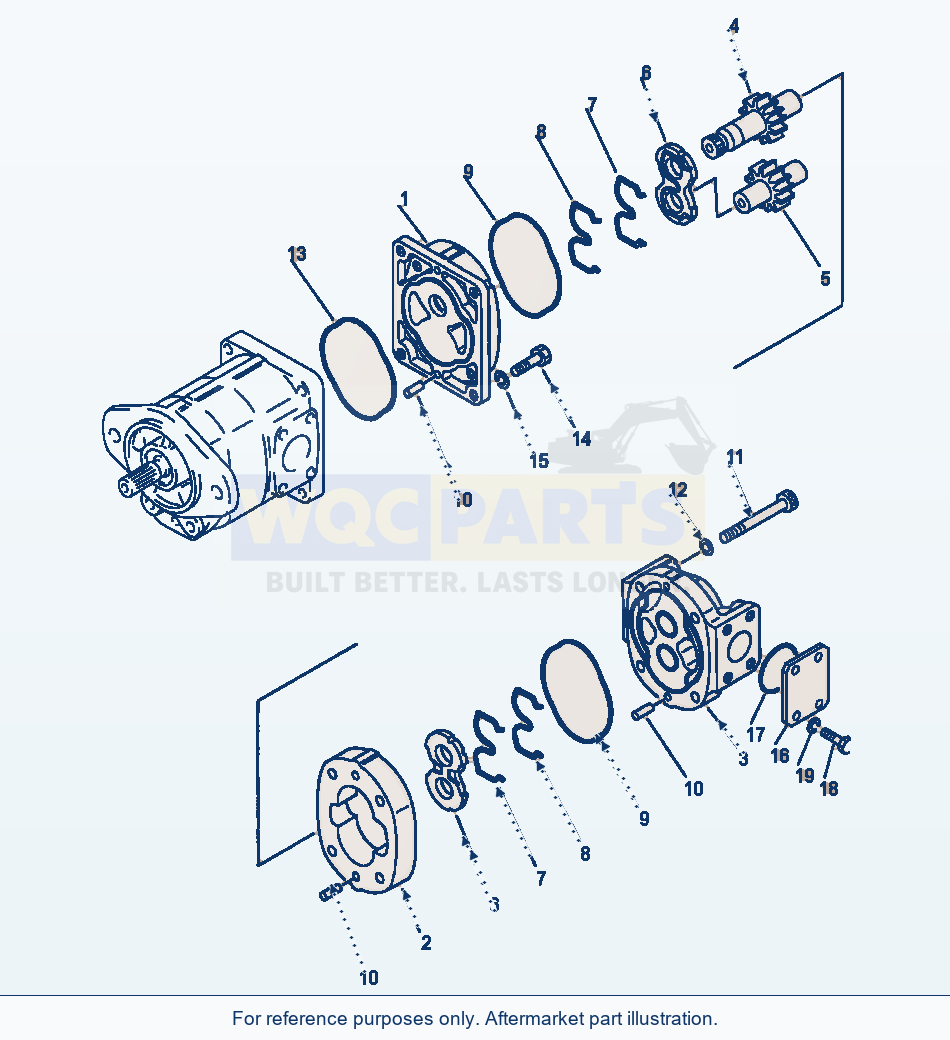

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 20 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PUMP ASSEMBLY (SAL20) | 1 | Request quote | |||
| 1 | BRACKETF1 | 1 | Request quote | |||
| 2 | CASE, GEARF1 | 1 | Request quote | |||
| 3 | COVERF1 | 1 | Request quote | |||
| 4 | GEAR, DRIVEF1 | 1 | Request quote | |||
| 5 | GEAR, DRIVENF1 | 1 | Request quote | |||
| 6 | PLATE, SIDE | 2 | Request quote | |||
| 7 | RING, BACK-UP | 2 | View product ↗ | |||
| 8 | RING, SEAL | 2 | View product ↗ | |||
| 9 | O-RING | 2 | View product ↗ | |||
| 10 | PIN, DOWEL | 6 | View product ↗ | |||
| 11 | BOLT | 4 | Request quote | |||
| 12 | WASHER, SPRING | 4 | Request quote | |||
| 13 | O-RING | 1 | View product ↗ | |||
| 14 | BOLT | 4 | View product ↗ | |||
| 15 | WASHER, SPRING | 4 | View product ↗ | |||
| 16 | PLATE | 1 | Request quote | |||
| 17 | O-RING | 1 | View product ↗ | |||
| 18 | BOLT | 4 | Request quote | |||
| 19 | WASHER, SPRING | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PUMP ASSEMBLY, LIFT/DUMP/STEERING (SEE PG 06-002)
F1 - PARTS ARE SUPPLIED SEPARATELY ONLY TO DESIGNATED
DEALERS WHICH ARE EQUIPPED WITH A HYDRAULIC PUMP
TESTER.
Using Komatsu WA180-1LC Wheel Loader Hydraulic Pump - Komatsu Rear Parts
Use the Komatsu WA180-1LC Wheel Loader Hydraulic Pump - Komatsu Rear Parts listing to identify aftermarket replacement parts within the work equipment control system section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 20 listed part occurrences, including pump assembly (sal20) (reference 705-13-26530), bracket (reference 705-17-02510) and case, gear (reference 705-18-02510). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
