Komatsu WA180-1LC Wheel Loader Lift Arm Parallel Lift Linkage Parts
Komatsu WA180-1LC lift arm parallel lift linkage parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment / Lift Arm Parallel Lift Linkage.
Checking current purchase options...

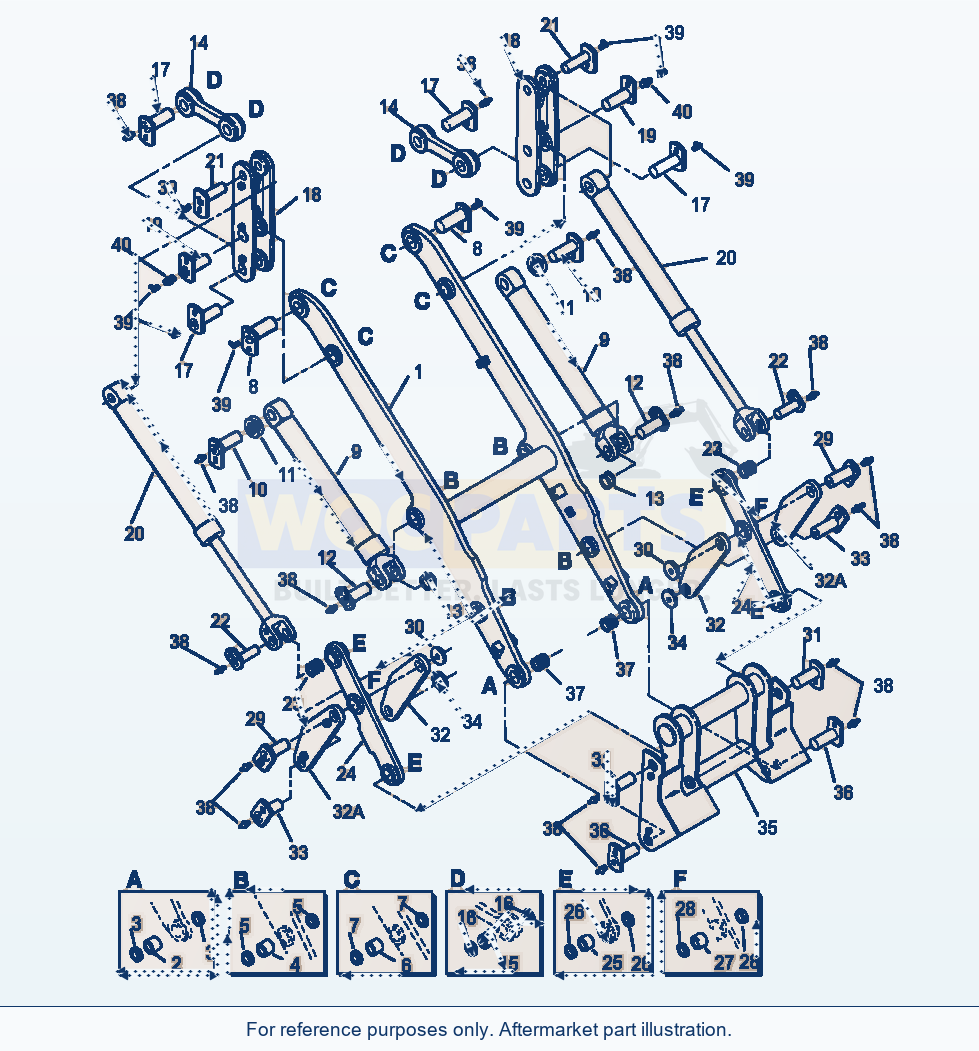

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 67 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | ARM ASSEMBLY, LIFT - PARALLEL TOOL CARRIER | 1 | Request quote | |||
| 1 | ARM, LIFT | 1 | Request quote | |||
| 2 | BUSHING | 2 | View product ↗ | |||
| 3 | SEAL, DUST | 4 | View product ↗ | |||
| 4 | BUSHING | 4 | View product ↗ | |||
| 5 | SEAL, DUST | 8 | View product ↗ | |||
| 6 | BUSHING | 4 | View product ↗ | |||
| 7 | SEAL, DUST | 8 | View product ↗ | |||
| 8 | PINLOCK, MOUNT LIFT ARM TO FRAME | 2 | View product ↗ | |||
| 9 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 10 | WASHER | 2 | View product ↗ | |||
| 9 | CYLINDER ASSEMBLY, LIFTF1 | 2 | Request quote | |||
| 10 | PINLOCK, MOUNT LIFT CYLINDER TO FRAME | 2 | View product ↗ | |||
| 13 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 14 | WASHER | 2 | View product ↗ | |||
| 11 | SHIM, 1.5MM | - | Request quote | |||
| 12 | PINLOCK, MOUNT LIFT CYLINDER TO LIFT ARM | 1 | View product ↗ | |||
| 17 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 18 | WASHER | 2 | View product ↗ | |||
| 13 | SHIM, 1.5MM | - | Request quote | |||
| 20 | LINK ASSEMBLY | 2 | Request quote | |||
| 14 | LINK | 1 | Request quote | |||
| 15 | BUSHING | 2 | View product ↗ | |||
| 16 | SEAL, DUST | 4 | View product ↗ | |||
| 17 | PINLOCK, LINK TO FRAME AND BELLCRANK | 4 | Request quote | |||
| 25 | BOLT, PINLOCK | 4 | View product ↗ | |||
| 26 | WASHER | 4 | View product ↗ | |||
| 18 | BELLCRANK, FRAME END | 2 | Request quote | |||
| 19 | PINLOCK, BELLCRANK TO LIFT ARM (FRAME END) | 2 | View product ↗ | |||
| 29 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 30 | WASHER | 2 | View product ↗ | |||
| 20 | CYLINDER ASSEMBLY, DUMPF1 | 2 | Request quote | |||
| 21 | PINLOCK, DUMP CYLINDER TO BELLCRANK | - | Request quote | |||
| 34 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 35 | WASHER | 2 | View product ↗ | |||
| 22 | PINLOCK, DUMP CYLINDER TO LINK ASSEMBLY | - | View product ↗ | |||
| 38 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 39 | WASHER | 2 | View product ↗ | |||
| 23 | SHIM | - | Request quote | |||
| 41 | LINK ASSEMBLY | 2 | Request quote | |||
| 24 | LINK | 1 | Request quote | |||
| 25 | BUSHING, END | 2 | View product ↗ | |||
| 26 | SEAL, DUST - END | 4 | View product ↗ | |||
| 27 | BUSHING, CENTER | 1 | View product ↗ | |||
| 28 | SEAL, DUST - CENTER | 2 | View product ↗ | |||
| 29 | PINLOCK, LINK TO LEVER | 2 | Request quote | |||
| 30 | PLATE, PINLOCK | 2 | Request quote | |||
| 49 | BOLT, PINLOCK PLATE | 2 | Request quote | |||
| 50 | WASHER | 2 | View product ↗ | |||
| 31 | PINLOCK, LINK TO TOOL CARRIER | 2 | Request quote | |||
| 52 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 53 | WASHER | 2 | View product ↗ | |||
| 32 | LEVER, W/O WHIRL STOP (FOR INSIDE OF LIFT ARM) | 2 | Request quote | |||
| 32A | LEVER, W/WHIRL STOP (FOR OUTSIDE OF LIFT ARM) | 2 | Request quote | |||
| 33 | PINLOCK, LEVER TO LIFT ARM | 2 | Request quote | |||
| 34 | PLATE, PINLOCK | 2 | Request quote | |||
| 58 | BOLT, PINLOCK PLATE | 2 | Request quote | |||
| 59 | WASHER | 2 | View product ↗ | |||
| 36 | PINLOCK, LIFT ARM TO TOOL CARRIER | 2 | View product ↗ | |||
| 62 | BOLT, PINLOCK | 2 | View product ↗ | |||
| 63 | WASHER | 2 | View product ↗ | |||
| 37 | SHIM, 0.5MM | - | View product ↗ | |||
| 65 | SHIM, 1.5MM | - | Request quote | |||
| 66 | SHIM, 3.0MM | - | Request quote | |||
| 38 | FITTING, GREASE | 14 | View product ↗ | |||
| 39 | FITTING, GREASE | 6 | View product ↗ | |||
| 40 | NIPPLE | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
(FRAME CYLINDER)
(TOOL CARRIER END)
FRAME, TOOL CARRIER (SEE PG 07-014)
F1 - SERVICEABLE PARTS NOT AVAILABLE AT TIME OF PRINTING.
Using Komatsu WA180-1LC Wheel Loader Lift Arm Parallel Lift Linkage Parts
Use the Komatsu WA180-1LC Wheel Loader Lift Arm Parallel Lift Linkage Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 67 listed part occurrences, including arm assembly, lift - parallel tool carrier (reference 417-N93-A000), arm, lift (reference NSS) and bushing (reference 417-70-11860). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
