Komatsu WA180-3 Wheel Loader Hydraulic Piping (E.C.S.S. Line) Parts
Komatsu WA180-3 hydraulic piping (e.c.s.s. line) parts for machine serial 53001-UP (FOR KOMATSU HANOMAG (GERMANY)). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Hydraulic System / Hydraulic Piping (E.C.S.S. Line).
Checking current purchase options...

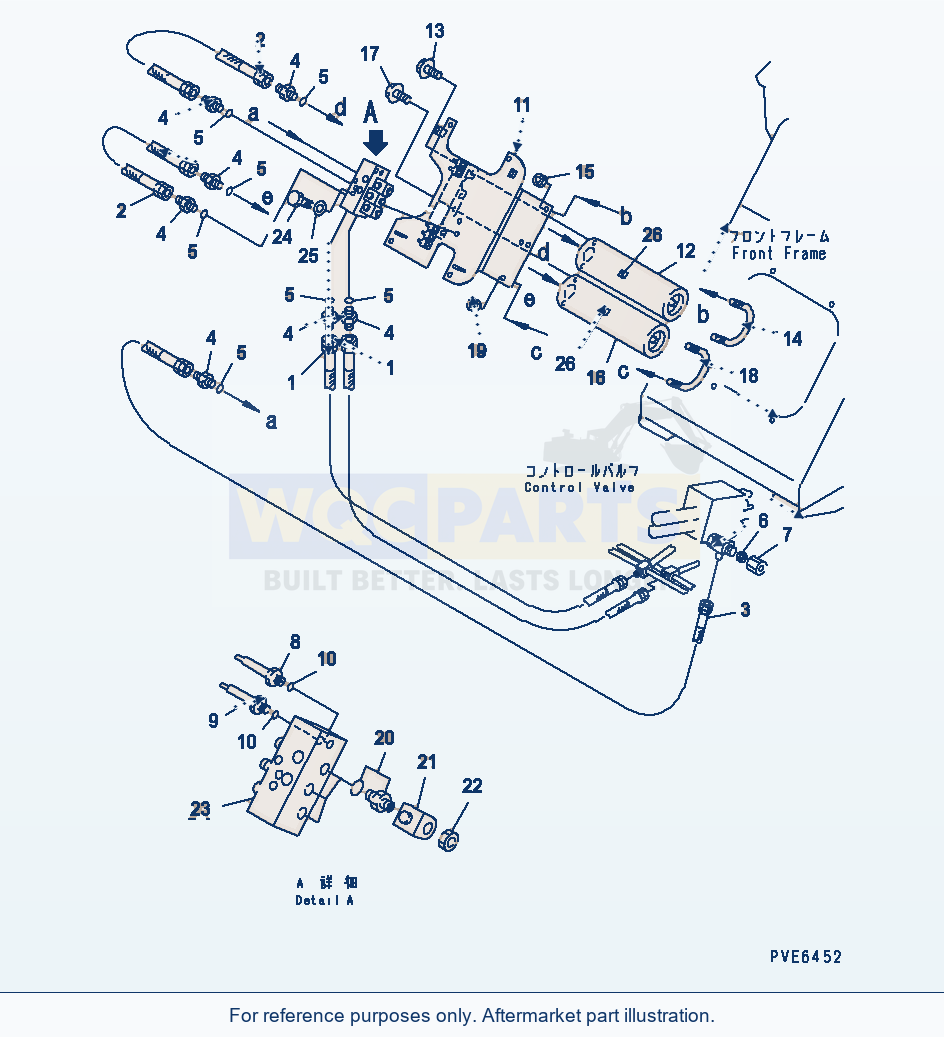

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOSESN: 53001-UP | 2 | Request quote | |||
| 2 | HOSESN: 53001-UP | 2 | Request quote | |||
| 3 | HOSESN: 53001-UP | 1 | Request quote | |||
| 4 | UNIONSN: 53001-UP | 7 | Request quote | |||
| 5 | O-RINGSN: 53001-UP | 7 | View product ↗ | |||
| 6 | PLUGSN: 53001-UP | 1 | Request quote | |||
| 7 | NUTSN: 53001-UP | 1 | Request quote | |||
| 8 | SWITCH,PRESSURESN: 53001-UP | 1 | Request quote | |||
| 9 | SWITCH,PRESSURESN: 53001-UP | 1 | Request quote | |||
| 10 | O-RINGSN: 53001-UP | 2 | Request quote | |||
| 11 | BRACKETSN: 53001-UP | 1 | Request quote | |||
| 12 | ACCUMULATORSN: 54447-UP | 1 | Request quote | |||
| 12 | ACCUMULATOR ASS'YSN: 53001-54446 | 1 | Request quote | |||
| 13 | BOLTSN: 53001-UP | 2 | View product ↗ | |||
| 14 | CLIPSN: 53001-UP | 1 | Request quote | |||
| 15 | NUTSN: 53001-UP | 2 | View product ↗ | |||
| 16 | ACCUMULATOR ASS'YSN: 53001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 53001-UP | 2 | View product ↗ | |||
| 18 | CLIPSN: 53001-UP | 1 | Request quote | |||
| 19 | NUTSN: 53001-UP | 2 | View product ↗ | |||
| 23 | VALVE ASS'YSN: 53001-UP | 1 | Request quote | |||
| 24 | VALVE ASS'YSN: 53001-UP | 3 | Request quote | |||
| 20 | VALVE ASS'YSN: 53001-UP | 1 | Request quote | |||
| 21 | COIL ASS'YSN: 53001-UP | 1 | Request quote | |||
| 22 | NUTSN: 53001-UP | 1 | Request quote | |||
| 23 | BODY,VALVESN: 53001-UP | 1 | Request quote | |||
| 24 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 25 | WASHERSN: 53001-UP | 2 | View product ↗ | |||
| 26 | PLATE, SAFETYSN: 53001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
