Komatsu WA180-3 Wheel Loader Steering Wheel And Column(#50001-) Parts
Komatsu WA180-3 steering wheel and column(#50001-) parts for machine serial 50001-52999. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Steering And Control System / Steering Wheel And Column(#50001-).
Checking current purchase options...

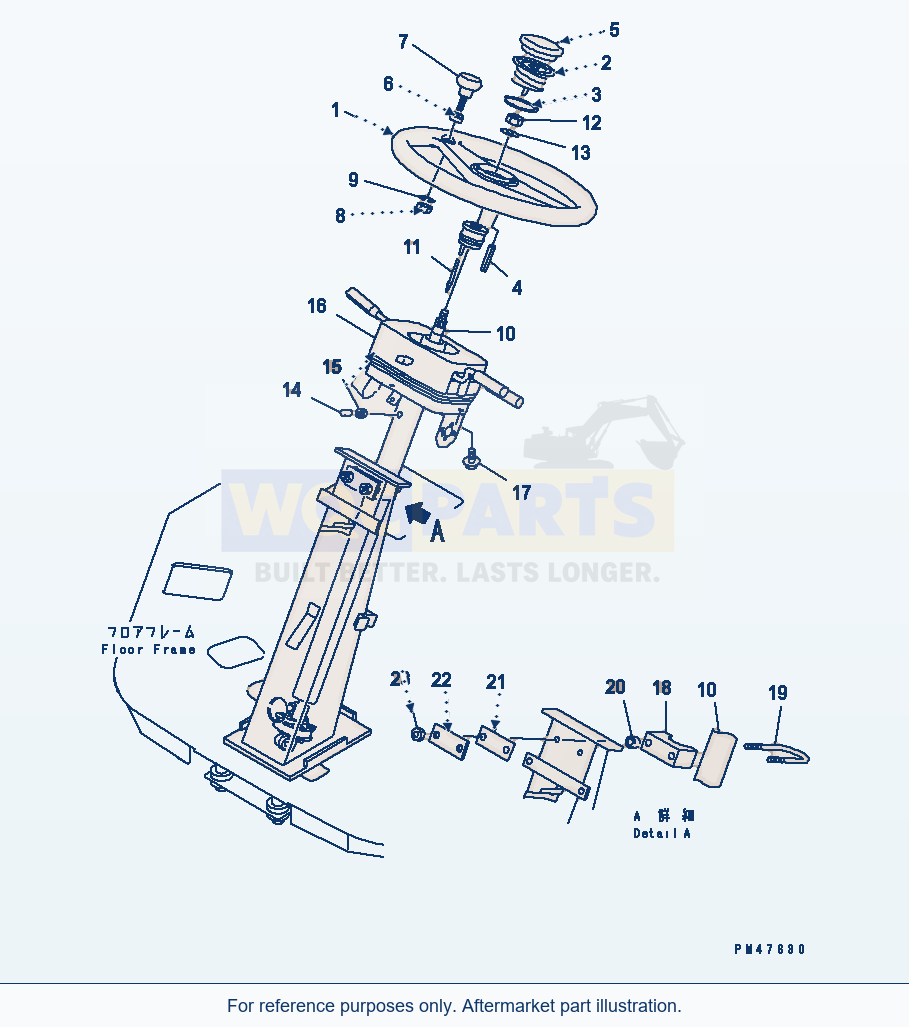

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | WHEEL ASS'Y,STEERINGSN: 50001-UP | 1 | Request quote | |||
| 1 | WHEEL,STEERINGSN: 50001-UP | 1 | Request quote | |||
| 2 | CONTACT ASS'YSN: 50001-UP | 1 | Request quote | |||
| 3 | SPRING LOCK,SPRINGSN: 50001-UP | 1 | Request quote | |||
| 4 | PIN,SPRINGSN: 50001-UP | 1 | Request quote | |||
| 5 | PAD,HORNSN: 50001-UP | 1 | Request quote | |||
| 6 | BUSHINGSN: 50001-UP | 1 | Request quote | |||
| 7 | KNOB ASS'YSN: 50001-UP | 1 | Request quote | |||
| 8 | NUTSN: 50001-UP | 1 | Request quote | |||
| 9 | WASHERSN: 50001-UP | 1 | Request quote | |||
| 10 | COLUMN ASS'Y,STEERINGSN: 50001-UP | 1 | Request quote | |||
| 11 | BUSHINGSN: 50001-UP | 1 | Request quote | |||
| 12 | NUTSN: 50001-UP | 1 | Request quote | |||
| 13 | WASHERSN: 50001-UP | 1 | Request quote | |||
| 14 | COVERSN: 50001-UP | 1 | Request quote | |||
| 15 | GROMMETSN: 50001-UP | 1 | Request quote | |||
| 16 | SWITCH ASS'Y,TRANSMISSION CONTROLSN: 50001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 50001-UP | 3 | Request quote | |||
| 18 | PLATESN: 50001-UP | 1 | Request quote | |||
| 19 | CLIPSN: 50001-UP | 1 | Request quote | |||
| 20 | SPACERSN: 50001-UP | 2 | Request quote | |||
| 21 | SHEETSN: 50001-UP | 2 | Request quote | |||
| 22 | PLATESN: 50001-UP | 1 | Request quote | |||
| 23 | NUTSN: 50001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA180-3 Wheel Loader Steering Wheel And Column(#50001-) Parts
Use the Komatsu WA180-3 Wheel Loader Steering Wheel And Column(#50001-) Parts listing to identify aftermarket replacement parts within the steering and control system section. This wheel loader application is listed for machine serial 50001-52999; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including wheel ass'y,steering (reference 421-40-22110), wheel,steering (reference 421-40-22120) and contact ass'y (reference 421-40-22170). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
