Komatsu WA180-3L Wheel Loader Muffler And Mounting Parts
Komatsu WA180-3L muffler and mounting parts for machine serial A80001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts / Muffler And Mounting.
Checking current purchase options...

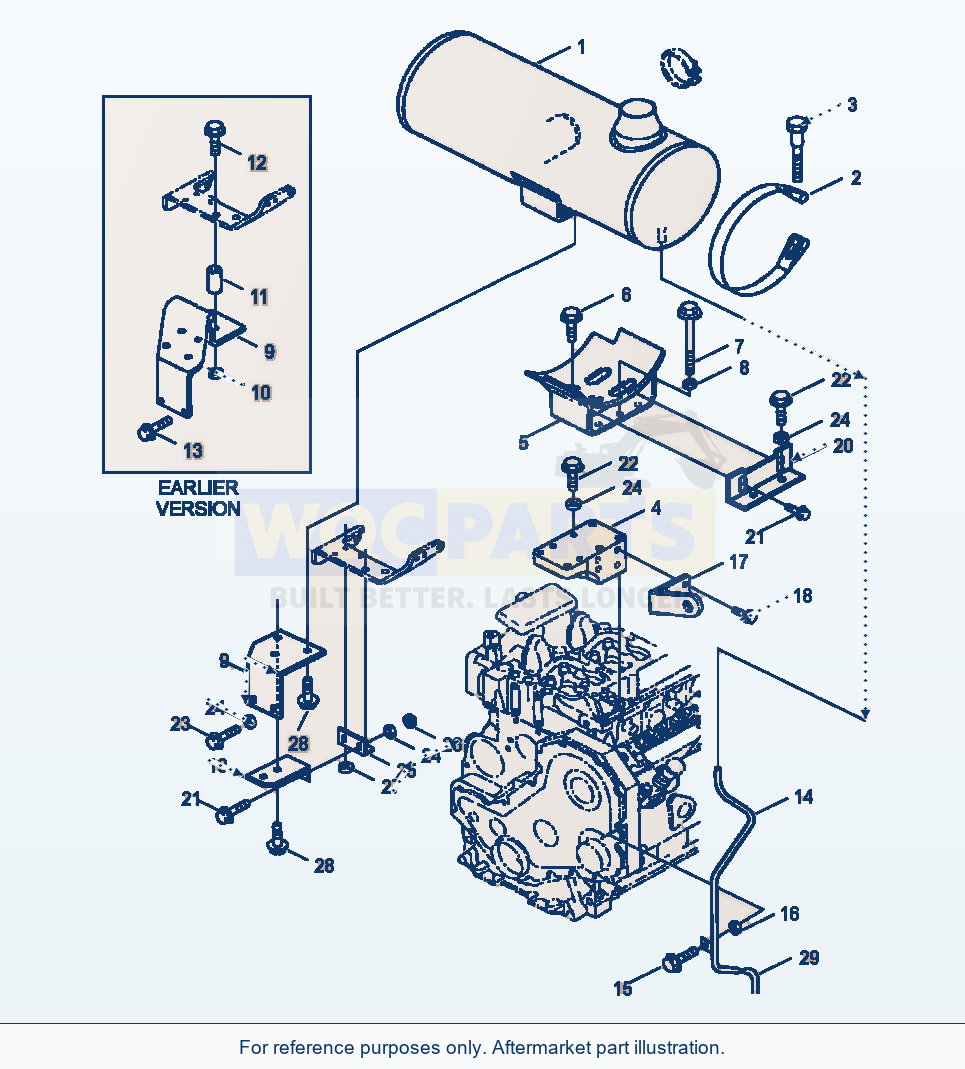

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 37 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | MUFFLERSN: A80001-UP-UP | 1 | Request quote | |||
| 2 | BAND ASSEMBLYSN: A80001-A80374-UP | 1 | Request quote | |||
| 2 | BAND ASSEMBLYSN: A80375-UP-UP | 1 | Request quote | |||
| 6 | PINSN: A80001-A80374-UP | 1 | Request quote | |||
| 10 | PINSN: A80375-UP-UP | 1 | Request quote | |||
| 11 | PIN WITH SCREWSN: A80001-A80374-UP | 1 | Request quote | |||
| 15 | PIN WITH SCREWSN: A80375-UP-UP | 1 | Request quote | |||
| 3 | BOLT, BANDSN: A80001-A80374-UP | 1 | Request quote | |||
| 3 | BOLT, BANDSN: A80375-UP-UP | 1 | Request quote | |||
| 4 | BRACKETSN: A80001-UP-UP | 1 | Request quote | |||
| 5 | BRACKETSN: A80001-A80374-UP | 1 | Request quote | |||
| 5 | BRACKETSN: A80375-UP-UP | 1 | Request quote | |||
| 6 | BOLTSN: A80001-UP-UP | 1 | Request quote | |||
| 7 | BOLTSN: A80001-UP-UP | 3 | Request quote | |||
| 8 | WASHERSN: A80001-UP-UP | 3 | View product ↗ | |||
| 9 | BRACKETSN: A80001-A80374-UP | 1 | Request quote | |||
| 9 | BRACKETSN: A80375-UP-UP | 1 | Request quote | |||
| 10 | SPACERSN: A80001-A80374-UP | 4 | Request quote | |||
| 11 | SPACERSN: A80001-A80374-UP | 2 | Request quote | |||
| 12 | BOLTSN: A80001-A80374-UP | 2 | Request quote | |||
| 13 | BOLTSN: A80001-A80374-UP | 2 | View product ↗ | |||
| 14 | TUBESN: A80001-UP-UP | 1 | Request quote | |||
| 15 | BOLTSN: A80001-UP-UP | 1 | Request quote | |||
| 16 | SPACERSN: A80001-UP-UP | 1 | Request quote | |||
| 17 | PLATESN: A80001-UP-UP | 1 | Request quote | |||
| 18 | BOLTSN: A80001-UP-UP | 2 | View product ↗ | |||
| 19 | SUPPORTSN: A80375-UP-UP | 1 | Request quote | |||
| 20 | BRACKETSN: A80375-UP-UP | 1 | Request quote | |||
| 21 | BOLTSN: A80375-UP-UP | 4 | View product ↗ | |||
| 22 | BOLTSN: A80375-UP-UP | 3 | Request quote | |||
| 23 | BOLTSN: A80375-UP-UP | 2 | Request quote | |||
| 24 | WASHERSN: A80375-UP-UP | 7 | View product ↗ | |||
| 25 | SUPPORTSN: A80375-UP-UP | 1 | Request quote | |||
| 26 | NUTSN: A80375-UP-UP | 2 | View product ↗ | |||
| 27 | SPACERSN: A80375-UP-UP | 1 | Request quote | |||
| 28 | BOLTSN: A80375-UP-UP | 2 | Request quote | |||
| 29 | MUFFLER DRAIN HOSESN: A80001-UP-UP | 29 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
OR
OR
OR
OR
Using Komatsu WA180-3L Wheel Loader Muffler And Mounting Parts
Use the Komatsu WA180-3L Wheel Loader Muffler And Mounting Parts listing to identify aftermarket replacement parts within the engine related parts section. This wheel loader application is listed for machine serial A80001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 37 listed part occurrences, including muffler (reference 417-01-A1430), band assembly (reference 6732-11-5710) and band assembly (reference 6732-11-5711). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
