Komatsu WA180-3L Wheel Loader Cylinder Block Parts
Komatsu WA180-3L cylinder block parts for machine serial A80001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Cylinder Block.
Checking current purchase options...

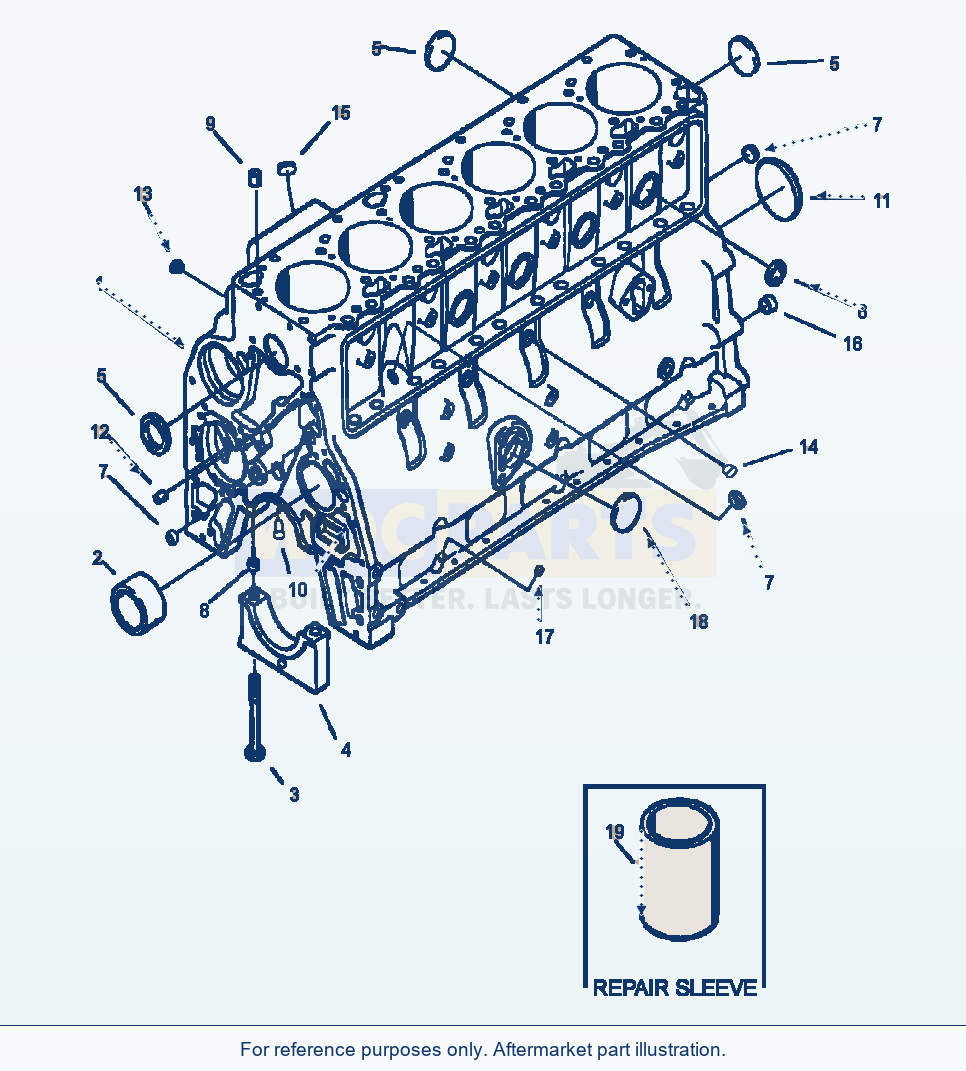

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | BLOCK ASSEMBLY, CYLINDER | 1 | Request quote | |||
| 1 | BLOCK, CYLINDER | 1 | Request quote | |||
| 2 | BUSHING | 1 | View product ↗ | |||
| 3 | BOLT - M14-2.00 X 119 | 14 | Request quote | |||
| 4 | CAP, MAIN BEARING - SEMI-FINISHED | 7 | Request quote | |||
| 5 | PLUG, EXPANSION | 6 | Request quote | |||
| 6 | PLUG, EXPANSION - 1 IN. | 4 | Request quote | |||
| 7 | PLUG, EXPANSION - 17.73 MM | 3 | Request quote | |||
| 8 | DOWEL, RING - M18 X 10 | 14 | Request quote | |||
| 9 | KIT, BLOCK HARDWARE | 1 | Request quote | |||
| 9 | DOWEL, RING - M16 X 10 | 2 | View product ↗ | |||
| 10 | NOZZLE, PISTON COOLING | 6 | Request quote | |||
| 11 | PLUG, WELCH | 1 | Request quote | |||
| 12 | PIN DOWEL - M10 X 16 | 2 | Request quote | |||
| 13 | PLUG, PIPE - 1/2 NPT | 1 | Request quote | |||
| 14 | PLUG, PIPE - 1/8 NPT | 2 | Request quote | |||
| N/I | O-RING | 1 | View product ↗ | |||
| 15 | PLUG, EXPANSION - NOT USED ON TURBOCHARGED ENGINES | 1 | Request quote | |||
| 16 | DOWEL, RING - M18 X 10 | 2 | Request quote | |||
| 17 | PLUG, EXPANSION | 1 | Request quote | |||
| 18 | PLUG, EXPANSION - NOT USED WITH SIDE OIL FILL | 1 | Request quote | |||
| N/I | SEAL, O-RING | 1 | View product ↗ | |||
| 2 | BUSHING, O/S - NO. 1 BORE | - | View product ↗ | |||
| 2 | BUSHING, O/S - NO. 2-5 BORE | - | Request quote | |||
| 4 | CAP, MAIN BEARING - SEMI-FINISHED | 7 | Request quote | |||
| 19 | SLEEVE, SALVAGE - STD BORE | - | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERVICE PARTS
Using Komatsu WA180-3L Wheel Loader Cylinder Block Parts
Use the Komatsu WA180-3L Wheel Loader Cylinder Block Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A80001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including block assembly, cylinder (reference 6736-21-1100), block, cylinder (reference NSS) and bushing (reference 6732-21-1411). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
