Komatsu WA180-3L Wheel Loader Operator'S Cab - Left Door - Lock Parts
Komatsu WA180-3L operator's cab - left door - lock parts for machine serial A80001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Operator'S Cab - Left Door - Lock.
Checking current purchase options...

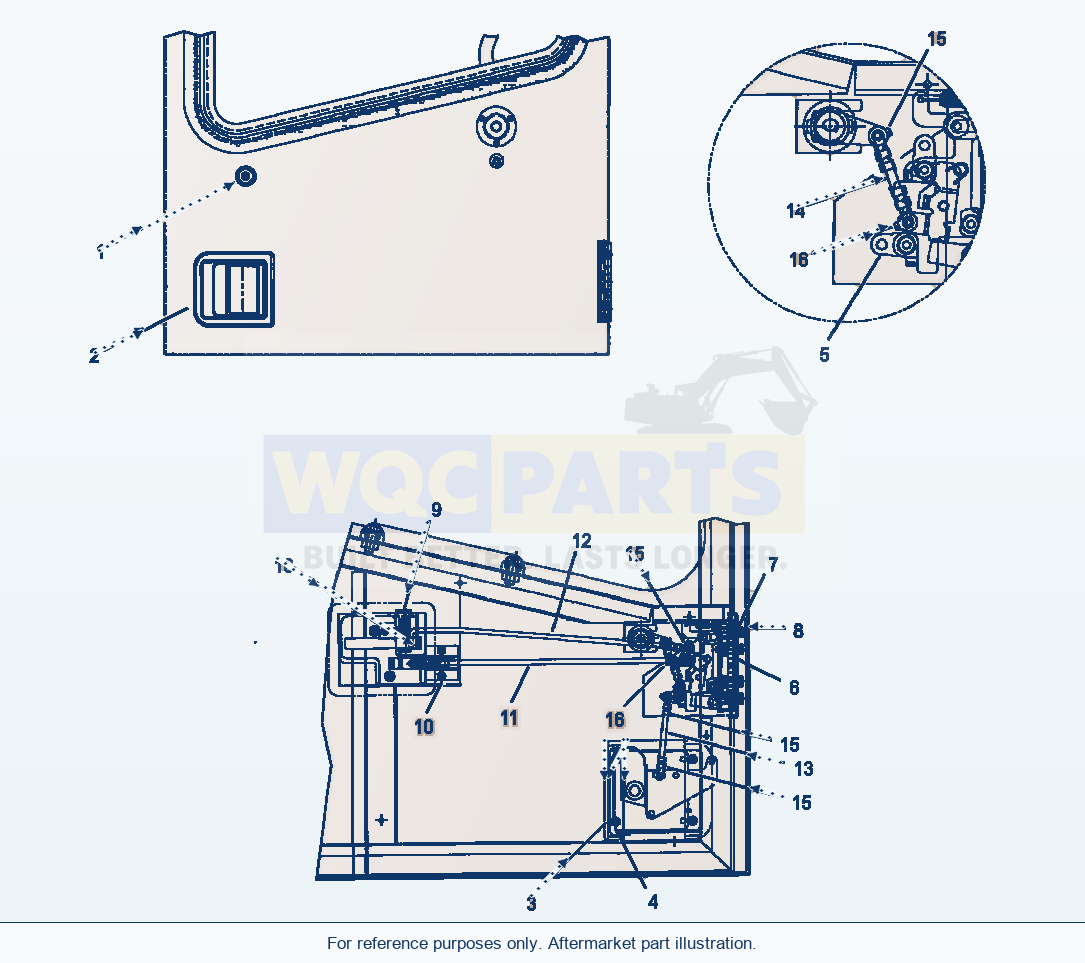

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LOCK ASSEMBLYSN: A80001-UP-UP | 1 | Request quote | |||
| 2 | PADDLE HANDLE ASSEMBLY, L.H.SN: A80001-UP-UP | 1 | Request quote | |||
| 3 | PADDLE HANDLE MOUNTSN: A80001-UP-UP | 1 | Request quote | |||
| 4 | SCREWSN: A80001-UP-UP | 2 | Request quote | |||
| 5 | LINKAGE ASSEMBLY, L.H.SN: A80001-UP-UP | 1 | Request quote | |||
| 6 | ROTOR LATCH ASSEMBLY, L.H.SN: A80001-UP-UP | 1 | Request quote | |||
| 7 | WASHER, FLATSN: A80001-UP-UP | 4 | Request quote | |||
| 8 | BOLT, HEXSN: A80001-UP-UP | 4 | Request quote | |||
| 9 | HANDLE INSIDE, L.H.SN: A80001-UP-UP | 1 | Request quote | |||
| 10 | SCREWSN: A80001-UP-UP | 4 | Request quote | |||
| 11 | ROD, DOOR LOCKSN: A80001-UP-UP | 1 | Request quote | |||
| 12 | ROD, L.H. DOOR LATCHSN: A80001-UP-UP | 1 | Request quote | |||
| 13 | RODSN: A80001-UP-UP | 1 | Request quote | |||
| 14 | RODSN: A80001-UP-UP | 1 | Request quote | |||
| 15 | ROD CLIP - 7RSN: A80001-UP-UP | 4 | Request quote | |||
| 16 | ROD CLIP - 7LSN: A80001-UP-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
DOOR ASSEMBLY, L.H.(SEE FIG. K0210-11A0)
Using Komatsu WA180-3L Wheel Loader Operator'S Cab - Left Door - Lock Parts
Use the Komatsu WA180-3L Wheel Loader Operator'S Cab - Left Door - Lock Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial A80001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including lock assembly (reference 427-56-11790), paddle handle assembly, l.h. (reference 423-926-A620) and paddle handle mount (reference 427-926-A530). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
