Catalog configuration: Operator'S Compartment And Control System / Air Conditioner Kit.
Checking current purchase options...

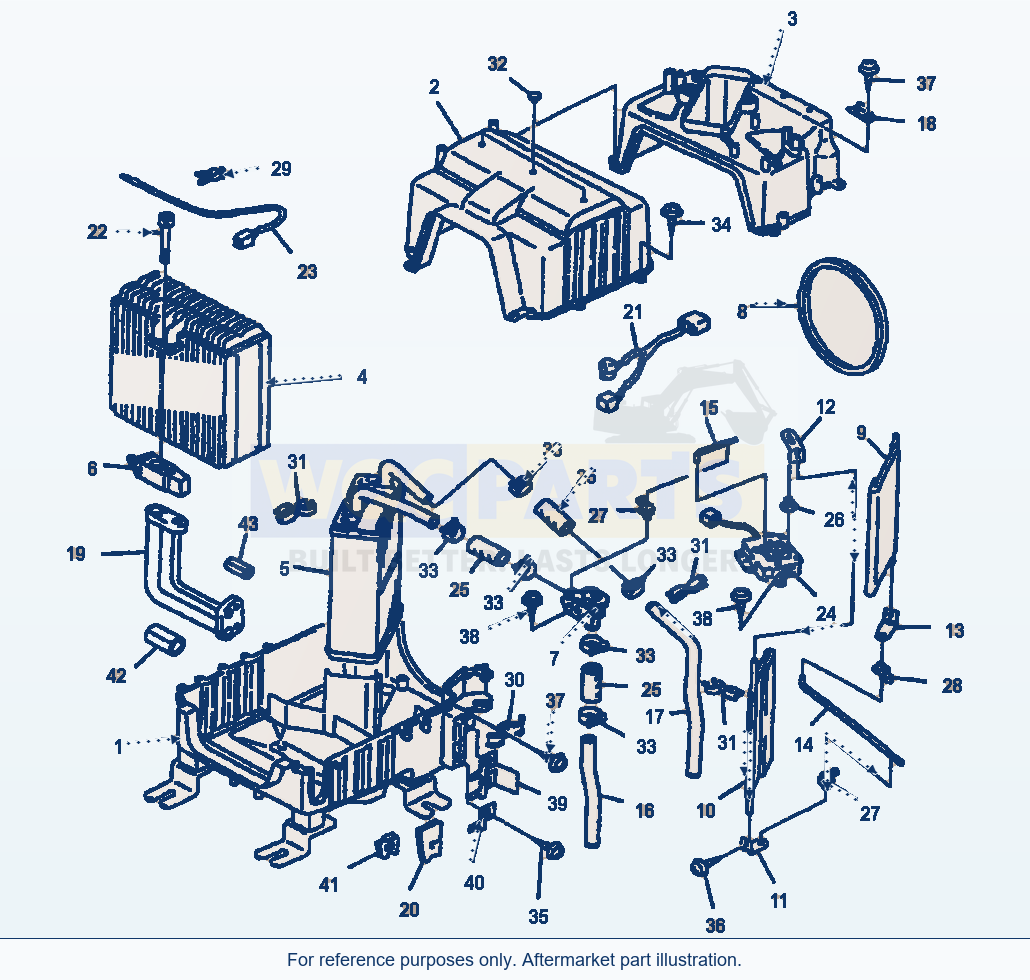

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 47 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | AIR CONDITIONERSN: A81001-UP-UP | 1 | Request quote | |||
| 1 | CASE ASSEMBLYSN: A81001-UP-UP | 1 | Request quote | |||
| 2 | CASE ASSEMBLYSN: A81001-UP-UP | 1 | Request quote | |||
| 3 | CASE, HEATERSN: A81001-UP-UP | 1 | Request quote | |||
| 4 | EVAPORATORSN: A81001-UP-UP | 1 | Request quote | |||
| 6 | O-RINGSN: A81001-UP-UP | 1 | Request quote | |||
| 5 | UNIT ASSEMBLYSN: A81001-UP-UP | 1 | Request quote | |||
| 6 | VALVE, EXPANSIONSN: A81001-UP-UP | 1 | Request quote | |||
| 7 | VALVE ASSEMBLY, WATERSN: A81001-UP-UP | 1 | Request quote | |||
| 8 | PACKINGSN: A81001-UP-UP | 1 | Request quote | |||
| 9 | DAMPER ASSEMBLYSN: A81001-UP-UP | 1 | Request quote | |||
| 10 | DAMPER ASSEMBLYSN: A81001-UP-UP | 1 | Request quote | |||
| 11 | LEVER, CONTROLSN: A81001-UP-UP | 1 | Request quote | |||
| 12 | LEVER, CONTROLSN: A81001-UP-UP | 1 | Request quote | |||
| 13 | LEVER, CONTROLSN: A81001-UP-UP | 1 | Request quote | |||
| 14 | SHAFTSN: A81001-UP-UP | 1 | Request quote | |||
| 15 | SHAFTSN: A81001-UP-UP | 1 | Request quote | |||
| 16 | PIPESN: A81001-UP-UP | 1 | Request quote | |||
| 17 | PIPESN: A81001-UP-UP | 1 | Request quote | |||
| 18 | BRACKETSN: A81001-UP-UP | 2 | Request quote | |||
| 19 | TUBESN: A81001-UP-UP | 1 | Request quote | |||
| 22 | O-RINGSN: A81001-UP-UP | 1 | Request quote | |||
| 23 | O-RINGSN: A81001-UP-UP | 2 | Request quote | |||
| 20 | GROMMETSN: A81001-UP-UP | 1 | Request quote | |||
| 21 | WIRING HARNESSSN: A81001-UP-UP | 1 | Request quote | |||
| 22 | BOLTSN: A81001-UP-UP | 2 | Request quote | |||
| 23 | THERMOSTATSN: A81001-UP-UP | 1 | Request quote | |||
| 24 | SERVO MOTOR ASSEMBLYSN: A81001-UP-UP | 1 | Request quote | |||
| 25 | HOSE, WATERSN: A81001-UP-UP | 3 | Request quote | |||
| 26 | BUSHINGSN: A81001-UP-UP | 1 | Request quote | |||
| 27 | CLAMPSN: A81001-UP-UP | 2 | Request quote | |||
| 28 | BUSHINGSN: A81001-UP-UP | 2 | Request quote | |||
| 29 | CLAMPSN: A81001-UP-UP | 1 | Request quote | |||
| 30 | CLAMPSN: A81001-UP-UP | 1 | Request quote | |||
| 31 | CLAMPSN: A81001-UP-UP | 3 | Request quote | |||
| 32 | CLAMPSN: A81001-UP-UP | 3 | Request quote | |||
| 33 | CLAMPSN: A81001-UP-UP | 6 | Request quote | |||
| 34 | SCREW, TAPPINGSN: A81001-UP-UP | 11 | Request quote | |||
| 35 | SCREW, TAPPINGSN: A81001-UP-UP | 3 | Request quote | |||
| 36 | SCREW WITH WASHERSN: A81001-UP-UP | 3 | Request quote | |||
| 37 | SCREW, TAPPINGSN: A81001-UP-UP | 3 | Request quote | |||
| 38 | SCREW, TAPPINGSN: A81001-UP-UP | 12 | Request quote | |||
| 39 | CLIPSN: A81001-UP-UP | 2 | Request quote | |||
| 40 | CLIPSN: A81001-UP-UP | 1 | Request quote | |||
| 41 | PLATESN: A81001-UP-UP | 1 | Request quote | |||
| 42 | SHEETSN: A81001-UP-UP | 1 | Request quote | |||
| 43 | SHEETSN: A81001-UP-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
AIR CONDITIONER KIT(SEE FIG. K0710-04A0)
