Komatsu WA180L-3 Wheel Loader Front Axle (Mounting Parts) Parts
Komatsu WA180L-3 front axle (mounting parts) parts for machine serial 54001-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Front Axle (Mounting Parts).
Checking current purchase options...

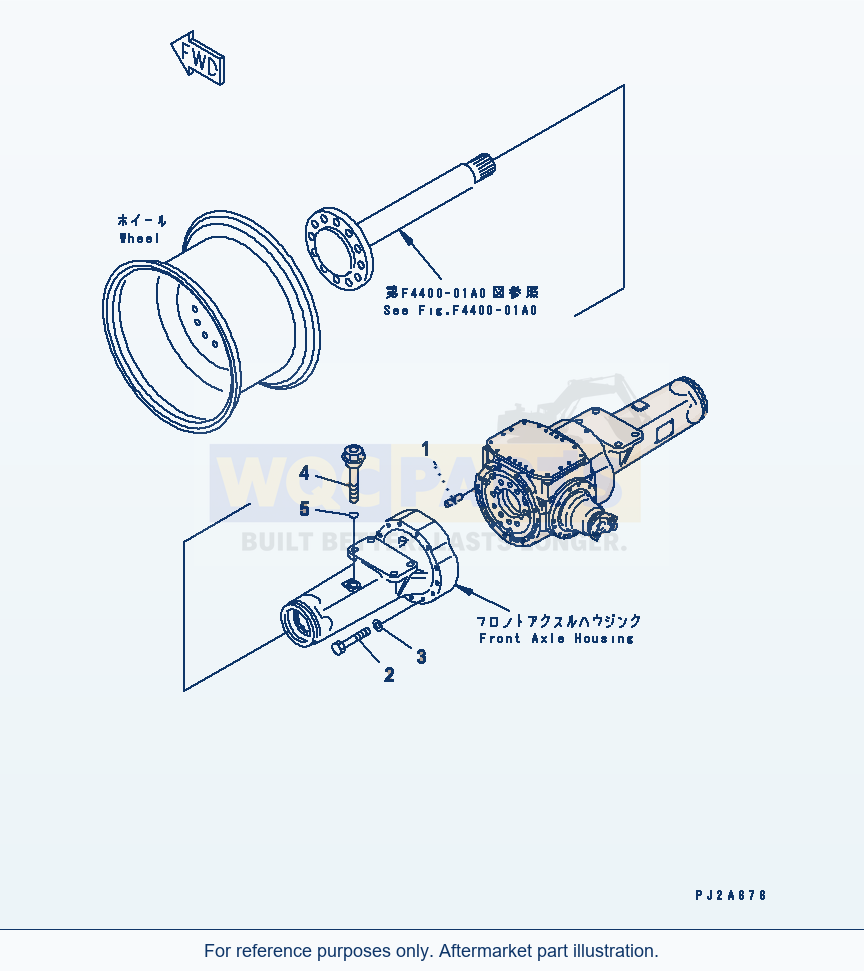

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | AXLE ASS'Y,FRONTSN: 54001-UP | 1 | Request quote | |||
| 3 | AXLE ASS'YSN: 54001-UP | 1 | Request quote | |||
| 1 | PINSN: 54001-UP | 4 | View product ↗ | |||
| 2 | BOLTSN: 54001-UP | 28 | View product ↗ | |||
| 3 | WASHERSN: 54001-UP | 28 | View product ↗ | |||
| 4 | PLUGSN: 54001-UP | 1 | Request quote | |||
| 5 | O-RINGSN: 54001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0.
Using Komatsu WA180L-3 Wheel Loader Front Axle (Mounting Parts) Parts
Use the Komatsu WA180L-3 Wheel Loader Front Axle (Mounting Parts) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial 54001-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including axle ass'y,front (reference 417-22-20001), axle ass'y (reference 417-22-20050) and pin (reference 04020-01228). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
