Komatsu WA180L-3 Wheel Loader Transmission (Transmission Case) Parts
Komatsu WA180L-3 transmission (transmission case) parts for machine serial 54001-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Transmission (Transmission Case).
Checking current purchase options...

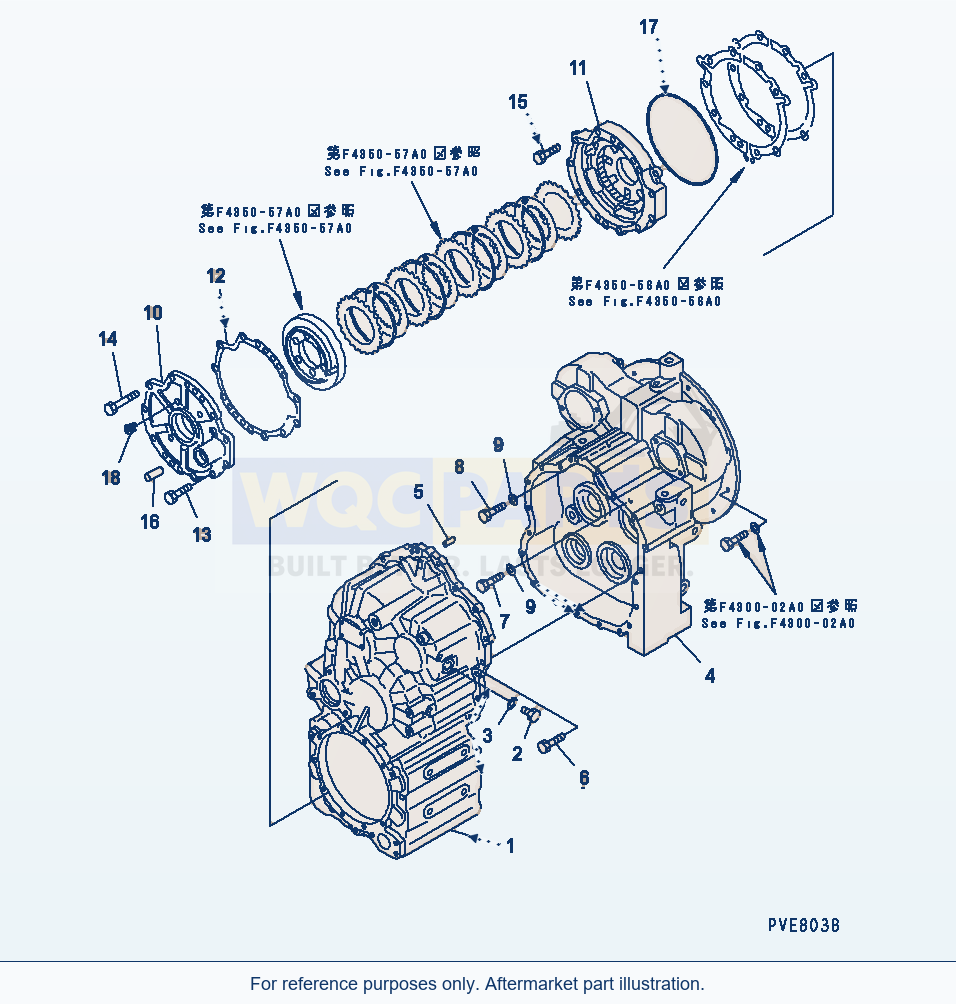

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | TRANSMISSION ASS'YSN: 54001-UP | 1 | Request quote | |||
| 3 | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)SN: 54001-UP | 1 | Request quote | |||
| 1 | CASE,FRONTSN: 54001-UP | 1 | Request quote | |||
| 2 | PLUGSN: 54001-UP | 1 | Request quote | |||
| 3 | SEAL, WASHERSN: 54001-UP | 1 | View product ↗ | |||
| 4 | CASE,TORQUE CONVERTERSN: 54001-UP | 1 | Request quote | |||
| 5 | PIN,DOWELSN: 54001-UP | 2 | View product ↗ | |||
| 6 | BOLTSN: 54001-UP | 19 | Request quote | |||
| 7 | BOLTSN: 54001-UP | 3 | View product ↗ | |||
| 8 | BOLTSN: 54001-UP | 2 | Request quote | |||
| 9 | WASHERSN: 54001-UP | 5 | View product ↗ | |||
| 10 | HOUSINGSN: 54001-UP | 1 | Request quote | |||
| 11 | RETAINERSN: 54001-UP | 1 | Request quote | |||
| 12 | GASKET (K1)SN: 54001-UP | 1 | Request quote | |||
| 13 | BOLTSN: 54001-UP | 3 | Request quote | |||
| 14 | BOLTSN: 54001-UP | 9 | View product ↗ | |||
| 15 | BOLTSN: 54001-UP | 2 | Request quote | |||
| 16 | PIN,DOWELSN: 54001-UP | 2 | View product ↗ | |||
| 17 | O-RING (K1)SN: 54001-UP | 1 | View product ↗ | |||
| 18 | PLUGSN: 54001-UP | 3 | View product ↗ | |||
| 19 | LIQUID GASKET,(NOT SHOWN) (K1)SN: 54001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-66A0.
Using Komatsu WA180L-3 Wheel Loader Transmission (Transmission Case) Parts
Use the Komatsu WA180L-3 Wheel Loader Transmission (Transmission Case) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial 54001-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including transmission ass'y (reference 714-11-10003), transmission ass'y,(for emergency steering) (reference 714-11-10043) and case,front (reference 714-11-11212). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
