Komatsu WA180PT-3 Loader Control (Attachment Control Linkage) Parts
Komatsu WA180PT-3 loader control (attachment control linkage) parts for machine serial 50001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Loader Control (Attachment Control Linkage).
Checking current purchase options...

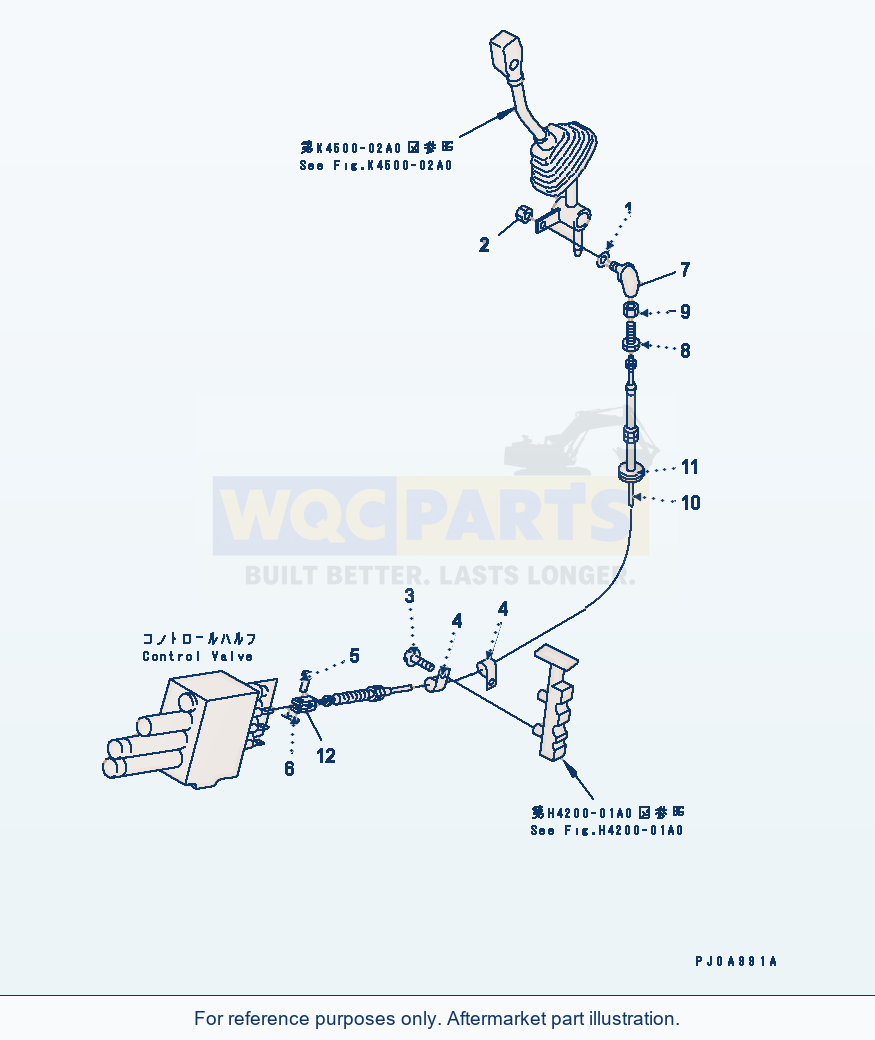

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WASHERSN: 50001-UP | 1 | View product ↗ | |||
| 2 | NUT,LOCKSN: 50001-UP | 1 | Request quote | |||
| 3 | BOLTSN: 50001-UP | 1 | Request quote | |||
| 4 | CLIPSN: 50001-UP | 2 | Request quote | |||
| 5 | PINSN: 50001-UP | 1 | Request quote | |||
| 6 | PINSN: 50001-UP | 1 | Request quote | |||
| 7 | JOINT,BALLSN: 50001-UP | 1 | View product ↗ | |||
| 8 | JOINTSN: 50001-UP | 1 | Request quote | |||
| 9 | NUTSN: 50001-UP | 1 | Request quote | |||
| 10 | CABLESN: 50001-UP | 1 | Request quote | |||
| 11 | GROMMETSN: 50001-UP | 1 | Request quote | |||
| 12 | YOKESN: 50001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA180PT-3 Loader Control (Attachment Control Linkage) Parts
Use the Komatsu WA180PT-3 Loader Control (Attachment Control Linkage) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 50001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including clip (reference 423-06-12640), pin (reference 04205-10822) and pin (reference 04052-10833). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
