Komatsu WA180PT-3MC Wheel Loader Tool Parts
Komatsu WA180PT-3MC tool parts for machine serial A88001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Accessory And Tool / Tool.
Checking current purchase options...

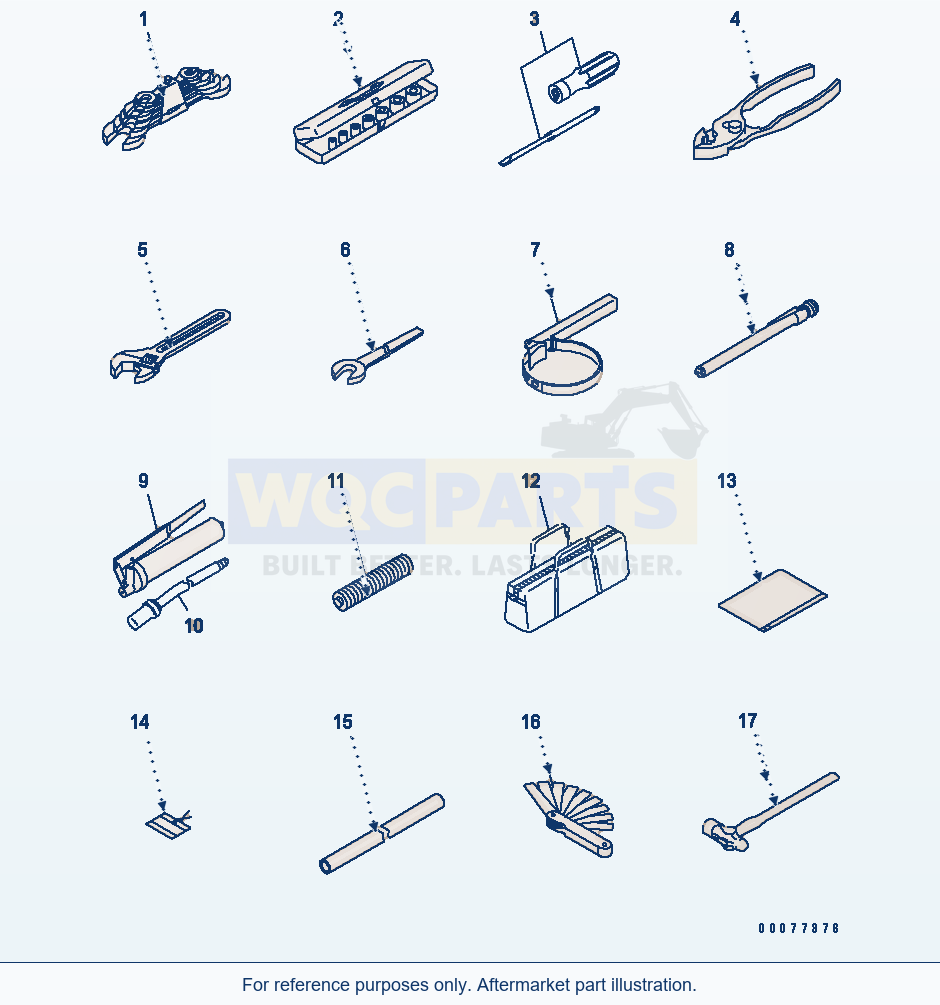

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WRENCH SETSN: A88001-UP | 1 | Request quote | |||
| 2 | SOCKET WRENCH SETSN: A88001-UP | 1 | Request quote | |||
| 3 | DRIVERSN: A88001-UP | 1 | Request quote | |||
| 4 | PLIERSSN: A88001-UP | 1 | Request quote | |||
| 5 | WRENCHSN: A88001-UP | 1 | Request quote | |||
| 6 | WRENCHSN: A88001-UP | 1 | Request quote | |||
| 7 | WRENCH,FILTERSN: A88001-UP | 1 | Request quote | |||
| 8 | GAUGE,TIRESN: A88001-UP | 1 | Request quote | |||
| 8 | GREASE PUMP ASS'YSN: A88001-UP | 1 | Request quote | |||
| 9 | PUMPSN: A88001-UP | 1 | Request quote | |||
| 10 | NOZZLESN: A88001-UP | 1 | Request quote | |||
| 11 | CARTRIDGE,GREASESN: A88001-UP | 1 | Request quote | |||
| 12 | BAG,TOOLSN: A88001-UP | 1 | Request quote | |||
| 13 | BAG,BILLSN: A88001-UP | 1 | Request quote | |||
| 14 | TAG,DO NOT OPERATESN: A88001-UP | 1 | Request quote | |||
| 15 | BARSN: A88001-UP | 1 | Request quote | |||
| 16 | GAUGE,THICKNESSSN: A88001-UP | 1 | Request quote | |||
| 17 | HAMMERSN: A88001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA180PT-3MC Wheel Loader Tool Parts
Use the Komatsu WA180PT-3MC Wheel Loader Tool Parts listing to identify aftermarket replacement parts within the accessory and tool section. This wheel loader application is listed for machine serial A88001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including wrench set (reference 09000-30006), socket wrench set (reference 09020-10284) and driver (reference 09033-00190). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
