Komatsu WA180PT-3MC Operator'S Cab (Mounting Parts) Parts
Komatsu WA180PT-3MC operator's cab (mounting parts) parts for machine serial A88001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Operator'S Cab (Mounting Parts).
Checking current purchase options...

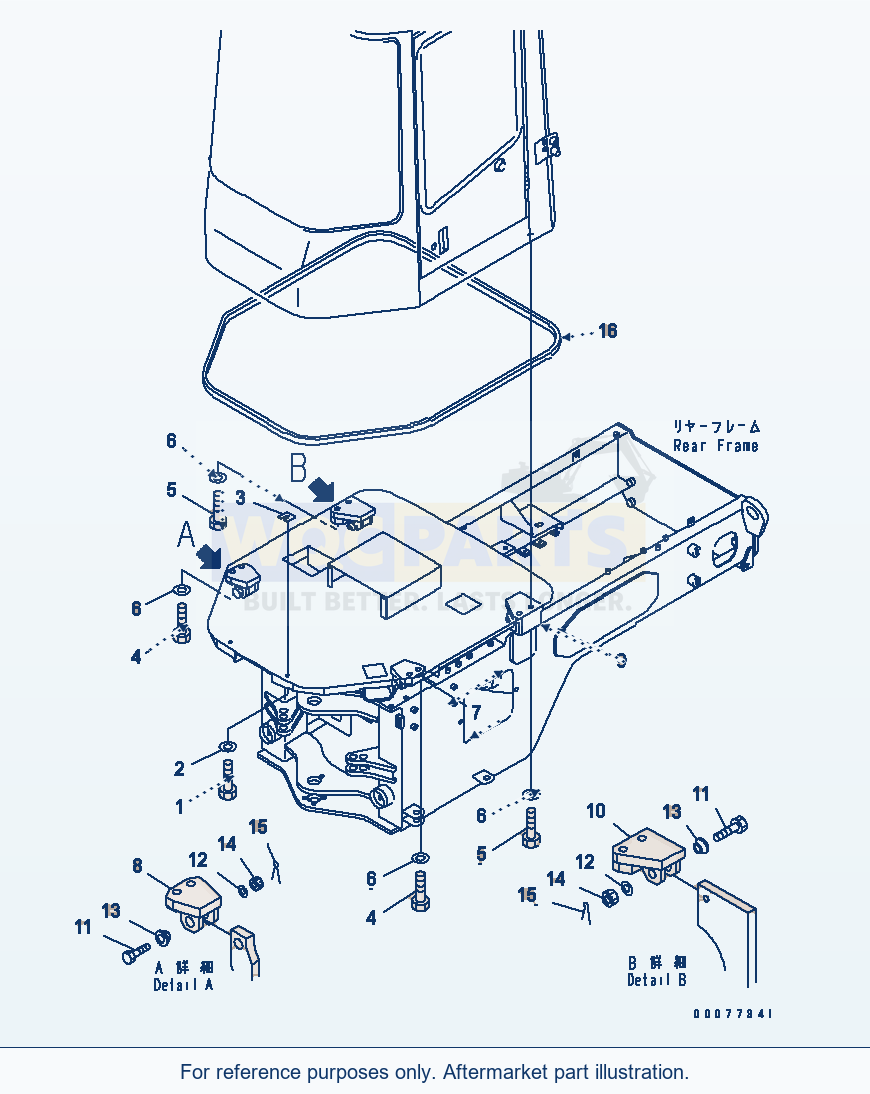

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOLTSN: A88001-UP | 2 | Request quote | |||
| 2 | WASHERSN: A88001-UP | 2 | View product ↗ | |||
| 3 | SHIM, 1.0MMSN: A88001-UP | 4 | Request quote | |||
| 4 | BOLTSN: A88001-UP | 4 | View product ↗ | |||
| 5 | BOLTSN: A88001-UP | 4 | View product ↗ | |||
| 6 | WASHERSN: A88001-UP | 8 | View product ↗ | |||
| 7 | BRACKET,L.H.SN: A88001-UP | 1 | Request quote | |||
| 8 | BRACKET,R.H.SN: A88001-UP | 1 | Request quote | |||
| 9 | BRACKET,L.H.SN: A88001-UP | 1 | Request quote | |||
| 10 | BRACKET,R.H.SN: A88001-UP | 1 | Request quote | |||
| 11 | BOLTSN: A88001-UP | 4 | Request quote | |||
| 12 | WASHERSN: A88001-UP | 4 | Request quote | |||
| 13 | COLLARSN: A88001-UP | 4 | Request quote | |||
| 14 | NUTSN: A88001-UP | 4 | Request quote | |||
| 15 | PIN,COTTERSN: A88001-UP | 4 | Request quote | |||
| 16 | SEALSN: A88001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
