Komatsu WA180PT-3MC Wheel Loader Transmission (Pump And Piping) Parts
Komatsu WA180PT-3MC transmission (pump and piping) parts for machine serial A88001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Transmission (Pump And Piping).
Checking current purchase options...

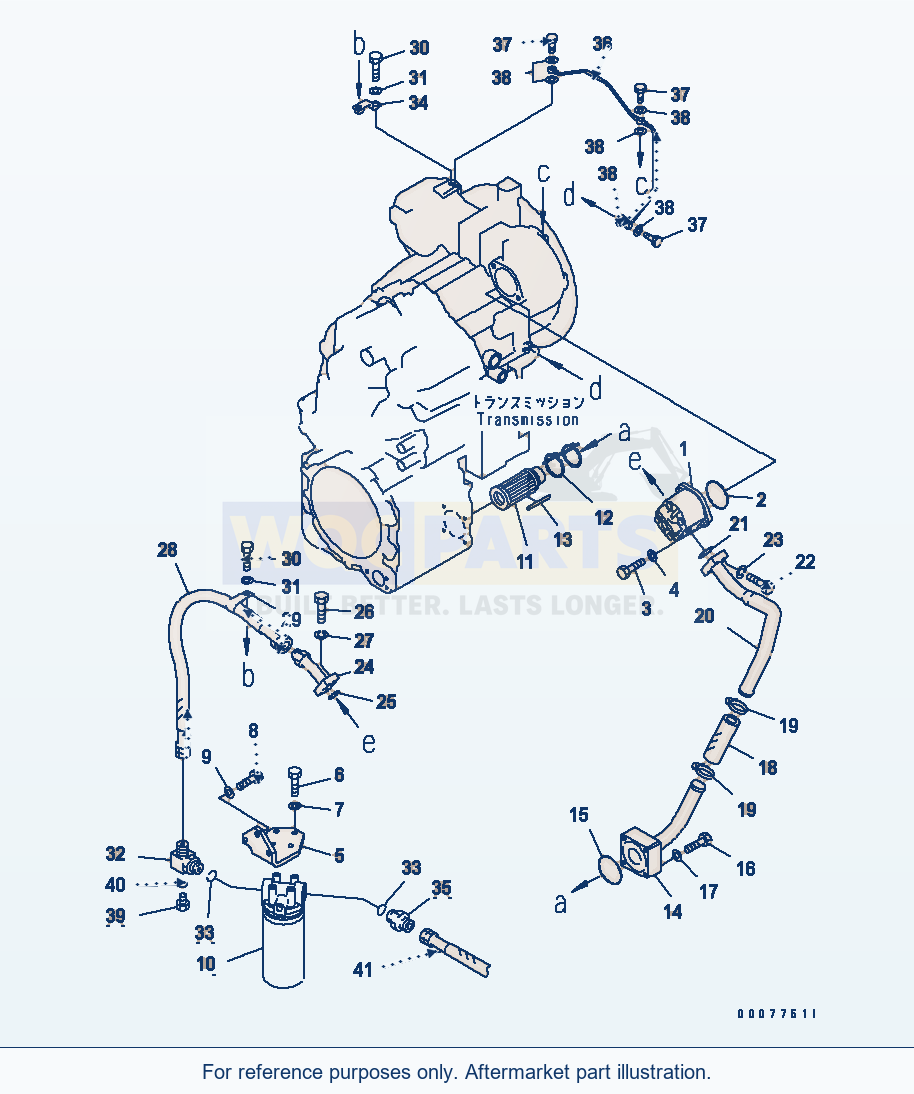

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 41 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | O-RINGSN: A88001-UP | 1 | View product ↗ | |||
| 3 | BOLTSN: A88001-UP | 2 | View product ↗ | |||
| 4 | WASHERSN: A88001-UP | 2 | View product ↗ | |||
| 5 | SUPPORTSN: A88001-UP | 1 | Request quote | |||
| 6 | BOLTSN: A88001-UP | 4 | Request quote | |||
| 7 | WASHERSN: A88001-UP | 4 | View product ↗ | |||
| 8 | BOLTSN: A88001-UP | 3 | View product ↗ | |||
| 9 | WASHERSN: A88001-UP | 3 | View product ↗ | |||
| 11 | FILTER ASS'YSN: A88001-UP | 1 | Request quote | |||
| 10 | CARTRIDGESN: A88001-UP | 1 | View product ↗ | |||
| 13 | STRAINER ASS'YSN: A88001-UP | 1 | Request quote | |||
| 11 | STRAINERSN: A88001-UP | 1 | View product ↗ | |||
| 12 | SPRING,SUPPORTSN: A88001-UP | 1 | Request quote | |||
| 13 | MAGNETSN: A88001-UP | 5 | Request quote | |||
| 14 | FLANGESN: A88001-UP | 1 | Request quote | |||
| 15 | O-RINGSN: A88001-UP | 1 | View product ↗ | |||
| 16 | BOLTSN: A88001-UP | 4 | Request quote | |||
| 17 | WASHERSN: A88001-UP | 4 | View product ↗ | |||
| 18 | HOSESN: A88001-UP | 1 | Request quote | |||
| 19 | CLAMPSN: A88001-UP | 2 | View product ↗ | |||
| 20 | TUBESN: A88001-UP | 1 | Request quote | |||
| 21 | O-RINGSN: A88001-UP | 1 | View product ↗ | |||
| 22 | BOLTSN: A88001-UP | 4 | Request quote | |||
| 23 | WASHER,SPRINGSN: A88001-UP | 4 | Request quote | |||
| 24 | TUBESN: A88001-UP | 1 | Request quote | |||
| 25 | O-RINGSN: A88001-UP | 1 | View product ↗ | |||
| 26 | BOLTSN: A88001-UP | 4 | Request quote | |||
| 27 | WASHER,SPRINGSN: A88001-UP | 4 | View product ↗ | |||
| 28 | HOSESN: A88001-UP | 1 | View product ↗ | |||
| 29 | CLIPSN: A88001-UP | 1 | Request quote | |||
| 30 | BOLTSN: A88001-UP | 2 | Request quote | |||
| 31 | WASHERSN: A88001-UP | 2 | View product ↗ | |||
| 32 | ELBOWSN: A88001-UP | 1 | Request quote | |||
| 33 | O-RINGSN: A88001-UP | 2 | View product ↗ | |||
| 34 | PLATESN: A88001-UP | 1 | Request quote | |||
| 35 | NIPPLESN: A88001-UP | 1 | Request quote | |||
| 36 | TUBESN: A88001-UP | 1 | Request quote | |||
| 37 | BOLT,JOINTSN: A88001-UP | 3 | View product ↗ | |||
| 38 | GASKETSN: A88001-UP | 6 | View product ↗ | |||
| 39 | PLUGSN: A88001-UP | 1 | View product ↗ | |||
| 40 | O-RINGSN: A88001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION ASS'Y,(SEE FIG. F4350-51A0)
TRANSMISSION ASS'Y,(SEE FIG. F4350-51A0)
PUMP ASS'Y,(SEE FIG. F4350-65A1)
HOSE,(SEE FIG. F4350-66A0)
Using Komatsu WA180PT-3MC Wheel Loader Transmission (Pump And Piping) Parts
Use the Komatsu WA180PT-3MC Wheel Loader Transmission (Pump And Piping) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial A88001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 41 listed part occurrences, including support (reference 714-11-18760), filter ass'y (reference 714-07-28701) and cartridge (reference 714-07-28711). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
