Komatsu WA200-1 Wheel Loader Rear Differential Serial 10001-UP Parts

Komatsu WA200-1 rear differential serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Drive Shaft, Differential And Wheels / Rear Differential.

WA200-1Machine serial 10001-UP60 part occurrences

Checking current purchase options...

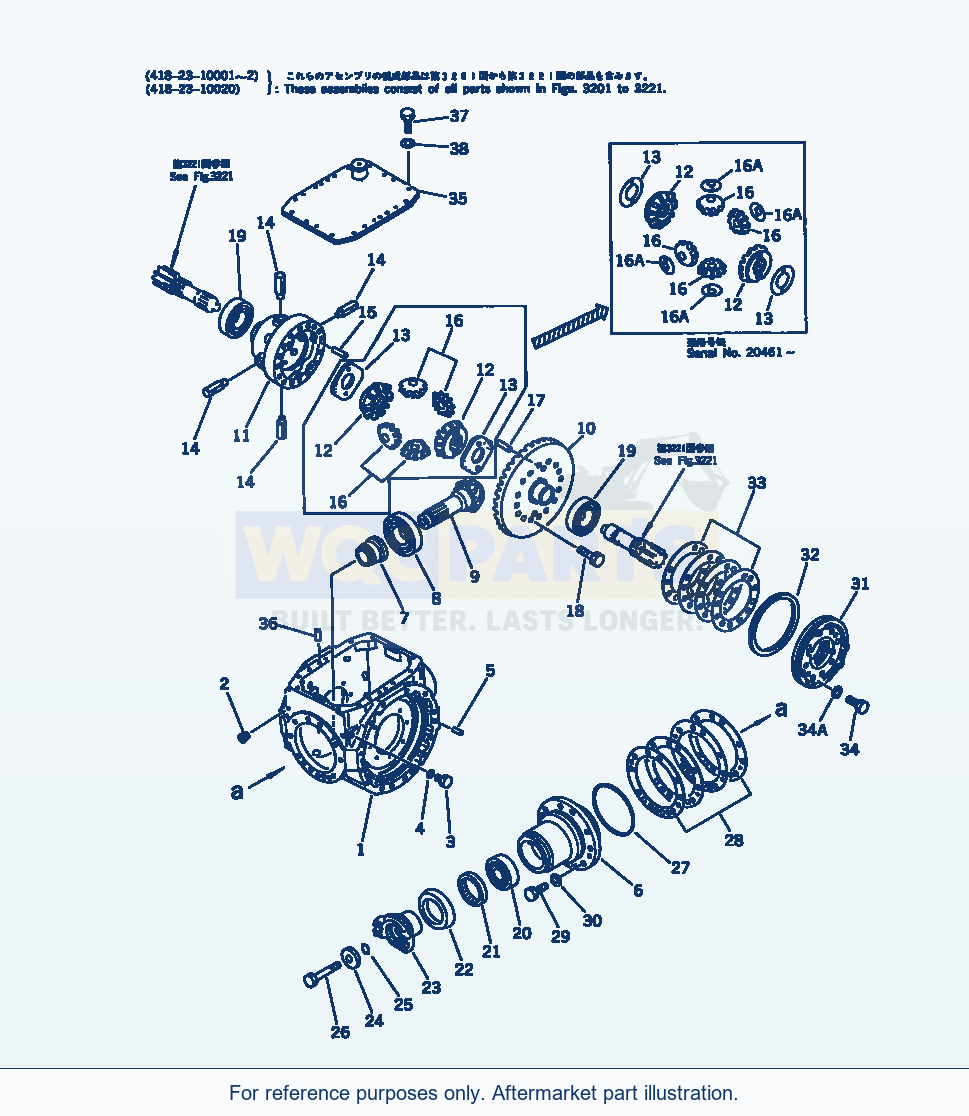

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 60 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	AXLE ASS'YSN: 30001-UP	1	Request quote
1	AXLE ASS'YSN: 20461-29999	1	Request quote
1	AXLE ASS'YSN: 20001-20460 \| The part specified in the line above can be used instead of this part	1	Request quote
1	AXLE ASS'YSN: 10001-19999	1	Request quote
1	DIFFERENTIAL ASS'Y,REARSN: 20461-UP	1	Request quote
1	DIFFERENTIAL ASS'Y,REARSN: 20001-20460	1	Request quote
1	DIFFERENTIAL ASS'Y,REARSN: 10001-19999	1	Request quote
1	HOUSINGSN: 10001-UP	1	Request quote
2	PLUGSN: 10001-UP	2	Request quote
3	PLUGSN: 10001-UP	2	View product ↗
4	O-RINGSN: 10001-UP	2	View product ↗
5	PIN,DOWELSN: 10001-UP	4	View product ↗
6	CAGESN: 10001-UP	1	Request quote
7	SPACERSN: 10001-UP	1	Request quote
8	BEARINGSN: 10001-UP	1	Request quote
9	PINION ASS'YSN: 20461-UP	1	Request quote
9	PINION ASS'YSN: 20001-20460	1	Request quote
9	PINION ASS'YSN: 10001-19999 \| The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set.	1	Request quote
11	CARRIERSN: 20461-UP	1	Request quote
11	CARRIERSN: 20001-20460	1	Request quote
11	CARRIERSN: 10001-19999 \| The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set.	1	Request quote
12	GEARSN: 10001-UP	2	Request quote
13	WASHERSN: 20461-UP	2	Request quote
13	WASHERSN: 10001-20460	2	Request quote
14	SHAFTSN: 20461-UP	4	Request quote
14	SHAFTSN: 10001-20460	4	Request quote
15	PINSN: 10001-UP	4	Request quote
16	PINIONSN: 10001-UP	4	Request quote
16A	WASHERSN: 20461-UP	4	Request quote
17	PIN,DOWELSN: 10001-19999	2	View product ↗
18	BOLTSN: 10001-UP	16	View product ↗
19	BEARINGSN: 10001-UP	2	Request quote
20	BEARINGSN: 10001-UP	1	Request quote
21	SEALSN: 10001-UP	1	View product ↗
22	PROTECTORSN: 10001-UP	1	Request quote
23	COUPLINGSN: 20001-UP	1	Request quote
23	COUPLINGSN: 10001-19999	1	Request quote
24	HOLDERSN: 10001-UP	1	Request quote
25	O-RINGSN: 10001-UP	1	View product ↗
26	BOLTSN: 10001-UP	1	Request quote
27	O-RINGSN: 10001-UP	1	View product ↗
28	SHIM, 0.05MMSN: 10001-UP	2	Request quote
28	SHIM, 0.2MMSN: 10001-UP	2	Request quote
28	SHIM, 0.3MMSN: 10001-UP	2	Request quote
28	SHIM, 0.8MMSN: 10001-UP	1	Request quote
29	BOLTSN: 10001-UP	13	Request quote
30	WASHERSN: 10001-UP	13	View product ↗
31	CARRIERSN: 20461-UP	2	Request quote
31	CARRIERSN: 10001-20460 \| The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set.	2	Request quote
32	RINGSN: 10001-UP	2	View product ↗
33	SHIM, 0.07MMSN: 10001-UP	2	Request quote
33	SHIM, 0.2MMSN: 10001-UP	2	Request quote
33	SHIM, 0.3MMSN: 10001-UP	2	Request quote
33	SHIM, 0.8MMSN: 10001-UP	2	Request quote
34	BOLTSN: 10001-UP	14	Request quote
34A	WASHERSN: 20461-UP	14	Request quote
35	COVERSN: 10001-UP	1	Request quote
36	PIN,DOWELSN: 10001-UP	2	View product ↗
37	BOLTSN: 10001-UP	16	Request quote
38	WASHERSN: 10001-UP	16	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
