Komatsu WA200-1 Air Cleaner And Mounting (Tunnel Spec.) Parts
Komatsu WA200-1 air cleaner and mounting (tunnel spec.) parts for machine serial 10001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 6D105-1Z S/N 62390-UP / Engine Cylinder Head / Air Cleaner And Mounting (Tunnel Spec.).
Checking current purchase options...

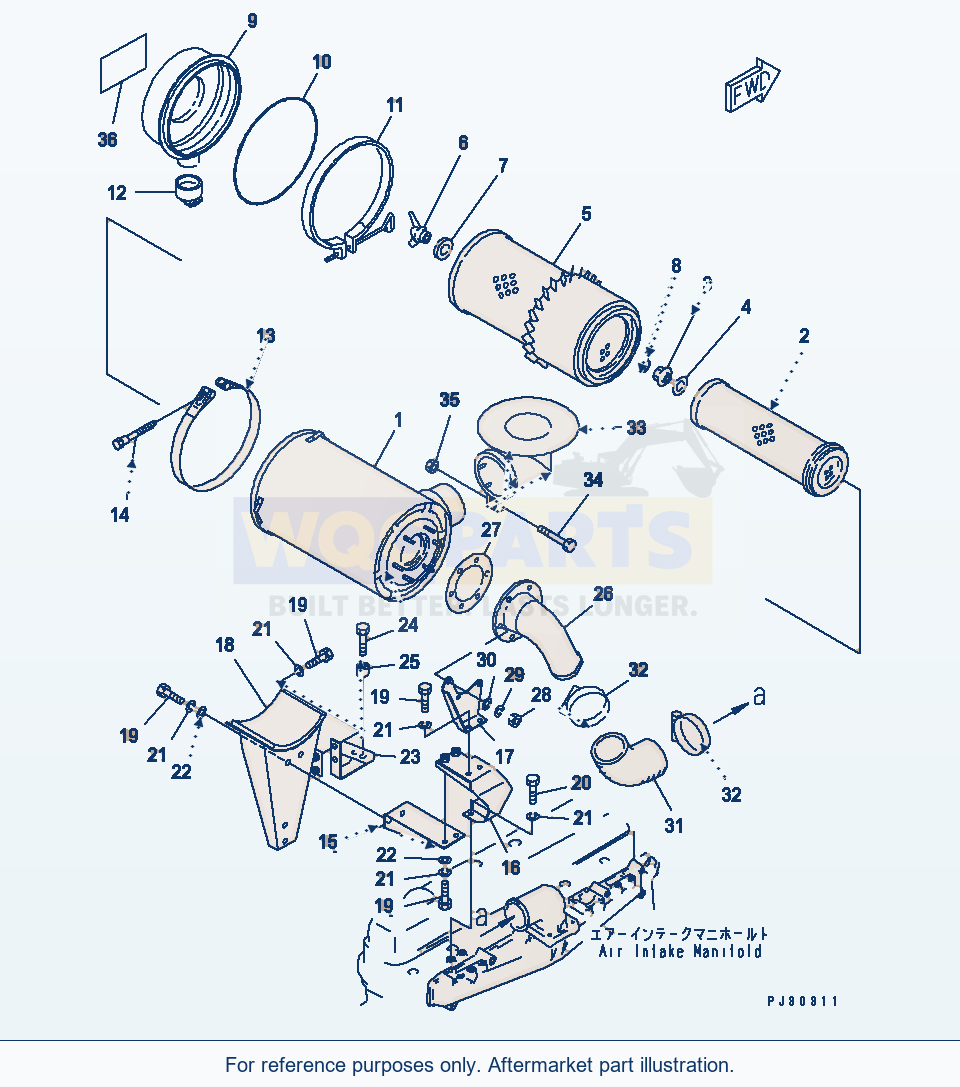

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | AIR CLEANER ASS'YSN: 62390-UP | 1 | Request quote | |||
| 1 | BODYSN: 62390-UP | 1 | Request quote | |||
| 2 | ELEMENT ASS'YSN: 62390-UP | 1 | Request quote | |||
| 3 | NUTSN: 62390-UP | 1 | View product ↗ | |||
| 4 | WASHER,SEALSN: 62390-UP | 1 | View product ↗ | |||
| 6 | ELEMENT ASS'Y,OUTERSN: 62390-UP | 1 | Request quote | |||
| 6 | NUT,WINGSN: 62390-UP | 1 | Request quote | |||
| 7 | WASHER,SEALSN: 62390-UP | 1 | View product ↗ | |||
| 8 | RING,SNAPSN: 62390-UP | 1 | Request quote | |||
| 9 | PAN,DUSTSN: 62390-UP | 1 | Request quote | |||
| 10 | O-RINGSN: 62390-UP | 1 | Request quote | |||
| 11 | CLAMPSN: 62390-UP | 1 | Request quote | |||
| 12 | VALVESN: 62390-UP | 1 | Request quote | |||
| 13 | BAND ASS'YSN: 62390-UP | 1 | Request quote | |||
| 13 | PINSN: 62390-UP | 1 | Request quote | |||
| 13 | PIN, WITH THREADSN: 62390-UP | 1 | Request quote | |||
| 14 | BOLTSN: 62390-UP | 1 | Request quote | |||
| 15 | BRACKETSN: 62390-UP | 1 | Request quote | |||
| 16 | BRACKETSN: 62390-UP | 1 | Request quote | |||
| 17 | BRACKETSN: 62390-UP | 1 | Request quote | |||
| 18 | BRACKETSN: 62390-UP | 1 | Request quote | |||
| 19 | BOLTSN: 62390-UP | 8 | View product ↗ | |||
| 20 | BOLTSN: 62390-UP | 2 | View product ↗ | |||
| 21 | WASHER,SPRINGSN: 62390-UP | 10 | View product ↗ | |||
| 22 | WASHERSN: 62390-UP | 4 | View product ↗ | |||
| 23 | BRACKETSN: 62390-UP | 1 | Request quote | |||
| 24 | BOLTSN: 62390-UP | 2 | View product ↗ | |||
| 25 | SPACERSN: 62390-UP | 2 | Request quote | |||
| 26 | CONNECTORSN: 62390-UP | 1 | Request quote | |||
| 27 | GASKET (K1)SN: 62390-UP | 1 | Request quote | |||
| 28 | NUTSN: 62390-UP | 6 | View product ↗ | |||
| 29 | WASHER,SPRINGSN: 62390-UP | 6 | View product ↗ | |||
| 30 | WASHERSN: 62390-UP | 6 | View product ↗ | |||
| 31 | HOSESN: 62390-UP | 1 | Request quote | |||
| 32 | CLAMPSN: 62390-UP | 2 | View product ↗ | |||
| 33 | PIPE ASS'YSN: 62390-UP | 1 | Request quote | |||
| 34 | BOLTSN: 62390-UP | 1 | Request quote | |||
| 35 | NUTSN: 62390-UP | 1 | View product ↗ | |||
| 36 | PLATE, INSTRUCTION,(JAPANESE-ENGLISH)SN: 62390-UP | 1 | Request quote | |||
| 36 | PLATE, INSTRUCTION,(RUSSIAN)SN: 75963-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: ELEMENT,INNER | QTY: 1 | OPTIONS: SN: 62390-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: ELEMENT,OUTER | QTY: 1 | OPTIONS: SN: 62390-UP
Using Komatsu WA200-1 Air Cleaner And Mounting (Tunnel Spec.) Parts
Use the Komatsu WA200-1 Air Cleaner And Mounting (Tunnel Spec.) Parts listing to identify aftermarket replacement parts within the engine cylinder head section. This wheel loader application is listed for machine serial 10001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 40 listed part occurrences, including air cleaner ass'y (reference 6136-81-7110), body (reference 6136-81-7200) and element ass'y (reference 6136-81-7010). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is 6D105-1Z (engine serial 62390-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-head and related engine parts, follow the applicability attached to the selected assembly. Gaskets, fasteners and other components must be checked by their listed references rather than assumed to interchange between engine versions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
