Komatsu WA200-1 Solenoid And Mounting(#62390-75882) Parts
Komatsu WA200-1 solenoid and mounting(#62390-75882) parts for machine serial 10001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 6D105-1Z S/N 62390-UP / Engine Fuel System / Solenoid And Mounting(#62390-75882).
Checking current purchase options...

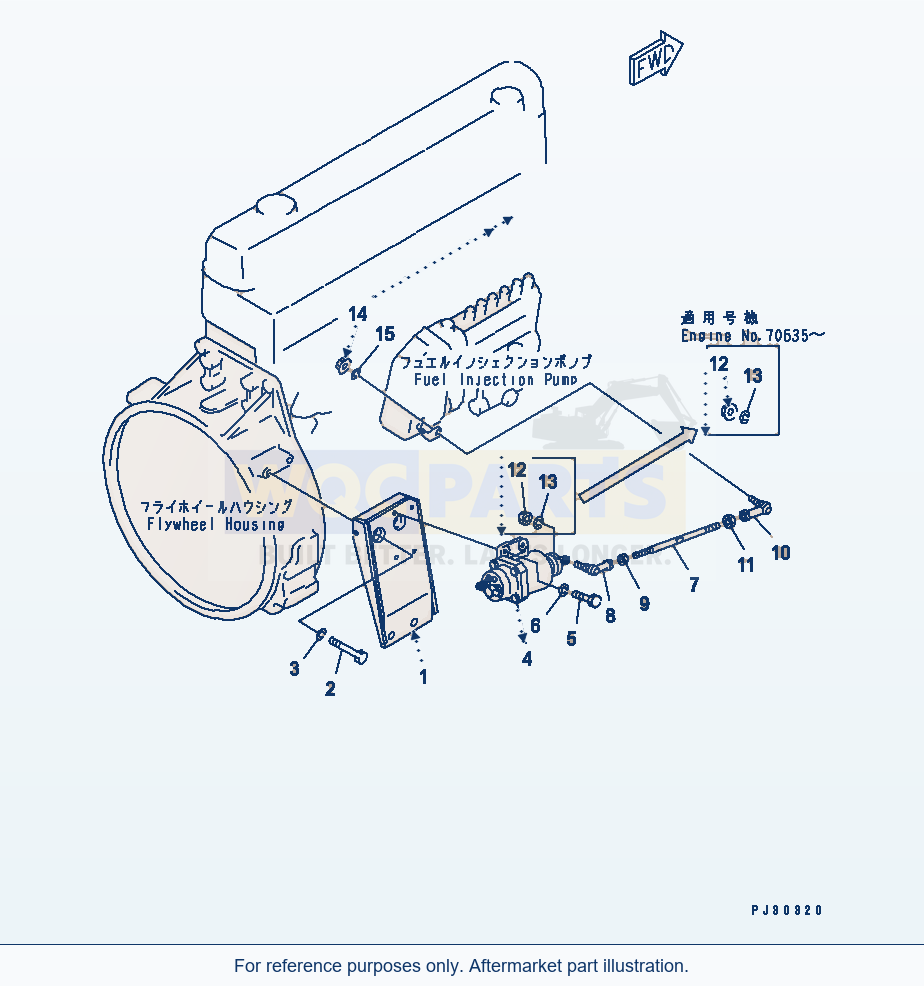

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BRACKETSN: 62390-@ | 1 | Request quote | |||
| 2 | BOLTSN: 62390-@ | 2 | View product ↗ | |||
| 3 | WASHER,SPRINGSN: 62390-@ | 2 | View product ↗ | |||
| 4 | SOLENOID ASS'YSN: 72515-@ | 1 | Request quote | |||
| 4 | SOLENOID ASS'YSN: 70635-72514 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 4 | SOLENOID ASS'YSN: 62390-70634 | 1 | Request quote | |||
| 5 | BOLTSN: 62390-@ | 4 | Request quote | |||
| 6 | WASHER,SPRINGSN: 62390-@ | 4 | View product ↗ | |||
| 8 | ROD ASS'YSN: 70635-75882 | 1 | Request quote | |||
| 9 | ROD ASS'YSN: 62390-70634 | 1 | Request quote | |||
| 7 | RODSN: 70635-75882 | 1 | Request quote | |||
| 7 | RODSN: 62390-70634 | 1 | Request quote | |||
| 8 | JOINTSN: 70635-75882 | 1 | Request quote | |||
| 8 | JOINTSN: 62390-70634 | 1 | Request quote | |||
| 9 | NUTSN: 70635-75882 | 1 | Request quote | |||
| 9 | NUTSN: 62390-70634 | 1 | Request quote | |||
| 10 | JOINT,BALL, L.H. THREADSN: 62390-75882 | 1 | Request quote | |||
| 11 | NUT, L.H. THREAD,L.H. THREADSN: 62390-75882 | 1 | Request quote | |||
| 12 | NUTSN: 70635-@ | 1 | Request quote | |||
| 12 | NUTSN: 62390-70634 | 1 | Request quote | |||
| 13 | WASHER,SPRINGSN: 70635-@ | 1 | View product ↗ | |||
| 13 | WASHER,SPRINGSN: 62390-70634 | 1 | Request quote | |||
| 14 | NUTSN: 62390-75882 | 1 | Request quote | |||
| 15 | WASHER,SPRINGSN: 62390-75882 | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200-1 Solenoid And Mounting(#62390-75882) Parts
Use the Komatsu WA200-1 Solenoid And Mounting(#62390-75882) Parts listing to identify aftermarket replacement parts within the engine fuel system section. This wheel loader application is listed for machine serial 10001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including bracket (reference 6136-71-8720), solenoid ass'y (reference 600-815-6121) and solenoid ass'y (reference 600-815-6190). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is 6D105-1Z (engine serial 62390-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
