Komatsu WA200-1 Console Box, R.H. (Tbg/Abe Sec.)(#10001-19999) Parts
Komatsu WA200-1 console box, r.h. (tbg/abe sec.)(#10001-19999) parts for machine serial 10001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Special Application Parts / Console Box, R.H. (Tbg/Abe Sec.)(#10001-19999).
Checking current purchase options...

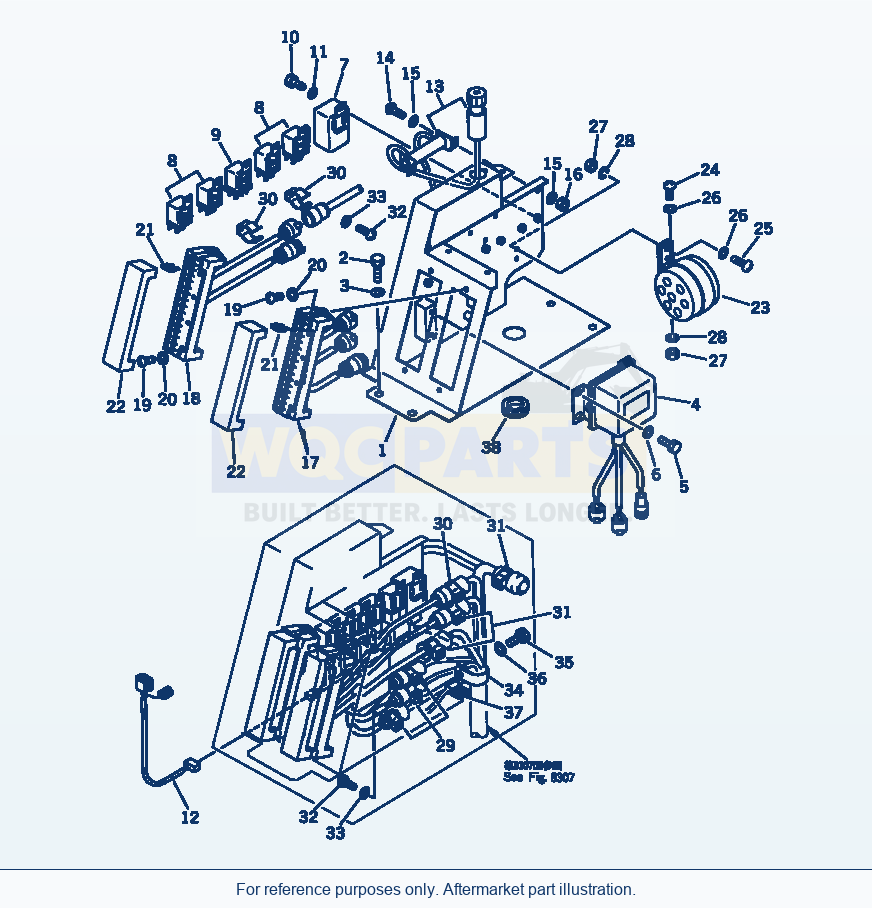

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOXSN: 10001-19999 | 1 | Request quote | |||
| 2 | BOLTSN: 10001-19999 | 4 | Request quote | |||
| 3 | WASHERSN: 10001-19999 | 4 | View product ↗ | |||
| 4 | CONTROLLER ASS'YSN: 10811-19999 | 1 | Request quote | |||
| 4 | CONTROLLER ASS'YSN: 10001-10810 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 5 | BOLTSN: 10001-19999 | 4 | View product ↗ | |||
| 6 | WASHERSN: 10001-19999 | 4 | View product ↗ | |||
| 7 | FLASHERSN: 10001-19999 | 1 | Request quote | |||
| 8 | RELAYSN: 10001-19999 | 4 | Request quote | |||
| 9 | RELAY,WORK LAMPSN: 10001-19999 | 1 | View product ↗ | |||
| 10 | BOLTSN: 10001-19999 | 6 | View product ↗ | |||
| 11 | WASHERSN: 10001-19999 | 6 | View product ↗ | |||
| 12 | WIRE ASS'YSN: 10001-19999 | 1 | Request quote | |||
| 13 | LIGHTERSN: 10001-19999 | 1 | Request quote | |||
| 14 | SCREWSN: 10001-19999 | 2 | Request quote | |||
| 15 | WASHERSN: 10001-19999 | 4 | Request quote | |||
| 16 | NUTSN: 10001-19999 | 2 | Request quote | |||
| 17 | BOX ASS'YSN: 10001-19999 | 1 | Request quote | |||
| 18 | BOX ASS'YSN: 10001-19999 | 1 | Request quote | |||
| 19 | SCREWSN: 10001-19999 | 4 | Request quote | |||
| 20 | WASHERSN: 10001-19999 | 4 | View product ↗ | |||
| 21 | FUSE, 10ASN: 10001-19999 | 22 | View product ↗ | |||
| 21 | FUSE, 20ASN: 10001-19999 | 5 | View product ↗ | |||
| 22 | COVERSN: 10001-19999 | 2 | Request quote | |||
| 23 | BUZZERSN: 10001-19999 | 1 | Request quote | |||
| 24 | SCREWSN: 10001-19999 | 1 | Request quote | |||
| 25 | SCREWSN: 10001-19999 | 2 | Request quote | |||
| 26 | WASHERSN: 10001-19999 | 3 | View product ↗ | |||
| 27 | NUTSN: 10001-19999 | 3 | Request quote | |||
| 28 | WASHER,SPRINGSN: 10001-19999 | 3 | Request quote | |||
| 29 | CLIPSN: 10001-19999 | 3 | Request quote | |||
| 30 | CLIPSN: 10001-19999 | 3 | Request quote | |||
| 31 | CLIPSN: 10001-19999 | 3 | Request quote | |||
| 32 | SCREWSN: 10001-19999 | 9 | Request quote | |||
| 33 | WASHERSN: 10001-19999 | 9 | View product ↗ | |||
| 34 | CLIPSN: 10001-19999 | 1 | Request quote | |||
| 35 | BOLTSN: 10001-19999 | 1 | Request quote | |||
| 36 | WASHERSN: 10001-19999 | 1 | View product ↗ | |||
| 37 | CLIPSN: 10001-19999 | 1 | View product ↗ | |||
| 38 | GROMMETSN: 10001-19999 | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200-1 Console Box, R.H. (Tbg/Abe Sec.)(#10001-19999) Parts
Use the Komatsu WA200-1 Console Box, R.H. (Tbg/Abe Sec.)(#10001-19999) Parts listing to identify aftermarket replacement parts within the special application parts section. This wheel loader application is listed for machine serial 10001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 40 listed part occurrences, including box (reference 419-06-11131), controller ass'y (reference 7861-72-3000) and controller ass'y (reference 7861-01-3000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
