Work Equipment Control System

Komatsu WA200-1 Wheel Loader Work Equipment Control Lever Parts

Komatsu WA200-1 work equipment control lever parts for machine serial 10001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Work Equipment Control System / Work Equipment Control Lever.

WA200-1Machine serial 10001-UP (OVERSEAS VERSION)38 part occurrences

Checking current purchase options...

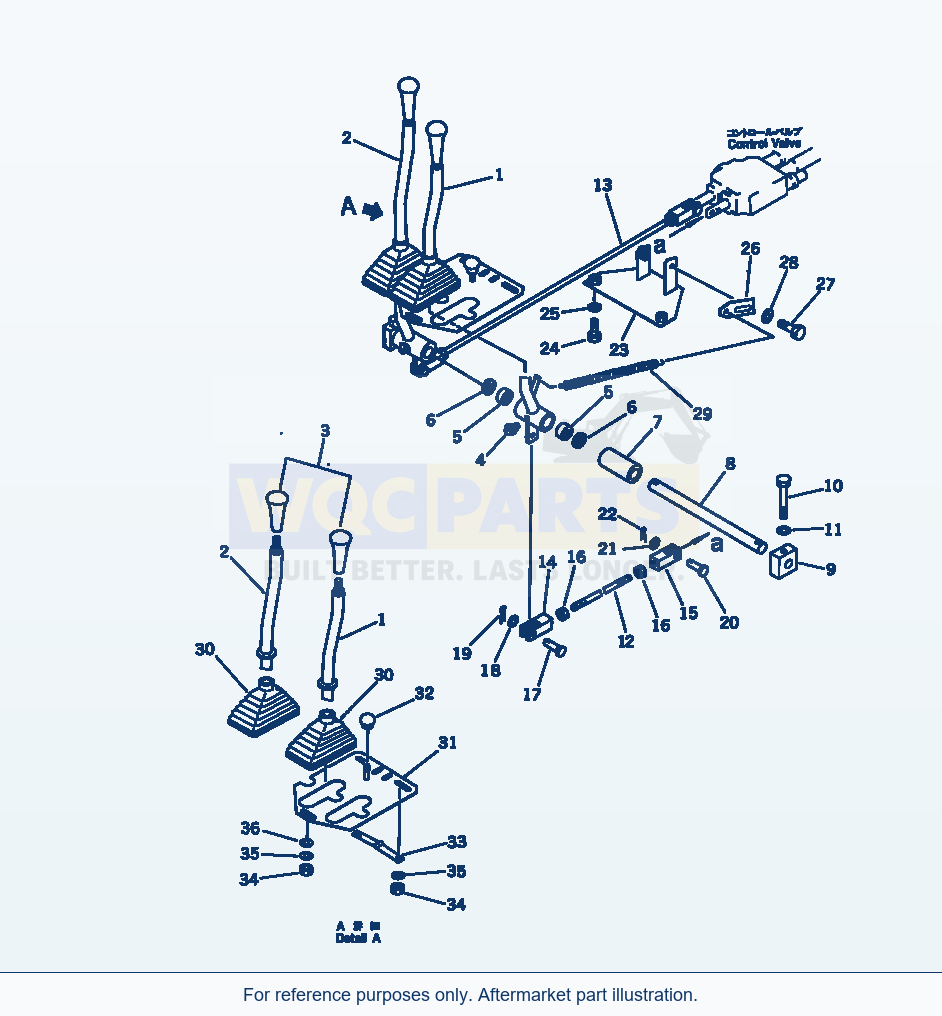

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 38 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	LEVER ASS'Y,BUCKETSN: 20001-UP	1	Request quote
1	LEVER,BUCKETSN: 10001-19999	1	Request quote
2	LEVER,LIFT ARMSN: 10001-UP	1	Request quote
3	KNOBSN: 10001-UP	2	View product ↗
4	FITTING,GREASESN: 10001-UP	2	View product ↗
5	BEARINGSN: 10001-UP	4	View product ↗
6	SEAL,BEARINGSN: 10001-UP	4	View product ↗
7	SPACERSN: 10001-UP	1	Request quote
8	PINSN: 10001-UP	1	Request quote
9	PLATESN: 10001-UP	2	Request quote
10	BOLTSN: .-UP	2	Request quote
10	BOLTSN: 10001-. \| The part specified in the line above can be used instead of this part	2	Request quote
11	WASHERSN: 10001-.	2	View product ↗
12	RODSN: 10001-UP	1	Request quote
13	RODSN: 10001-UP	1	Request quote
14	YOKESN: 10001-UP	2	Request quote
15	YOKESN: 10001-UP	2	Request quote
16	NUTSN: 10001-UP	4	View product ↗
17	PINSN: 10001-UP	2	Request quote
18	WASHERSN: 10001-UP	2	View product ↗
19	PIN,COTTERSN: 10001-UP	2	View product ↗
20	PINSN: 10001-UP	2	Request quote
21	WASHERSN: 10001-UP	2	View product ↗
22	PIN,COTTERSN: 10001-UP	2	Request quote
23	BRACKETSN: 10001-19999	1	Request quote
24	BOLTSN: 10001-19999	2	Request quote
25	WASHERSN: 10001-19999	2	View product ↗
26	PLATESN: 10001-19999	1	Request quote
27	BOLTSN: 10001-19999	1	Request quote
28	WASHERSN: 10001-19999	1	View product ↗
29	SPRINGSN: 10001-UP	2	Request quote
30	BOOTSN: 10001-UP	2	View product ↗
31	PLATESN: 10001-UP	1	Request quote
32	KNOBSN: 10001-UP	1	Request quote
33	SPRINGSN: 10001-UP	1	Request quote
34	NUTSN: 10001-UP	3	Request quote
35	WASHERSN: 10001-UP	3	View product ↗
36	WASHERSN: 10001-UP	1	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
