Komatsu WA200-1 Wheel Loader Log Grapple Serial 10001-UP Parts

Komatsu WA200-1 log grapple serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Work Equipment / Log Grapple.

WA200-1Machine serial 10001-UP45 part occurrences

Checking current purchase options...

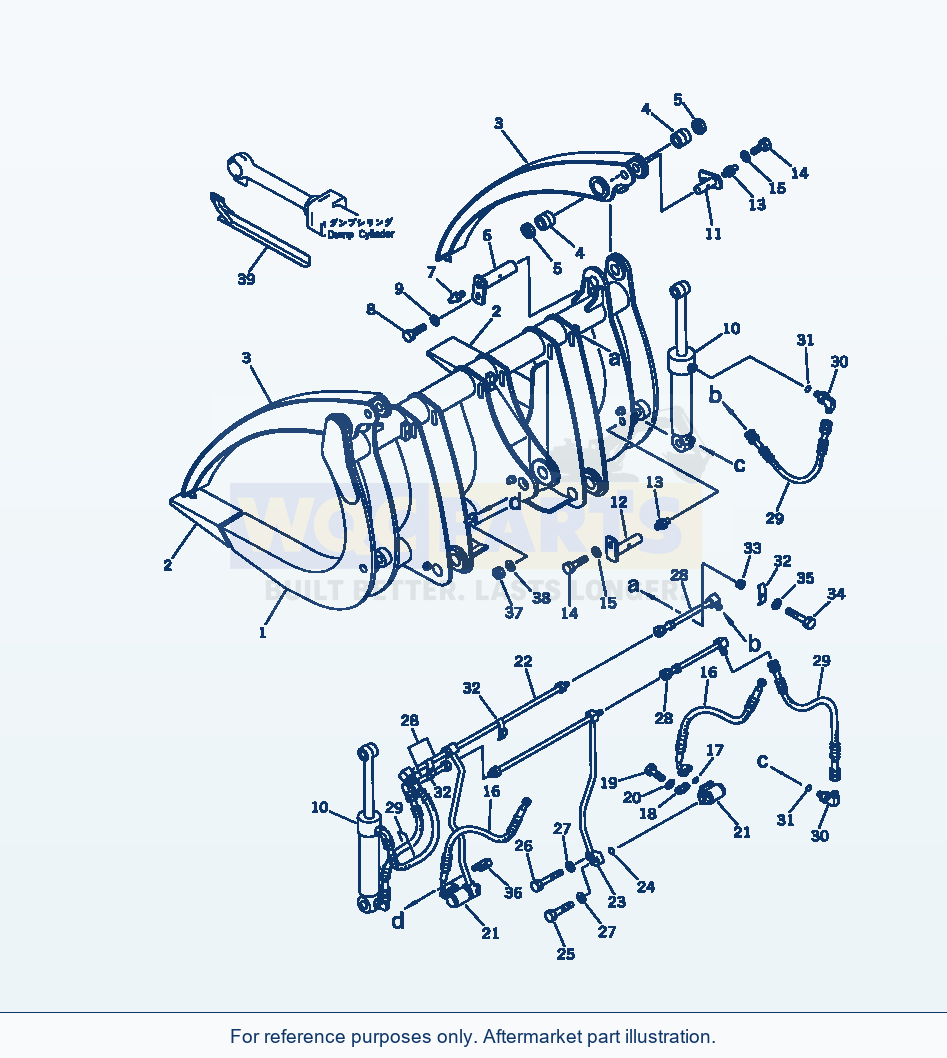

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 45 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	CARRIERSN: .-UP	1	Request quote
1	CARRIERSN: 10001-. \| The part specified in the line above can be used instead of this part	1	Request quote
2	FORK (WELDED)SN: 10001-UP	1	Request quote
3	ARM ASS'YSN: 10001-UP	1	Request quote
3	ARMSN: 10001-UP	2	Request quote
4	BUSHINGSN: 10001-UP	4	View product ↗
5	SEAL,DUSTSN: 10001-UP	4	View product ↗
6	PINSN: 10001-UP	2	Request quote
7	FITTING,GREASESN: 10001-UP	2	View product ↗
8	BOLTSN: 10001-UP	2	Request quote
9	WASHERSN: 10001-UP	2	View product ↗
10	CYLINDER ASS'YSN: 10001-UP	2	Request quote
11	PINSN: 10001-UP	2	Request quote
12	PINSN: 10001-UP	2	Request quote
13	FITTING,GREASESN: 10001-UP	4	View product ↗
14	BOLTSN: 10001-UP	4	Request quote
15	WASHERSN: 10001-UP	4	View product ↗
16	HOSESN: 10001-UP	2	Request quote
17	O-RINGSN: 10001-UP	2	Request quote
18	FLANGE,SPLITSN: 10001-UP	4	Request quote
19	BOLTSN: 10001-UP	8	Request quote
20	WASHERSN: 10001-UP	8	View product ↗
21	JOINTSN: .-UP	2	Request quote
21	JOINTSN: 10001-.	2	Request quote
22	TUBE,L.H.SN: 10001-UP	1	Request quote
23	TUBE,R.H.SN: 10001-UP	1	Request quote
24	O-RINGSN: 10001-UP	2	View product ↗
25	BOLTSN: 10001-UP	4	Request quote
26	BOLTSN: 10001-UP	4	Request quote
27	WASHERSN: 10001-UP	8	View product ↗
28	TUBESN: 10001-UP	4	Request quote
29	HOSESN: 10001-UP	4	Request quote
30	ELBOWSN: 10001-UP	4	View product ↗
31	O-RINGSN: 10001-UP	4	View product ↗
32	CLAMPSN: 10001-UP	3	Request quote
33	SPACERSN: 10001-UP	3	Request quote
34	BOLTSN: 10001-UP	3	View product ↗
35	WASHERSN: 10001-UP	3	View product ↗
36	CLIPSN: 10001-UP	2	Request quote
37	NUTSN: 10001-UP	4	Request quote
38	WASHERSN: 10001-UP	4	View product ↗
39	PLATESN: .-UP	1	Request quote
39	PLATESN: 10001-. \| The part specified in the line above can be used instead of this part	1	Request quote
40	PLATE, OPERATING,(NOT SHOWN)SN: 10001-UP	1	Request quote
41	BOLTSN: .-UP	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA200-1 Wheel Loader Log Grapple Serial 10001-UP Parts

Use the Komatsu WA200-1 Wheel Loader Log Grapple Serial 10001-UP Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 45 listed part occurrences, including carrier (reference 418-880-1111), carrier (reference 418-880-1110) and fork (welded) (reference 419-880-1120). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
