Komatsu WA200-3-SN 2-Persons Cab (Door Lock L.H.)(#64001-) Parts
Komatsu WA200-3-SN 2-persons cab (door lock l.h.)(#64001-) parts for machine serial S/N 63001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operatior'S Compartment And Control System / 2-Persons Cab (Door Lock L.H.)(#64001-).
Checking current purchase options...

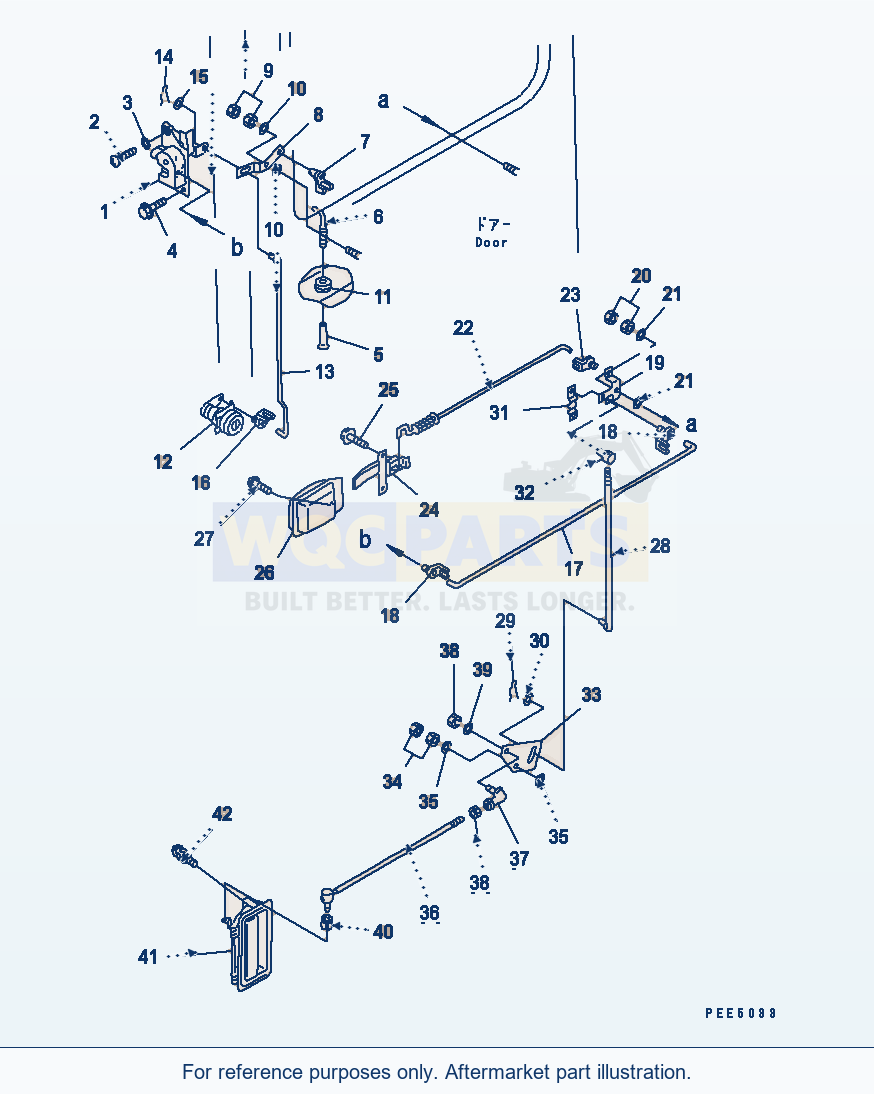

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 51 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CAB ASS'Y,(AM RADIO)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM/FM RADIO)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM RADIO, HEAT WIRE F.C.)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM/FM RADIO, HEAT WIRE F.C.)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM RADIO, HEAT WIRE)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM/FM RADIO, HEAT WIRE)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM RADIO, LAMINATED GLASS)SN: 64001-UP | 1 | Request quote | |||
| 1 | CAB ASS'Y,(AM/FM RADIO, LAMINATED GLASS)SN: 64001-UP | 1 | Request quote | |||
| 1 | DOOR ASS'Y,L.H.SN: 64001-UP | 1 | Request quote | |||
| 1 | LOCK,L.H.SN: 64001-UP | 1 | Request quote | |||
| 2 | SCREWSN: 64001-UP | 1 | Request quote | |||
| 3 | WASHERSN: 64001-UP | 1 | Request quote | |||
| 4 | BOLTSN: 64001-UP | 2 | Request quote | |||
| 5 | KNOBSN: 64001-UP | 1 | Request quote | |||
| 6 | RODSN: 64001-UP | 1 | Request quote | |||
| 7 | HOOKSN: 64001-UP | 1 | Request quote | |||
| 8 | LEVER,L.H.SN: 64001-UP | 1 | Request quote | |||
| 9 | NUTSN: 64001-UP | 2 | Request quote | |||
| 10 | WASHERSN: 64001-UP | 2 | View product ↗ | |||
| 11 | GROMMETSN: 64001-UP | 1 | View product ↗ | |||
| 12 | LOCK ASS'YSN: 64001-UP | 1 | Request quote | |||
| 13 | RODSN: 64001-UP | 1 | Request quote | |||
| 14 | PINSN: 64001-UP | 1 | Request quote | |||
| 15 | WASHERSN: 64001-UP | 1 | Request quote | |||
| 16 | HOOKSN: 64001-UP | 1 | Request quote | |||
| 17 | RODSN: 64001-UP | 1 | Request quote | |||
| 18 | HOOKSN: 64001-UP | 2 | Request quote | |||
| 19 | LEVERSN: 64001-UP | 1 | Request quote | |||
| 20 | NUTSN: 64001-UP | 2 | Request quote | |||
| 21 | WASHERSN: 64001-UP | 2 | View product ↗ | |||
| 22 | ROD,L.H.SN: 64001-UP | 1 | Request quote | |||
| 23 | HOOKSN: 64001-UP | 1 | Request quote | |||
| 24 | HANDLE,L.H.SN: 64001-UP | 1 | View product ↗ | |||
| 25 | BOLTSN: 64001-UP | 2 | Request quote | |||
| 26 | COVERSN: 64001-UP | 1 | Request quote | |||
| 27 | SCREWSN: 64001-UP | 1 | Request quote | |||
| 28 | RODSN: 64001-UP | 1 | Request quote | |||
| 29 | PINSN: 64001-UP | 1 | Request quote | |||
| 30 | WASHERSN: 64001-UP | 1 | Request quote | |||
| 31 | SPRINGSN: 64001-UP | 1 | Request quote | |||
| 32 | PINSN: 64001-UP | 1 | Request quote | |||
| 33 | LEVERSN: 64001-UP | 1 | Request quote | |||
| 34 | NUTSN: 64001-UP | 2 | Request quote | |||
| 35 | WASHERSN: 64001-UP | 2 | View product ↗ | |||
| 36 | RODSN: 64001-UP | 1 | Request quote | |||
| 37 | JOINTSN: 64001-UP | 1 | View product ↗ | |||
| 38 | NUTSN: 64001-UP | 2 | Request quote | |||
| 39 | WASHERSN: 64001-UP | 1 | View product ↗ | |||
| 40 | BUSHINGSN: 64001-UP | 1 | Request quote | |||
| 41 | HANDLE,OUTERSN: 64001-UP | 1 | Request quote | |||
| 42 | SCREWSN: 64001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-31B1 TO K0210-45B2.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-37B1 TO K0210-39B1.
